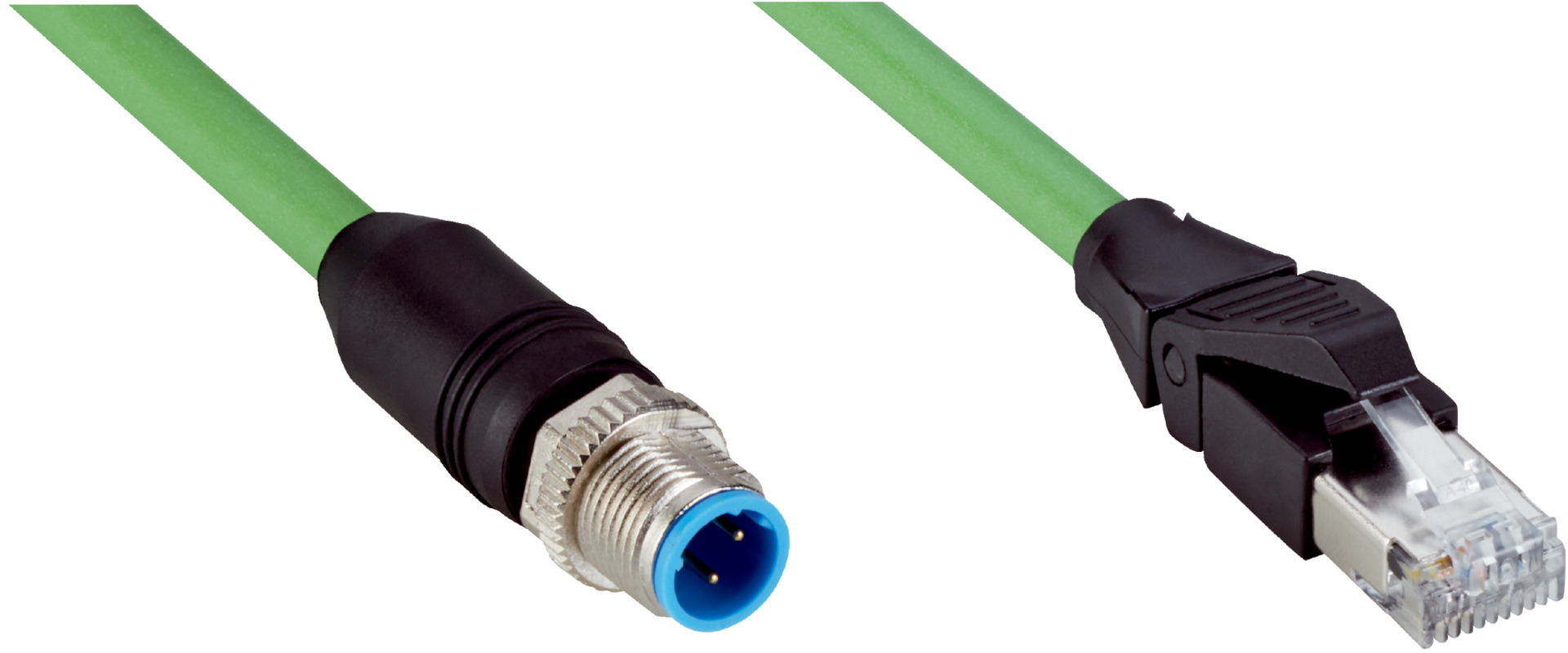

PROFINET Ethernet Cable | M12 to RJ45 | Shielded & Halogen-Free | IP67 Rated | by SICK
The PROFINET Ethernet cable is designed for industrial automation, featuring a robust M12 to RJ45 connection with a shielded, halogen-free PUR jacket. Ideal for drag chain operations and harsh environments, it supports data transmission rates up to 0.1 Gbit/s and operates in temperatures from -40 °C to +85 °C. With an IP67 rating for the M12 connector, this cable ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Locking plug connector: Screw-on connection (M12), snap-in locking (RJ45)
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 25 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30 °C to +70 °C, Stationary position -40 °C to +80 °C, Drag chain operation -30 °C to +70 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 25000mm x 13mm
- Weight: 0.3 kg
Key Features
- Male M12 4-pin straight D-coded connector and male RJ45 4-pin straight connector
- Screw-on connection for M12 and snap-in locking for RJ45
- Cable jacket made of halogen-free PUR material, green color
- Shielded cable with 0.34 mm² conductor cross section
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP67 rated enclosure for M12 connector and IP20 for RJ45 connector
- Supports Ethernet PROFINET with CAT5e transmission characteristics
- Data transmission rate up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation in industrial automation
- Zones with oils and lubricants requiring robust Ethernet connections
- PROFINET data transmission in harsh environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design extends product life and reduces waste
- Flame retardant properties enhance safety and environmental protection
Warranty Information
Warranty details available upon request from manufacturer.
Available Now

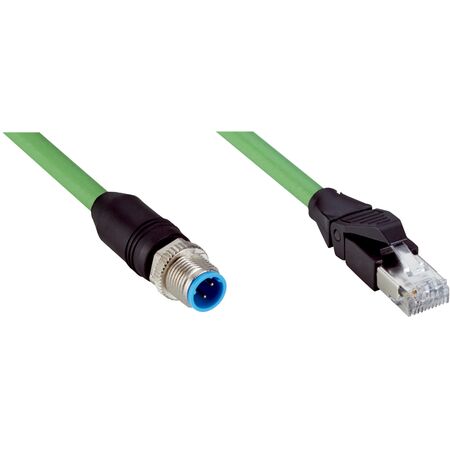

The SICK YM2D24-250PN1MRJA4 Ethernet PROFINET cable is available for immediate purchase, ideal for industrial automation and drag chain applications.
