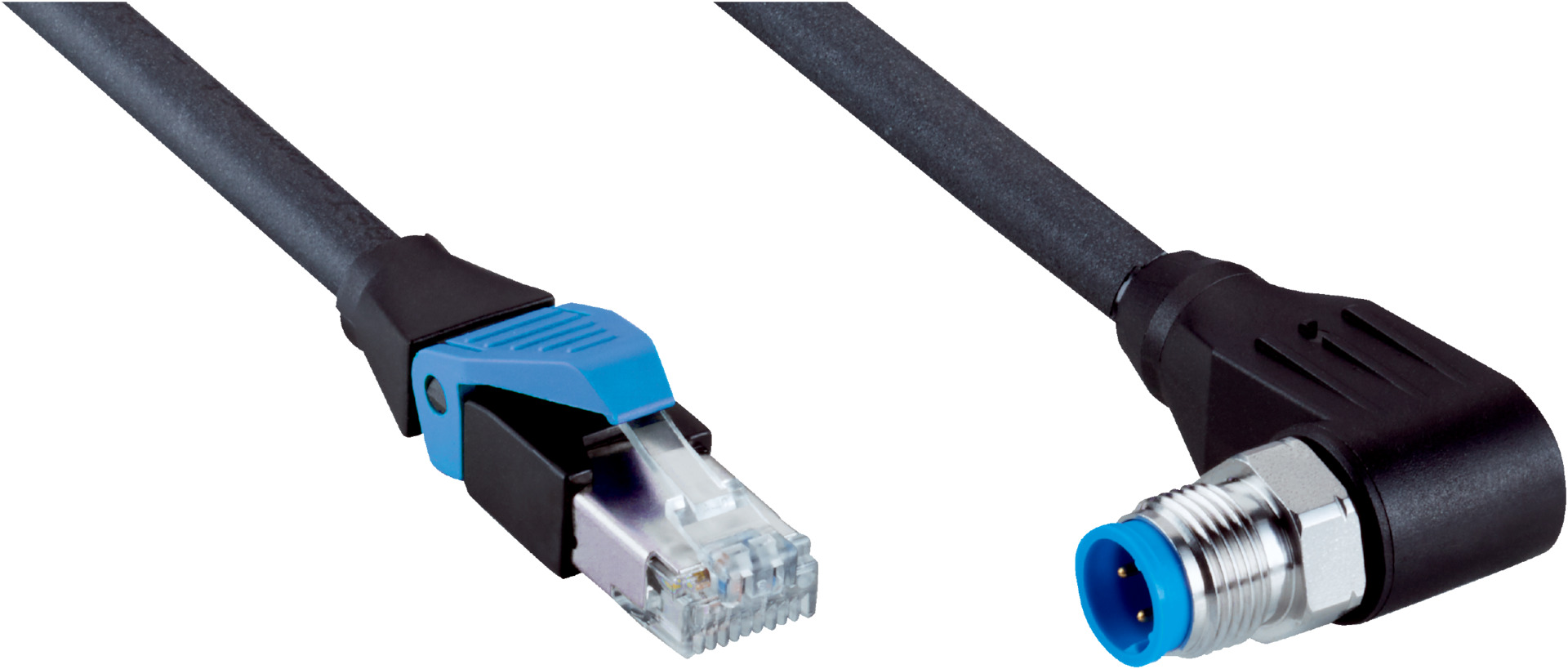

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5e | IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for robust industrial communication, featuring a male M12 connector and a straight RJ45 connector. With a shielded CAT5e construction and an IP67 rating at the M12 end, this cable ensures reliable data transmission in harsh environments, making it ideal for outdoor applications and areas exposed to oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, angled, D-coded
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Cable length: 2 m
- Cable type: 4-wire, CAT5e, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 2 x 2 x 0.34 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Data transmission rate: ≤ 100 Mbit/s
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Operating temperature: -40 °C to +85 °C
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending cycles: 3,000,000
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector M12, 4-pin, angled, D-coded
- Male connector RJ45, 4-pin, straight
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket for enhanced safety
- High bending radius for flexible use and durability
- IP67 rated at M12 connector for dust and water protection
- Operating temperature range from -40°C to +85°C
- Flame retardant cable according to UL 1581 and IEC 60332-1-2
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Outdoor zones with exposure to oils and lubricants
- Seawater resistant environments
- Cold bending resistant applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

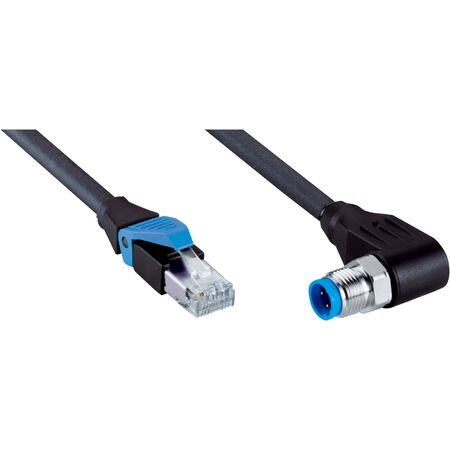

The SICK YN2D34-020PN4MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial and outdoor communication applications.
