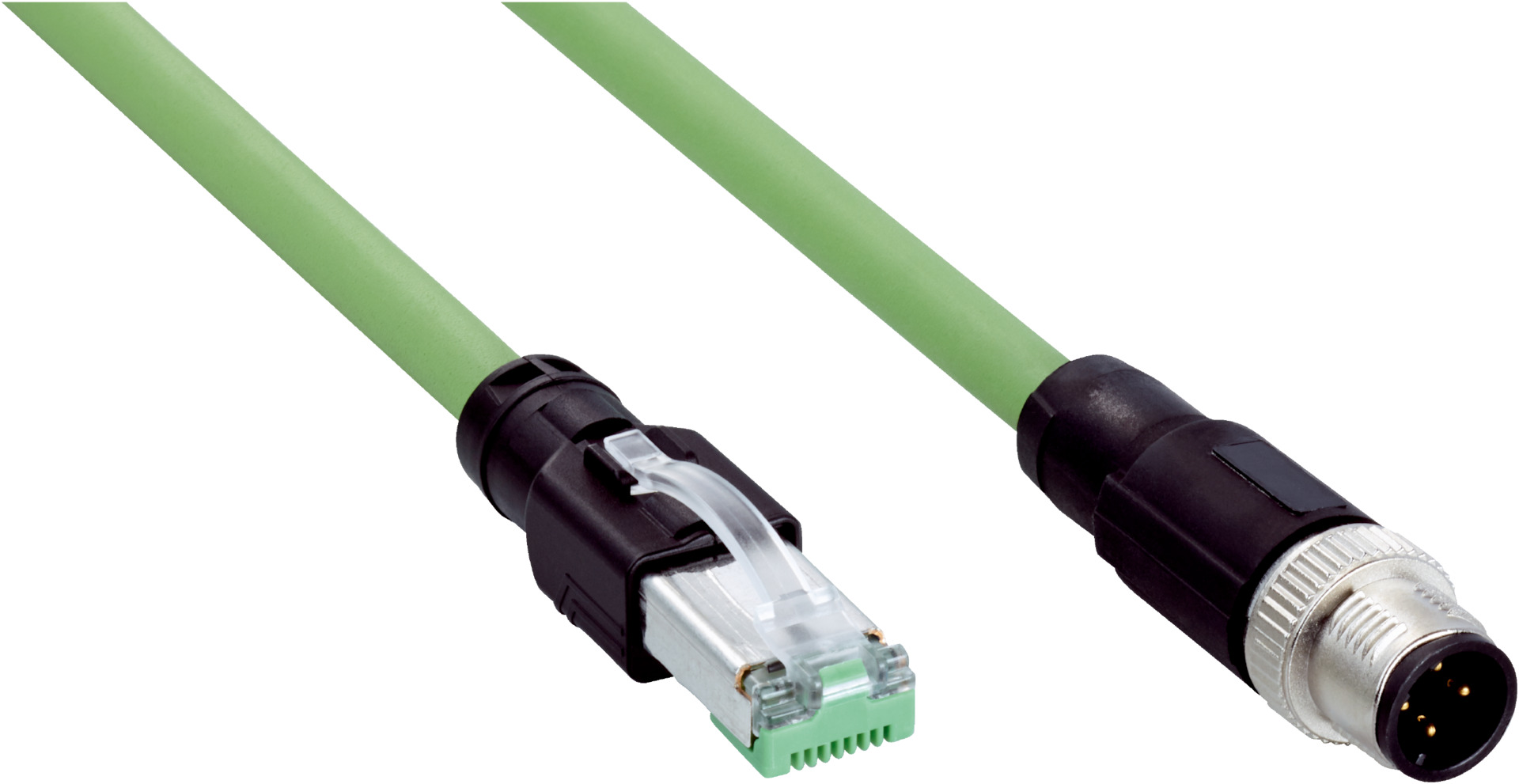

PROFINET Ethernet Cable | M12 to RJ45 | Shielded CAT5 | IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring a male M12 4-pin D-coded connector and a male RJ45 8-pin connector. With a shielded CAT5 construction and a halogen-free PUR jacket, it ensures reliable data transmission in harsh environments. Ideal for machine networking and robotics, this cable operates in temperatures from -40°C to +80°C, providing durability and robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.4 Nm
- Cable length: 5 m
- Cable type: 4-wire, CAT5, CAT5e, PUR, halogen-free
- Jacket color: Green
- Cable diameter: 6.5 mm
- Conductor cross section: 4 x 0.34 mm²
- Shielding: Shielded
- Bending radius: > 5 x cable diameter for flexible use and stationary position
- Operating temperature: -40°C to +80°C (flexible and stationary), Head: -25°C to +80°C
- Reference voltage: ≤ 50 V
- Current loading: 1 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Torsion force: ± 180°
- Torsion cycles: 1,000,000
- Enclosure rating: IP67 (M12), IP20 (RJ45)
- Dimensions (H x L x W): 6.5mm x 5000mm x 6.5mm
- Weight: 0.2 kg
Key Features
- Male M12 4-pin D-coded connector and male RJ45 8-pin connector
- Shielded CAT5 cable with PUR halogen-free jacket
- High durability with 1,000,000 torsion cycles and ±180° torsion force
- IP67 rated at M12 connector for robust environmental protection
- Operating temperature range from -40°C to +80°C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation and robotics
- Ethernet and PROFINET data transmission in zones with oils and lubricants
- Machine and factory networking requiring shielded CAT5 cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacements and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

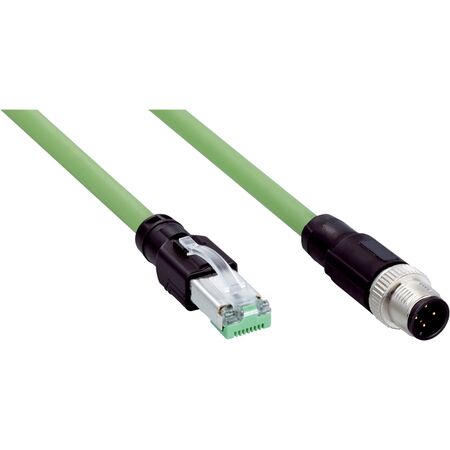

The SICK SSL-2J04-G05MR Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and networking applications requiring robust and reliable data transmission.
