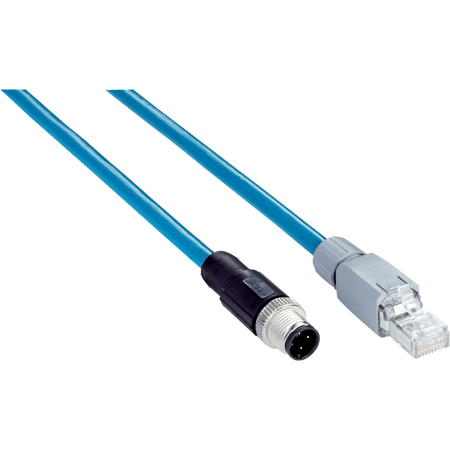

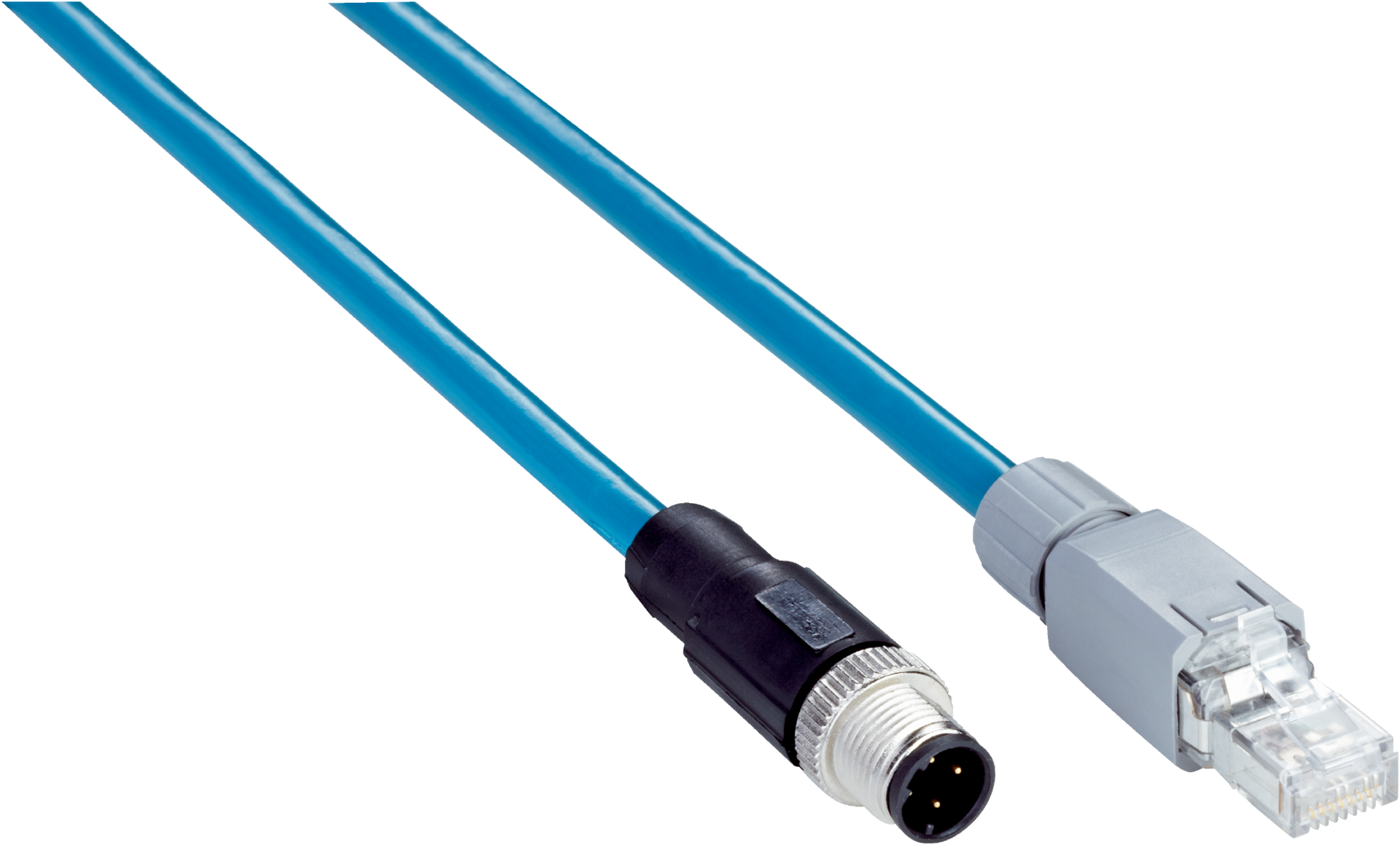

PROFINET Ethernet Cable | M12 to RJ45 | Shielded PVC Jacket | CAT5 | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring a male M12 connector and an RJ45 connector for seamless connectivity. With a shielded PVC jacket and CAT5 transmission characteristics, it supports data rates up to 100 Mbit/s, making it ideal for factory Ethernet and PROFINET communication networks. Built for durability and compliance with industrial standards, this cable ensures reliable data transmission in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFINET Ethernet Cable, M12 to RJ45 Cable, Industrial Ethernet Cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 2 m
- Cable wires: 4-wire, AWG26
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Male connector, M12, 4-pin, straight, D-coded on head A
- Male connector, RJ45, 8-pin, straight on head B
- Shielded cable with PVC jacket for durability
- Supports Ethernet PROFINET signal type
- CAT5 transmission characteristics with data rate up to 100 Mbit/s
- Locking nut made of zinc die-cast, nickel-plated
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial communication standards.
Applications
- Industrial automation and control systems
- Factory Ethernet and PROFINET communication networks
- Data transmission in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant, reducing hazardous substances in manufacturing
- Durable PVC jacket extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YM2D24-020EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and factory communication networks.
