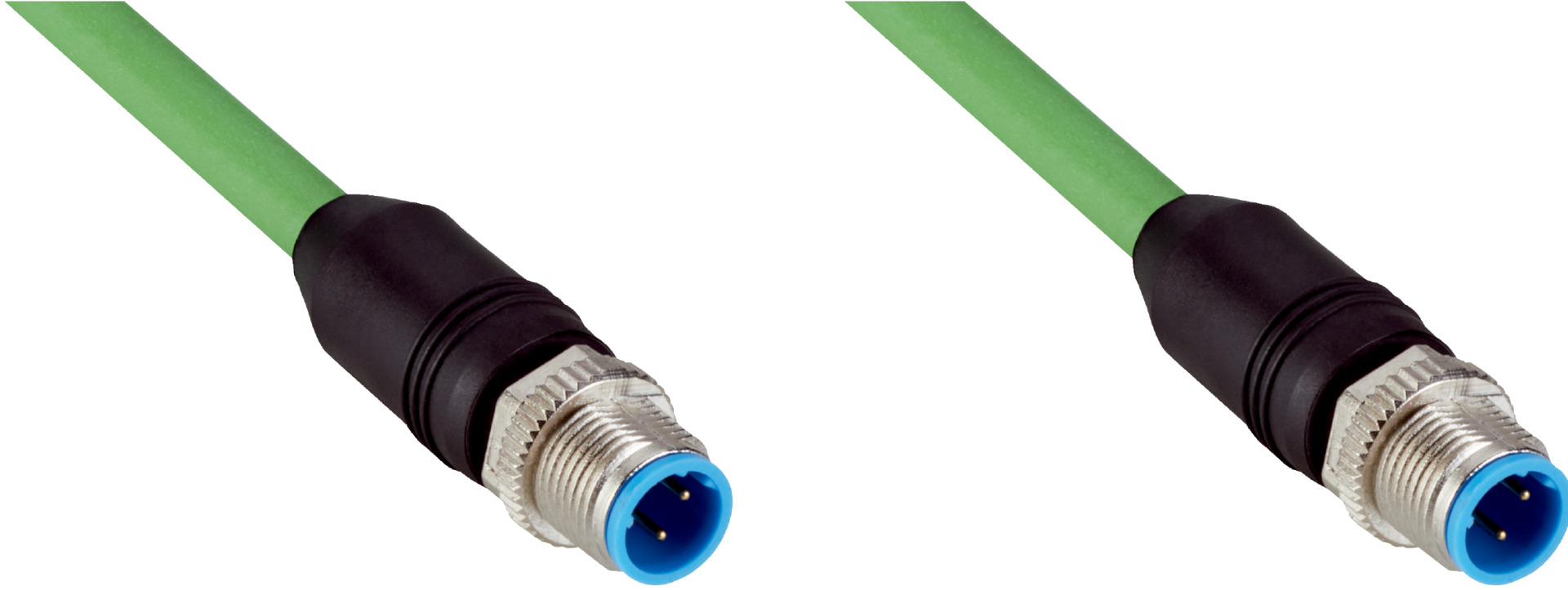

PROFINET Ethernet Cable M12 | Shielded 4-Pin Connectors | 1.5m Length | IP65/IP66K/IP67 Rated | by SICK
The PROFINET Ethernet Cable M12 is designed for robust industrial Ethernet communication, featuring shielded 4-pin connectors and a durable halogen-free PUR cable. With a flexible length of 1.5m and an impressive operating temperature range of -40°C to +85°C, this cable is perfect for drag chain applications and environments with oils and lubricants, ensuring reliable data transmission rates up to 0.1 Gbit/s.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 1.5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary -40°C to +80°C, Drag chain -30°C to +70°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 1500mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Shielded PUR halogen-free cable with 1.5 m length
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Supports data transmission rates up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet communication
- PROFINET network connections
- Drag chain operation in zones with oils and lubricants
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces harmful emissions in case of fire
- Durable materials extend product lifespan reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK YM2D24-015PN1M2D24 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial Ethernet communication and drag chain applications.
