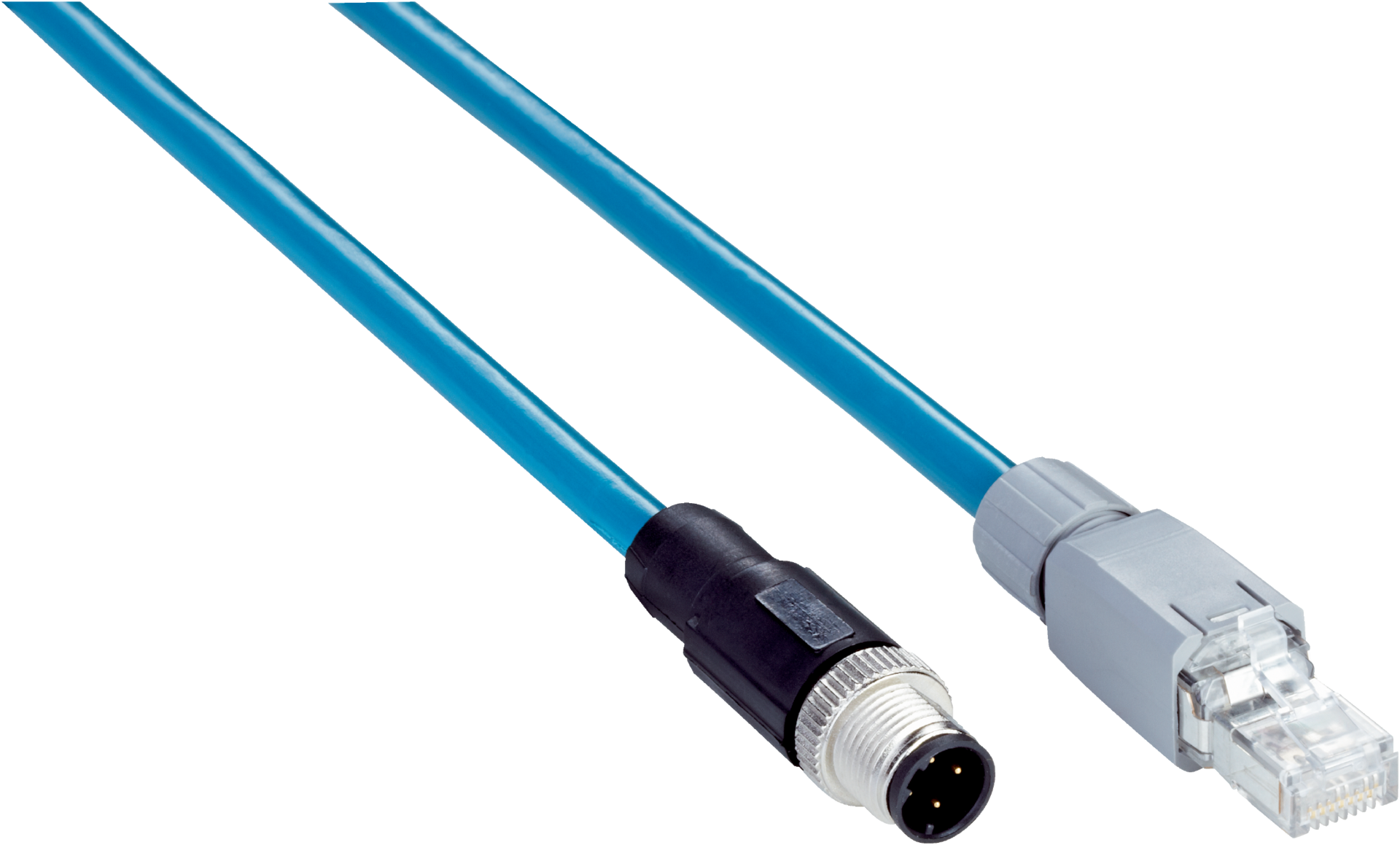

PROFINET Ethernet Cable | M12 to RJ45 | 20m Length | Shielded | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring a 20m length with M12 to RJ45 connectors for reliable data transmission. Built with a shielded design and CAT5 transmission characteristics, it supports Ethernet PROFINET signals, making it ideal for factory communication networks and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PROFINET Ethernet Cable, Industrial Ethernet Cable, M12 to RJ45 Cable, Shielded PROFINET Cable
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, RJ45, 8-pin, straight
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 20 m, 4-wire, AWG26, PVC
- Jacket material: PVC
- Cable diameter: 6.4 mm
- Shielding: Shielded
- Reference voltage: 48 V AC / 60 V DC
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5
- Data transmission rate: ≤ 100 Mbit/s
- Dimensions (H x L x W): 6mm x 6400mm x 6400mm
- Weight: 0.2 kg
Key Features
- Male connector M12, 4-pin, straight, D-coded on head A
- Male connector RJ45, 8-pin, straight on head B
- 20 m length, 4-wire, AWG26 PVC cable with 6.4 mm diameter
- Shielded cable for reliable data transmission
- Supports Ethernet PROFINET signal type
- CAT5 transmission characteristics with data rate up to 100 Mbit/s
- Locking nut made of zinc die-cast, nickel-plated for durability
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with industrial communication standards.
Applications
- Industrial automation and control systems
- Factory Ethernet and PROFINET communication networks
- Data transmission in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing electronic waste
- Shielded cable reduces electromagnetic interference, improving energy efficiency in data transmission
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

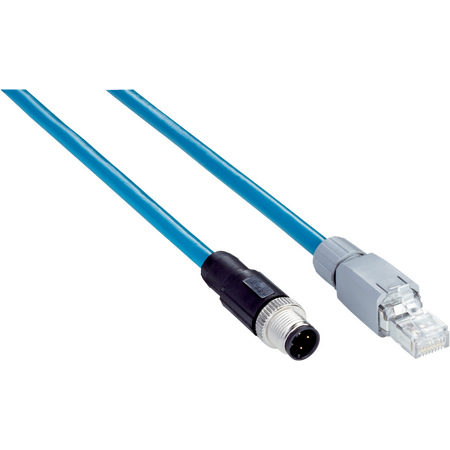

The SICK YM2D24-200EB2MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial automation and factory communication networks.
