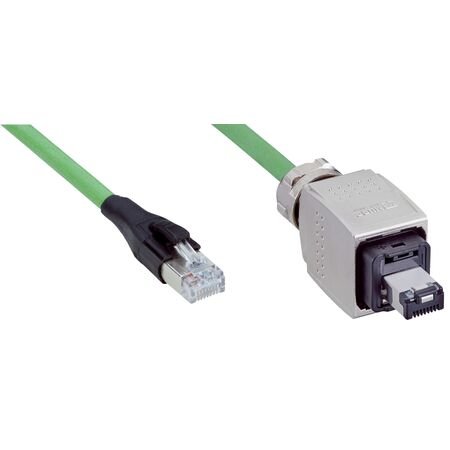

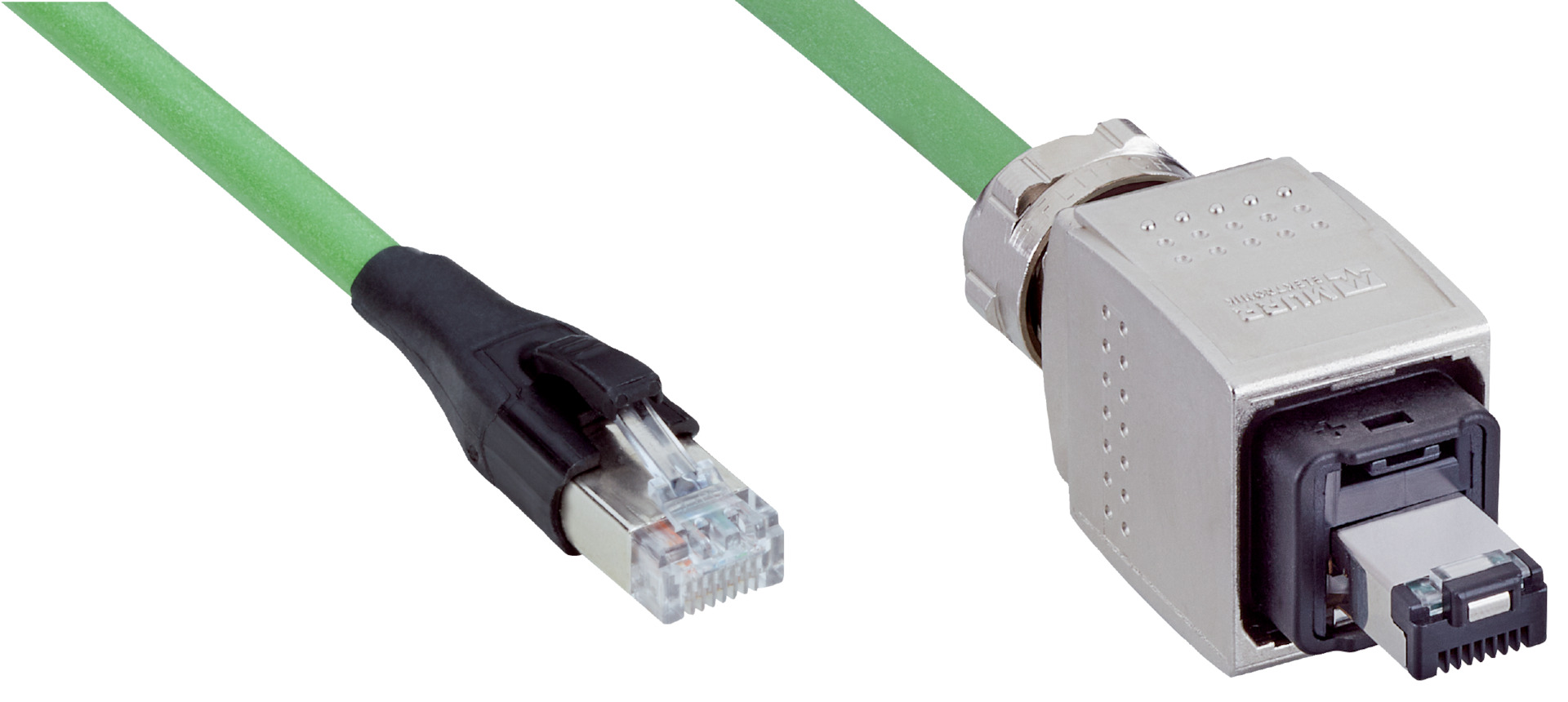

PROFINET Ethernet Cable | Shielded CAT5e | 10m Length | IP20/IP65 Rated | by SICK
The PROFINET Ethernet Cable is designed for reliable industrial communication, featuring shielded CAT5e construction and male RJ45 connectors on both ends. With a flexible operating temperature range from -40°C to +85°C, this cable is perfect for drag chain applications and environments with oils and lubricants, ensuring durability and safety in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Data transmission rate: ≤ 0.1 Gbit/s
- Transmission characteristics: CAT5e
- Operating temperature: Flexible use -30°C to +70°C, Stationary -40°C to +80°C, Drag chain -30°C to +70°C, Head -25°C to +85°C
- Bending cycles: ≤ 3,000,000
- Enclosure rating: IP20 (RJ45), IP65/IP67 (RJ45PP)
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Push-pull male connector for secure connection
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket and cable for safety
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
- IP20 rated for RJ45, IP65/IP67 for RJ45PP connectors
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Halogen-free cable jacket reduces toxic emissions in case of fire
- Durable PUR material extends cable life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YMRJA4-100PN1MRJF4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial communication and automation applications.
