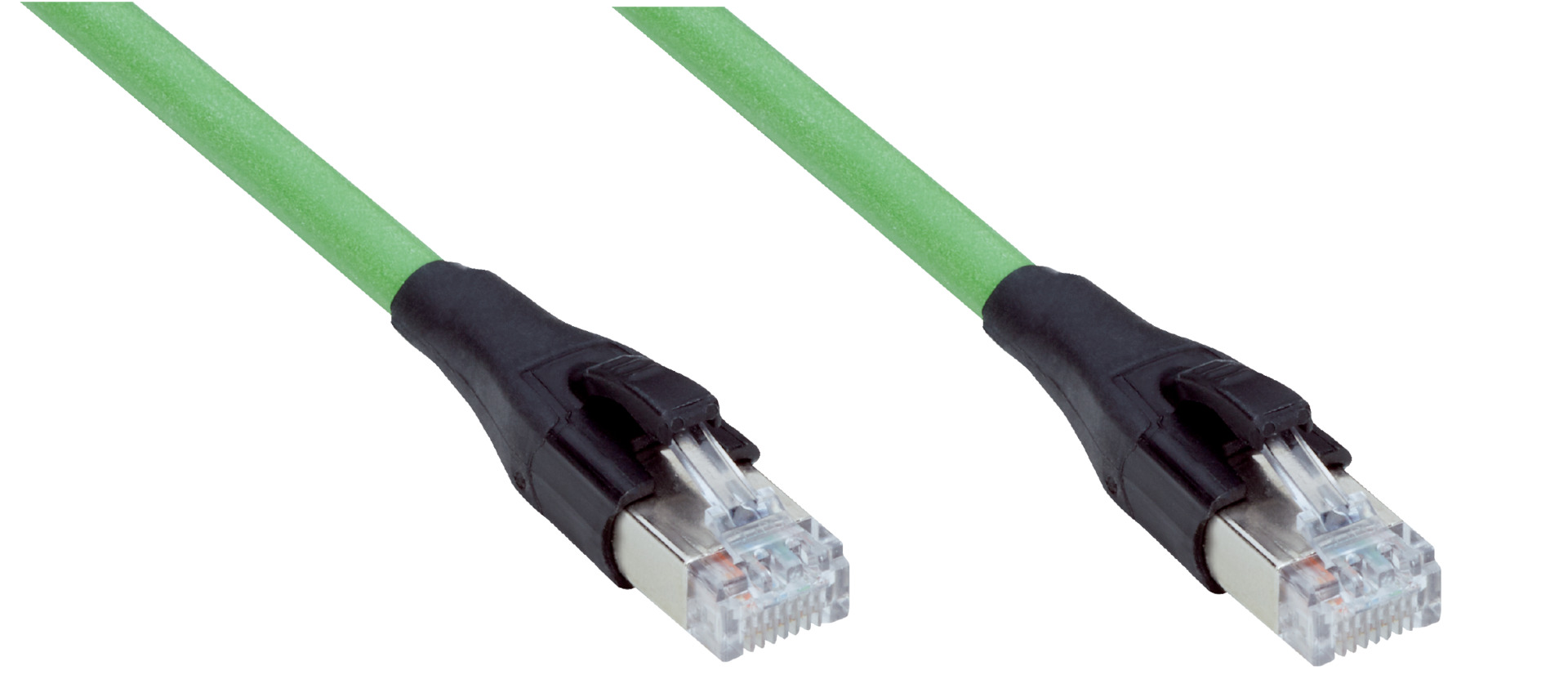

PROFINET Ethernet Cable | Shielded CAT5e | 20m Length | by SICK
The PROFINET Ethernet Cable is designed for reliable industrial communication, featuring shielded CAT5e construction and male RJ45 connectors on both ends. Ideal for drag chain operations and environments with oils and lubricants, this cable ensures safe and efficient data transmission with a halogen-free PUR jacket and flame retardant materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Cable length: 20 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Bending cycles: ≤ 3,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP20
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 6700mm x 6700mm
- Weight: 0.2 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Shielded CAT5e cable for reliable data transmission
- Push-pull male connector for secure connection
- Halogen-free PUR jacket and cable for safety
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
Professional Installation Requirements
- Installation by a qualified electrician or technician experienced with industrial Ethernet cabling is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable and jacket reduce toxic emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

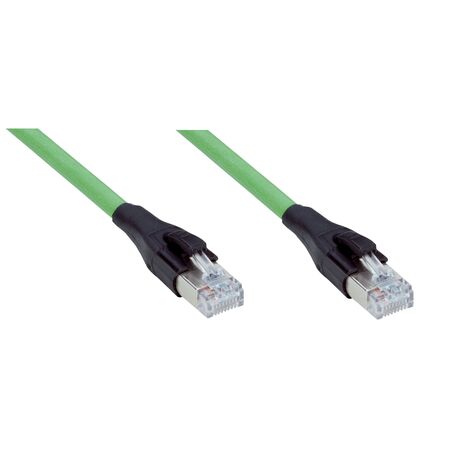

The SICK YMRJA4-200PN1MRJA4 Ethernet PROFINET cable is available for immediate purchase, ideal for industrial automation and communication applications.
