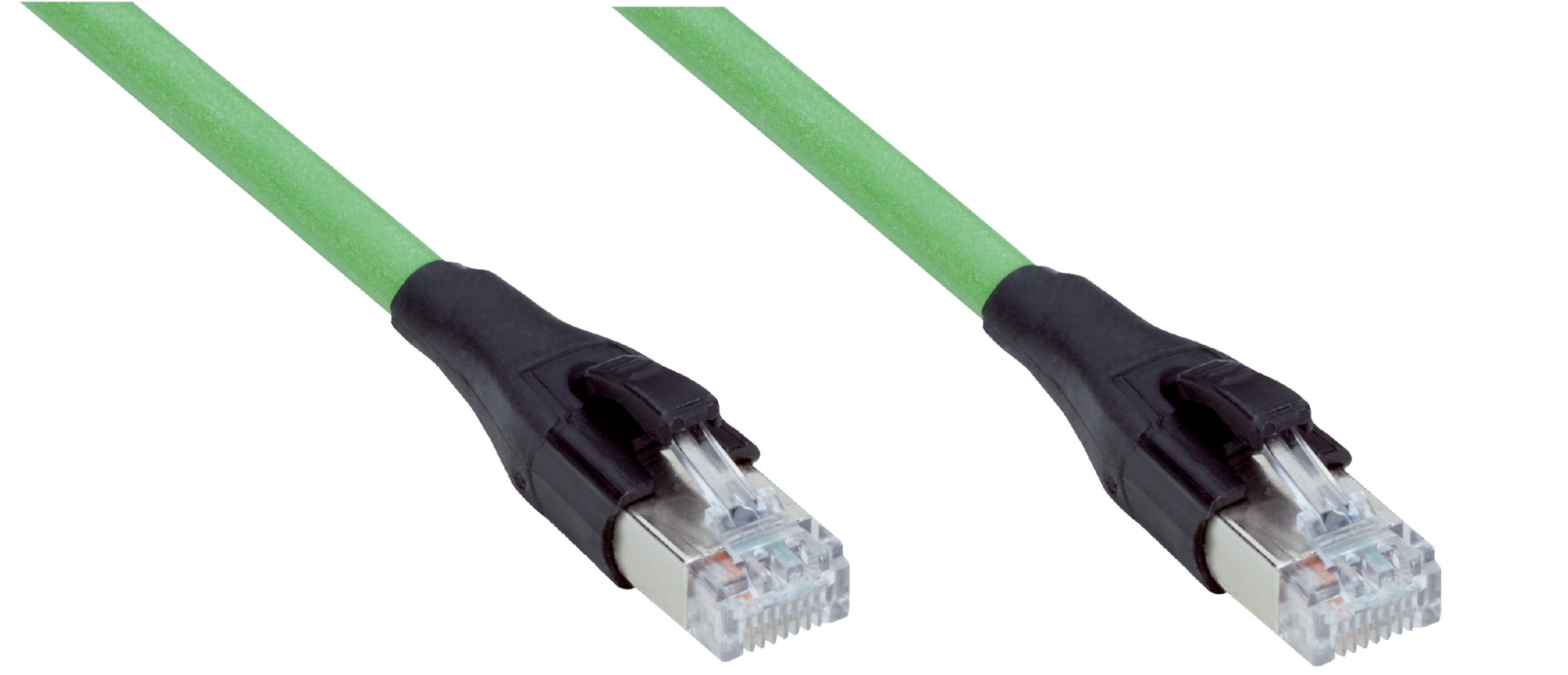

PROFINET Ethernet Cable | Shielded CAT5e | 25m Length | by SICK
The PROFINET Ethernet Cable is a shielded CAT5e solution designed for reliable data transmission in industrial environments. With push-pull male RJ45 connectors and a halogen-free PUR jacket, it’s perfect for flexible use, stationary positions, and drag chain operations. Built to withstand harsh conditions, this cable ensures high durability and compliance with safety standards, making it ideal for industrial communication and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable length: 25 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Data transmission rate: ≤ 0.1 Gbit/s
- Transmission characteristics: CAT5e
- Signal type: Ethernet, PROFINET
- Operating temperature flexible use: -30 °C to +70 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -30 °C to +70 °C
- Operating temperature head: -25 °C to +85 °C
- Bending cycles: ≤ 3,000,000
- Enclosure rating: IP20
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 6700mm x 6700mm
- Weight: 0.3 kg
Key Features
- Shielded CAT5e cable for reliable data transmission
- Push-pull male RJ45 connectors on both ends
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- High bending cycle durability up to 3,000,000 cycles
- Suitable for flexible use, stationary position, and drag chain operation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

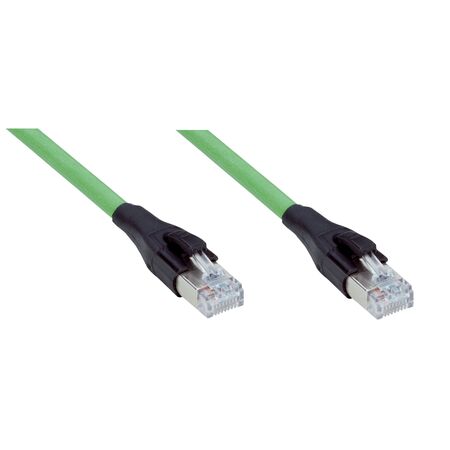

The SICK YMRJA4-250PN1MRJA4 Ethernet PROFINET cable is available for immediate purchase, ideal for industrial communication and automation applications.
