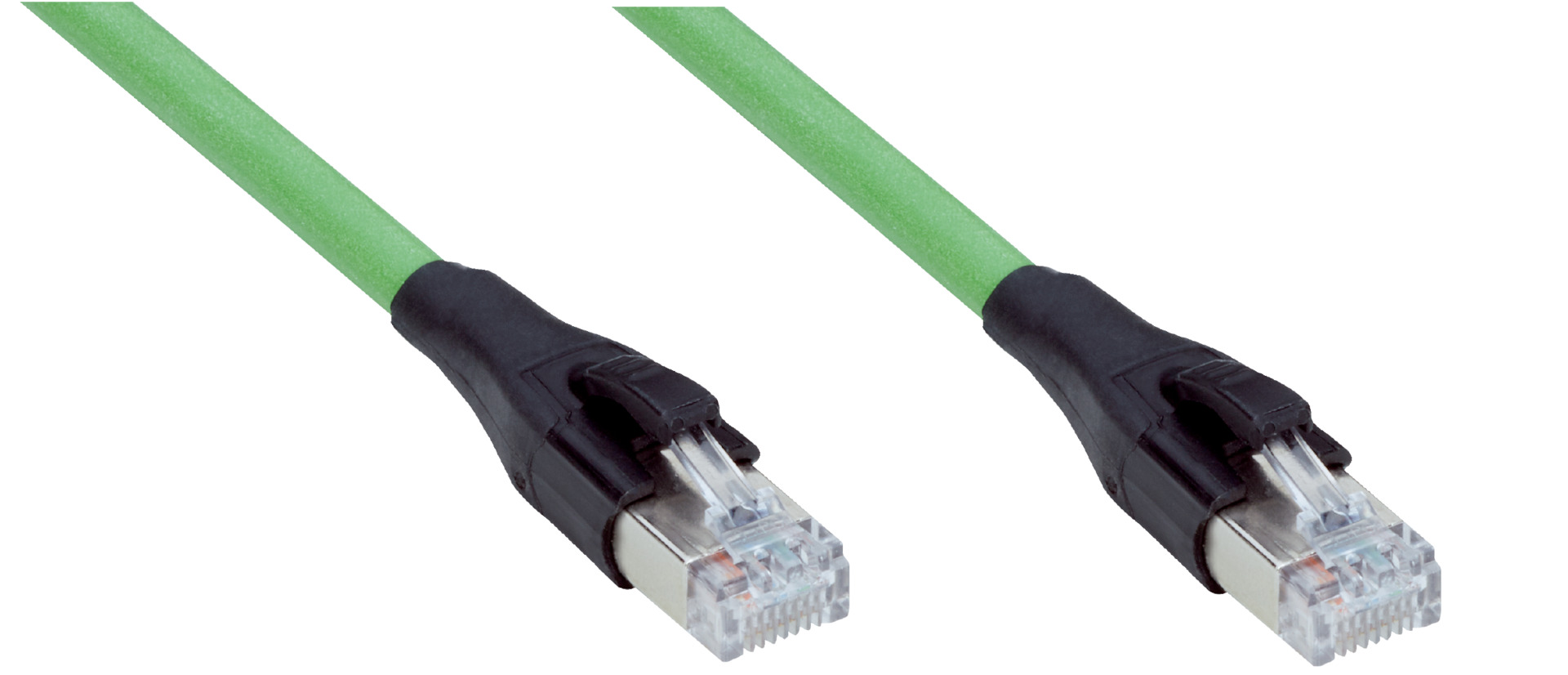

PROFINET Ethernet Cable | Shielded CAT5e | 30m Length | by SICK
The PROFINET Ethernet Cable is designed for reliable industrial communication, featuring shielded CAT5e construction and male RJ45 connectors on both ends. With a robust halogen-free PUR jacket, this cable is perfect for drag chain operations and environments exposed to oils and lubricants, ensuring durability and safety in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Cable length: 30 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP20
- Contamination rating: 3
- Overvoltage category: III
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 6.7mm x 30000mm x 6.7mm
- Weight: 0.2 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Push-pull male connector for secure connection
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable and jacket materials reduce toxic emissions in case of fire
- Durable PUR jacket extends cable life reducing waste
- Flame retardant properties enhance safety and reduce environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

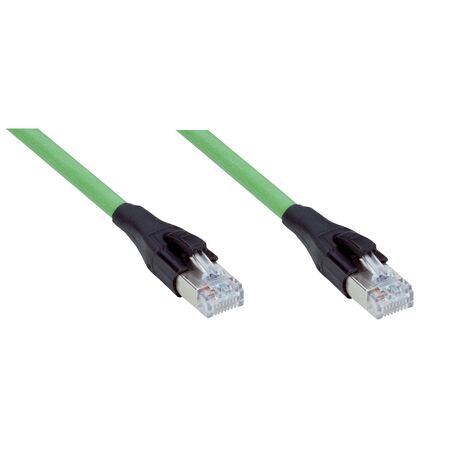

The SICK YMRJA4-300PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial communication and automation applications.
