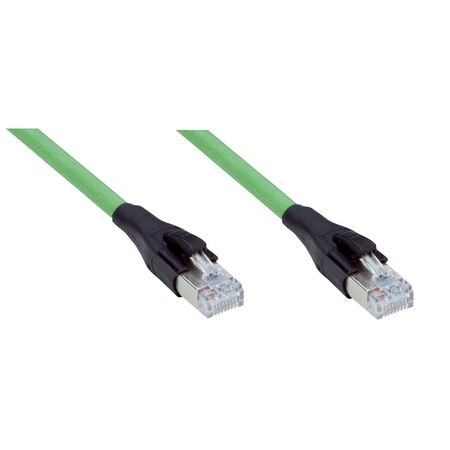

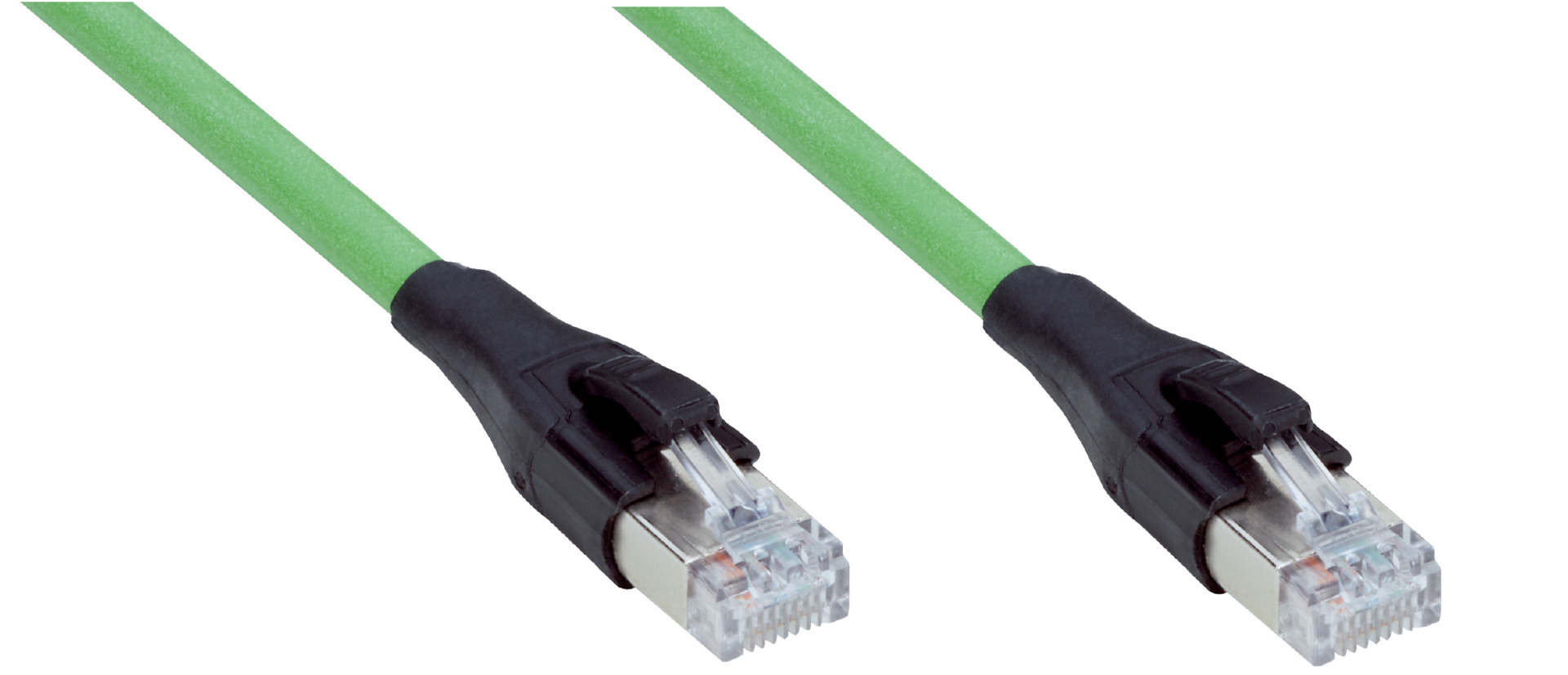

PROFINET Ethernet Cable | Shielded CAT5e | Halogen-Free PUR Jacket | by SICK
The PROFINET Ethernet Cable is designed for reliable industrial communication, featuring shielded CAT5e construction and halogen-free PUR jacket. Ideal for harsh environments, this cable supports flexible and drag chain operations, ensuring secure data transmission with its male RJ45 connectors. Perfect for applications in zones with oils and lubricants, it meets stringent safety standards for enhanced reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: TPU
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius: Flexible use > 12 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 12 x cable diameter
- Operating temperature: Flexible use -30°C to +70°C, Stationary position -40°C to +80°C, Drag chain operation -30°C to +70°C, Head -25°C to +85°C
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.5 A
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP20
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Push-pull male connector for secure connection
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket and cable material
- Flame retardant according to UL 1581 and IEC 60332-1-2
- High bending radius suitable for flexible and drag chain use
- Operating temperature range from -40°C to +85°C depending on use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Flame retardant properties enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK YMRJA4-100PN1MRJA4 Ethernet PROFINET Cable is available for immediate purchase, ideal for industrial Ethernet communication in harsh environments.
