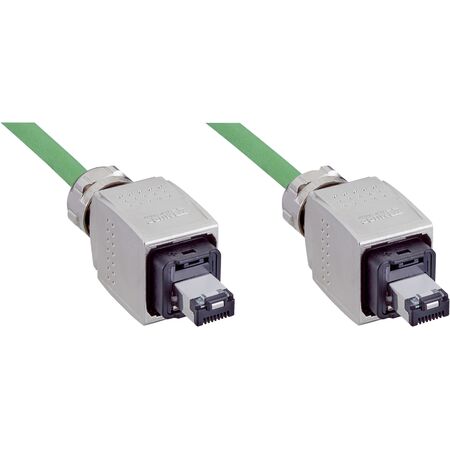

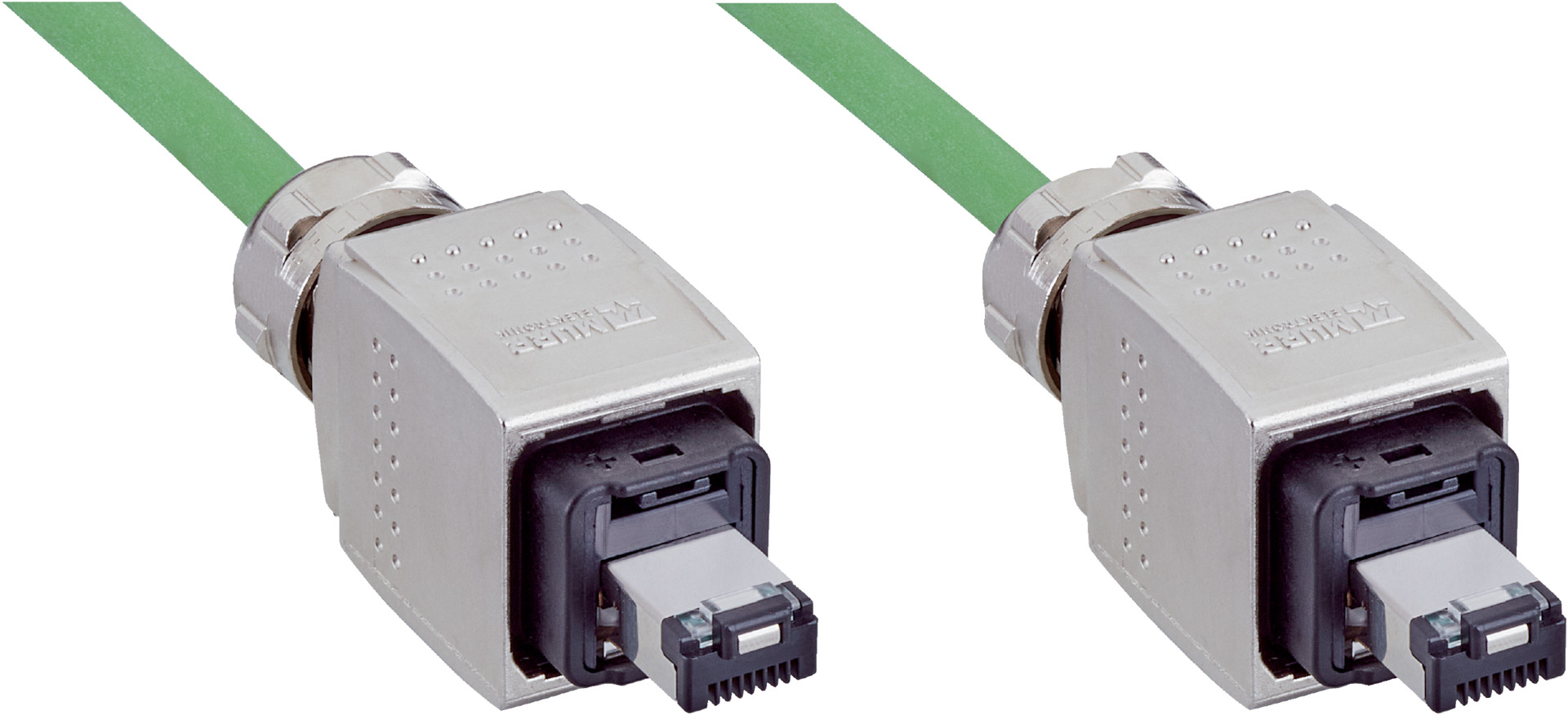

PROFINET Ethernet Cable | Shielded CAT5e | IP65/IP67 Rated | by SICK
The PROFINET Ethernet Cable is designed for industrial automation, featuring shielded CAT5e construction for reliable data transmission. With male RJ45 connectors on both ends and an IP65/IP67 rated enclosure, it’s perfect for environments with oils and lubricants, ensuring durability and performance in flexible, stationary, and drag chain applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, RJ45, 4-pin, straight
- Connection type head B: Male connector, RJ45, 4-pin, straight
- Connector material: Zinc die-cast, nickel-plated
- Cable length: 10 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1 kV
- Current loading: ≤ 1.76 mA
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Operating temperature: Flexible use –30 °C to +70 °C, Stationary –40 °C to +80 °C, Drag chain –30 °C to +70 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP67
- Thermal resistance: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.15 kg
Key Features
- Male RJ45 4-pin straight connectors on both ends
- Shielded CAT5e cable for reliable data transmission
- Halogen-free PUR jacket and cable material
- IP65/IP67 rated enclosure for dust and water protection
- Suitable for flexible use, stationary, and drag chain operation
- Flame retardant according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial Ethernet and PROFINET communication
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable materials reduce toxic emissions in case of fire
- Durable PUR jacket extends cable life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YMRJF4-100PN1MRJF4 Ethernet PROFINET cable is available for immediate purchase. Ideal for industrial automation and communication applications requiring robust and reliable Ethernet connections.
