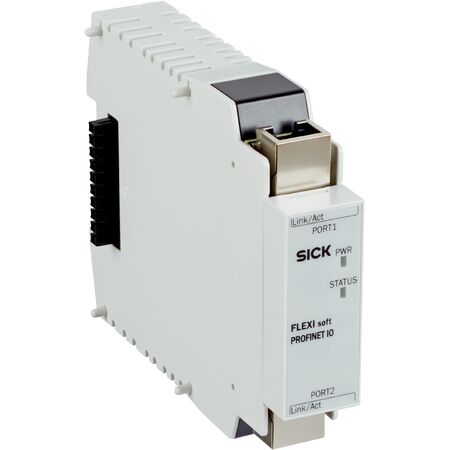

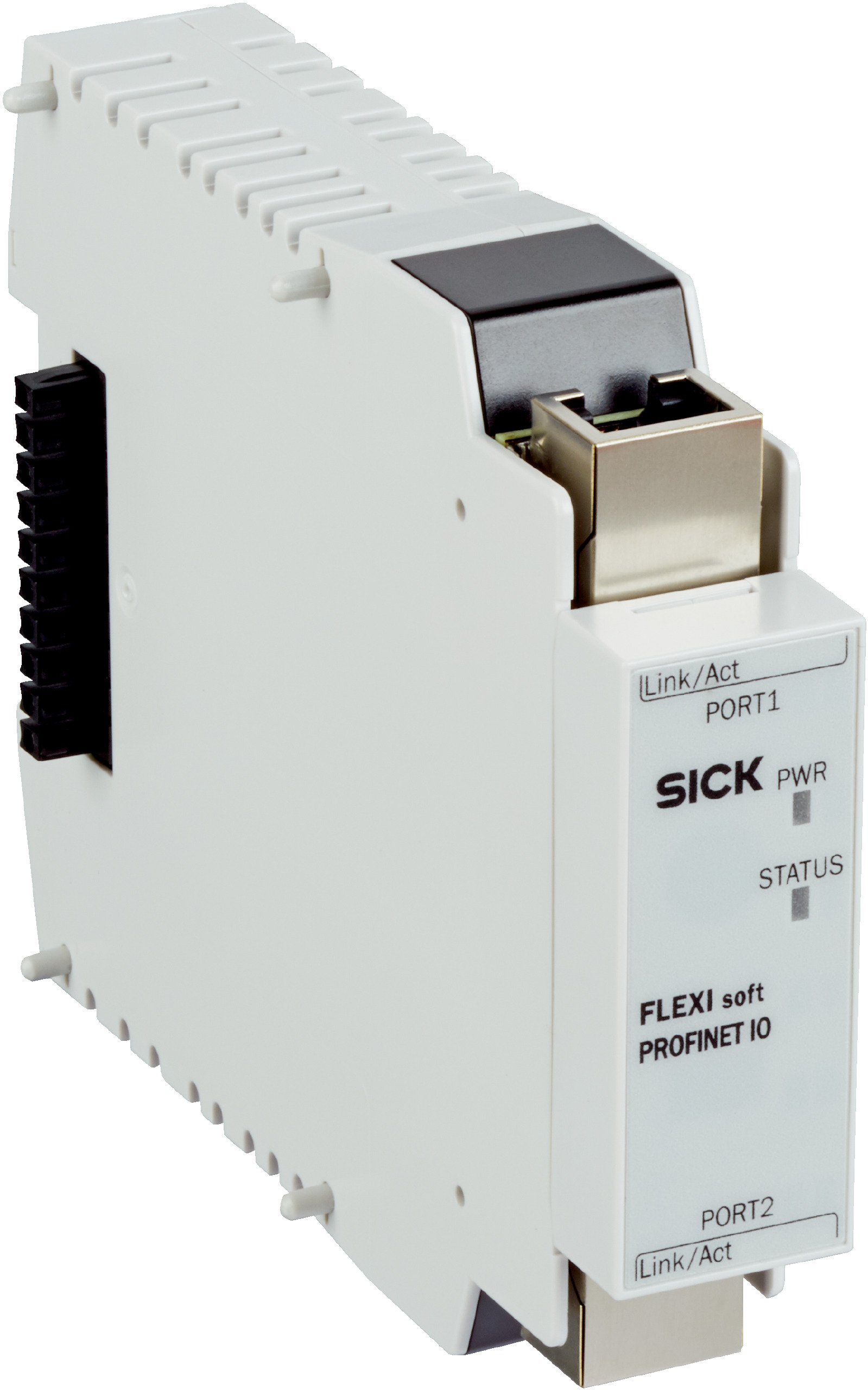

PROFINET Gateway Module | 3-Port Managed Ethernet Switch | TCP/IP Support | by SICK
The PROFINET Gateway Module FX0-GPNT00000 is designed for seamless industrial automation networks, featuring a 3-port managed Ethernet switch and support for TCP/IP sockets. Ideal for integrating safety and automation systems, this gateway module ensures efficient communication with a data transmission rate of up to 100 Mbit/s, making it perfect for factory and process automation environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PROFINET Gateway Module | 3-Port Managed Ethernet Switch | TCP/IP Support | by SICK
Brand: SICK
SKU: 1044074
Alternatively Known As: PROFINET Gateway Module, Industrial Network Gateway, SICK FX0 Gateway
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: PROFINET, TCP/IP sockets
- Configuration Method: Via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Air Humidity: ≤ 95%, Non-condensing
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module for PROFINET and TCP/IP sockets
- 3-port layer-2 managed Ethernet switch with Auto-MDI-X
- Supports 10 Mbit/s and 100 Mbit/s autosensing data transmission rates
- Connection via 2 x female RJ-45 connectors
- Configuration via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial network equipment and safety standards.
Applications
- Industrial automation networks requiring PROFINET communication
- Integration of safety and automation systems via TCP/IP sockets
- Factory and process automation environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low internal power consumption of ≤ 3 W reduces energy usage
- Supports efficient industrial network communication to optimize system performance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK FX0-GPNT00000 PROFINET Gateway Module is available for immediate purchase, ideal for industrial automation and network integration applications.
