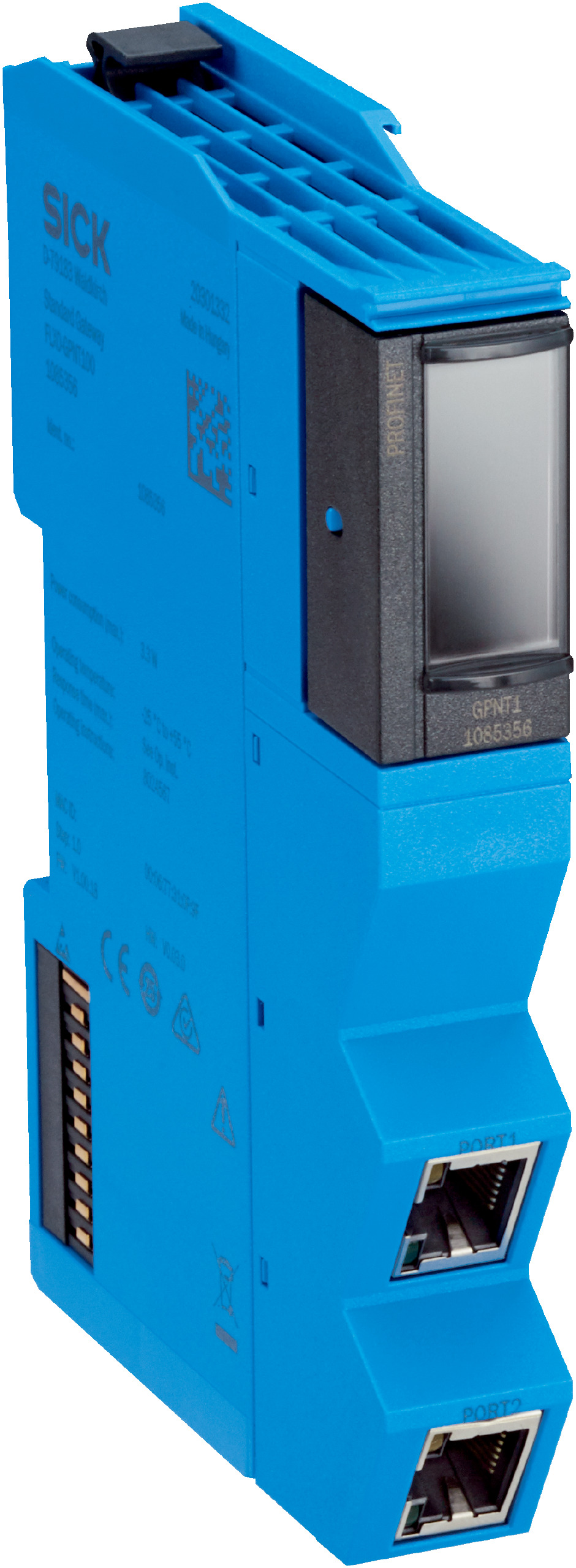

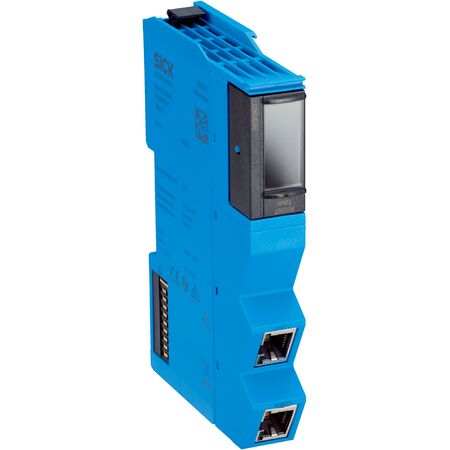

PROFINET Gateway Module FLX0-GPNT100 | Integrated Switch | IP20 Enclosure | by SICK
The PROFINET Gateway Module FLX0-GPNT100 enables seamless data communication for safety controllers over PROFINET TCP/IP sockets. Designed for industrial automation networks, it features dual RJ45 connectors and is configured via Safety Designer software. With low power consumption and robust interference resistance, this module is perfect for reliable control and diagnostics in safety-critical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus: PROFINET TCP/IP sockets
- Configuration Method: Via Safety Designer software and TFT display
- Fieldbus Interface: 2 x RJ45 female connectors with integrated switch
- Power Loss: ≤ 3.3 W
- Current Consumption: 135 mA at nominal voltage
- Protection Class: III (EN 61140)
- Interference Resistance: EN 61000-6-2
- Interference Emission: EN 61000-6-4
- Mounting: 35 mm × 7.5 mm mounting rail (IEC 60715)
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Vibration Resistance: 1 g, 5 Hz to 200 Hz
- Shock Resistance: 15 g, 11 ms
- Dimensions (H x L x W): 124.7mm x 85.5mm x 18mm
- Weight: 0.108 kg
Key Features
- Enables safety controller to send and receive data over PROFINET TCP/IP sockets
- Supports multiple application communication with safety controller via TCP/IP
- Configuration via Safety Designer software and TFT display
- Equipped with integrated switch for network connection without interruption
- Two RJ45 female connectors for fieldbus interface
- Mounting on standard 35 mm × 7.5 mm mounting rail
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with PROFINET networks and safety controller integration to ensure compliance and optimal performance.
Applications
- Industrial automation networks requiring safety controller data communication
- PROFINET TCP/IP network integration for control and diagnostics
- Safety controller configuration and monitoring via TCP/IP
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Supports efficient network communication reducing need for additional hardware
- Low power consumption of ≤ 3.3 W reduces energy usage
- Designed for long operational life minimizing electronic waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK FLX0-GPNT100 Gateway Module is available for immediate purchase, ideal for industrial automation and safety network applications.
