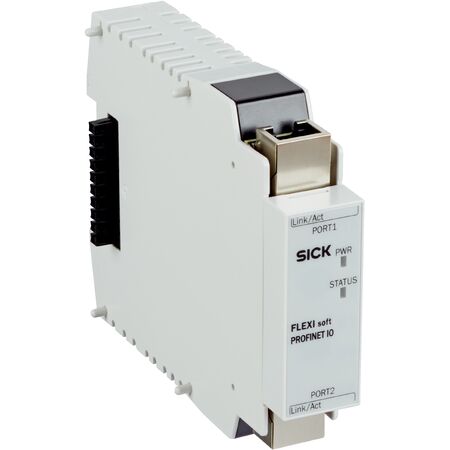

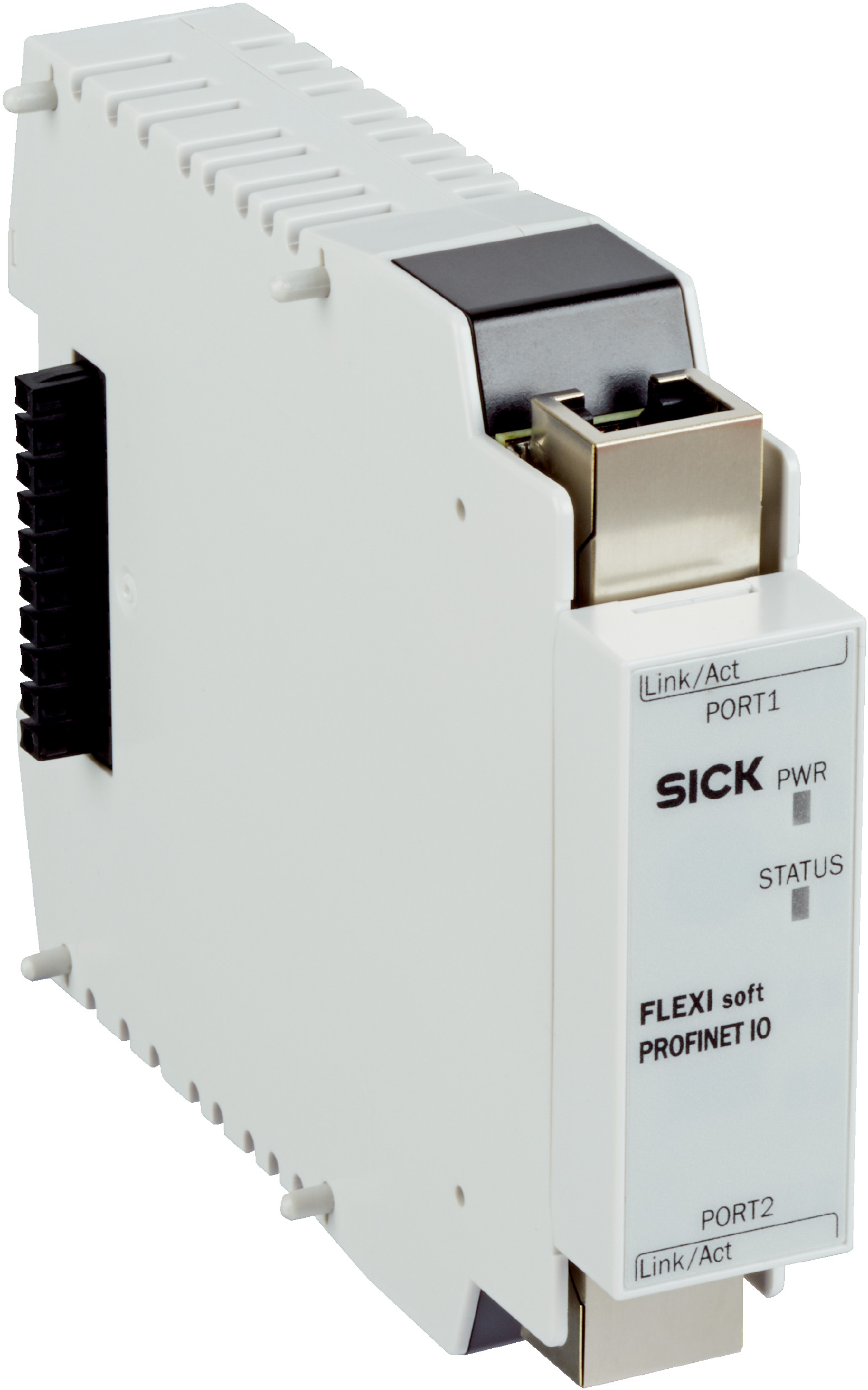

PROFINET Gateway Module | 3-Port Managed Ethernet Switch | Dual RJ-45 Connectors | by SICK
The PROFINET Gateway Module FX0-GPNT00010 is designed for seamless industrial automation networks, featuring a 3-port managed Ethernet switch and dual RJ-45 connectors for reliable TCP/IP communication. With low power consumption and a protective coating for harsh environments, it's perfect for factory automation systems and applications requiring robust network connectivity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Module Type: Gateway
- Fieldbus/Industrial Network: PROFINET, TCP/IP sockets
- Configuration Method: Software via Flexi Soft Designer, Safe EFI-pro System Safety Designer
- Integrated Ethernet Switch: 3-port layer-2 managed with Auto-MDI-X
- Data Transmission Rate: 10 Mbit/s (10Base-T), 100 Mbit/s (100Base-T) autosensing
- Connection Type: 2 x female RJ-45 connectors
- Protection Class: III (EN 61140)
- Voltage Supply: Via FLEXBUS+
- Internal Power Consumption: ≤ 3 W
- Enclosure Rating: IP20 (EN 60529)
- Operating Temperature Range: -25 °C to +55 °C
- Storage Temperature Range: -25 °C to +70 °C
- Humidity: ≤ 95%, Non-condensing
- Gas Resistance: Sulfur dioxide 25 ppm for 21 days at 25 °C, Mixed gases per IEC standards
- Dimensions (H x L x W): 97mm x 121mm x 23mm
- Weight: 0.125 kg
Key Features
- Gateway module for PROFINET and TCP/IP sockets
- Configuration via Flexi Soft Designer and Safe EFI-pro System Safety Designer software
- Protective coating for resistance to sulfur and harsh ambient conditions
- 3-port layer-2 managed Ethernet switch with Auto-MDI-X for automatic cable detection
- Data transmission rates of 10 Mbit/s and 100 Mbit/s with autosensing
- Dual RJ-45 female connectors for network connection
- Low internal power consumption (≤ 3 W)
- Protection class III (EN 61140)
Professional Installation Requirements
- Installation should be performed by qualified industrial automation professionals or electricians familiar with PROFINET and industrial network systems.
Applications
- Industrial automation networks requiring PROFINET communication
- Factory automation systems integrating TCP/IP sockets
- Environments with challenging ambient conditions including sulfur exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK official documentation for details.
Available Now
The SICK FX0-GPNT00010 PROFINET Gateway Module is available for immediate purchase, ideal for industrial automation and network communication applications.
