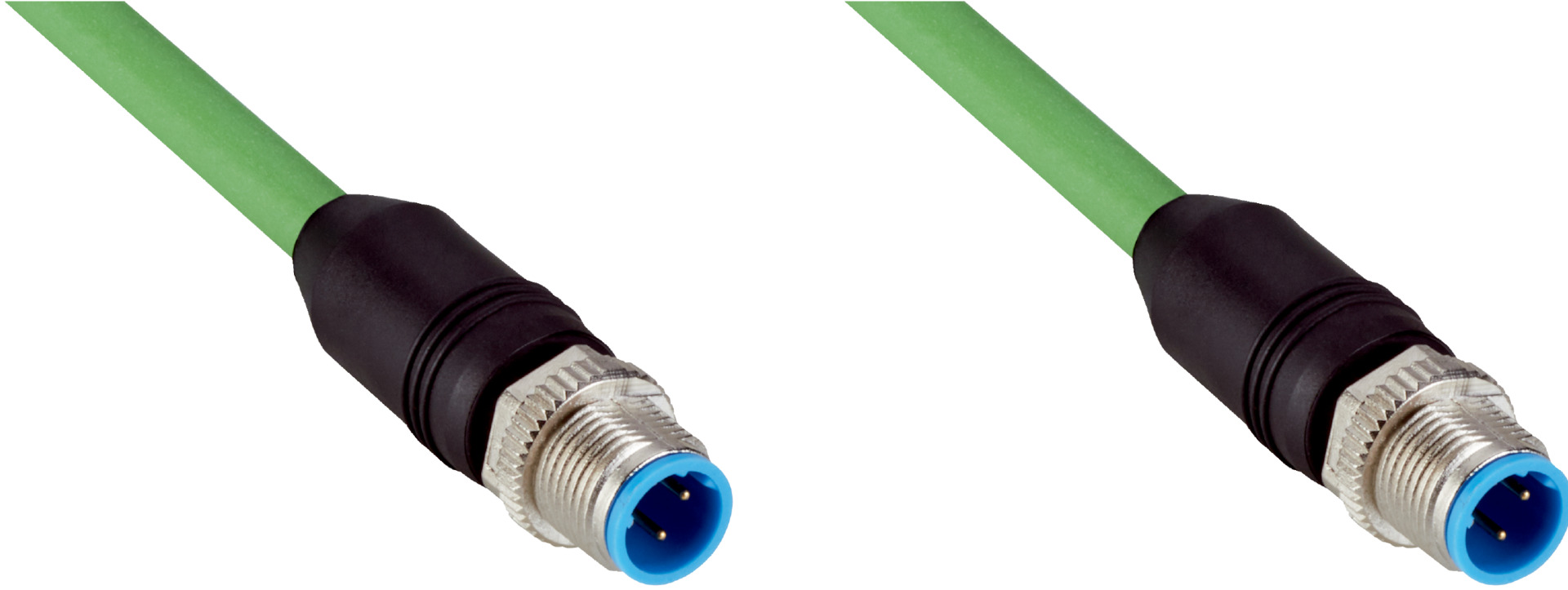

PROFINET M12 Cable | Male 4-Pin Connectors | Shielded PUR Halogen-Free | IP65/IP66K/IP67 Rated | by SICK
The PROFINET M12 Cable is designed for robust industrial applications, featuring male 4-pin connectors on both ends and a shielded PUR halogen-free cable. With a high durability rating of 3,000,000 bending cycles and an IP65/IP66K/IP67 enclosure, it’s perfect for drag chain operations and environments with oils and lubricants, ensuring reliable data transmission for industrial Ethernet and PROFINET systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Male connector, M12, 4-pin, straight, D-coded
- Connection type head B: Male connector, M12, 4-pin, straight, D-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 1 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 6.7 mm
- Conductor cross section: 0.34 mm²
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Bending radius drag chain operation: > 12 x cable diameter
- Operating temperature flexible use: -30°C to +70°C
- Operating temperature stationary position: -40°C to +80°C
- Operating temperature drag chain operation: -30°C to +70°C
- Head temperature range: -25°C to +85°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 2 m/s²
- Signal type: Ethernet, PROFINET
- Transmission characteristics: CAT5e
- Data transmission rate: ≤ 0.1 Gbit/s
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: > 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: < 30 mΩ
- Thermal resistance piping: Flame retardant acc. to UL 1581 Section 1090, Section 1100 (FT2), IEC 60332-1-2 Std.
- Dimensions (H x L x W): 13mm x 1000mm x 13mm
- Weight: 0.1 kg
Key Features
- Male M12, 4-pin, straight, D-coded connectors on both ends
- Shielded PUR halogen-free cable with 4 wires and 0.34 mm² conductor cross section
- High durability with 3,000,000 bending cycles
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Suitable for flexible use from -30°C to +70°C and stationary use from -40°C to +80°C
- Supports data transmission rates up to 0.1 Gbit/s
- Flame retardant cable according to UL 1581 and IEC 60332-1-2 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Industrial Ethernet and PROFINET data transmission
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design minimizes cable replacement and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YM2D24-010PN1M2D24 Ethernet PROFINET Cable Assembly is available for immediate purchase, ideal for industrial automation and data communication applications.
