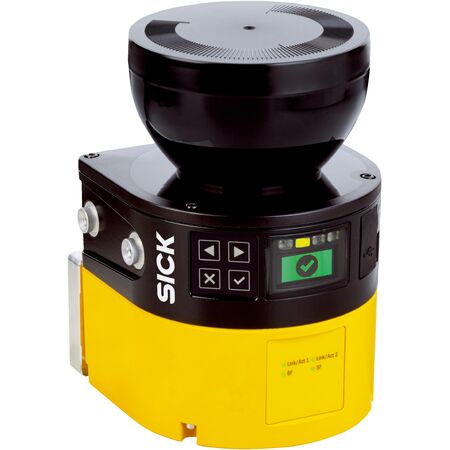

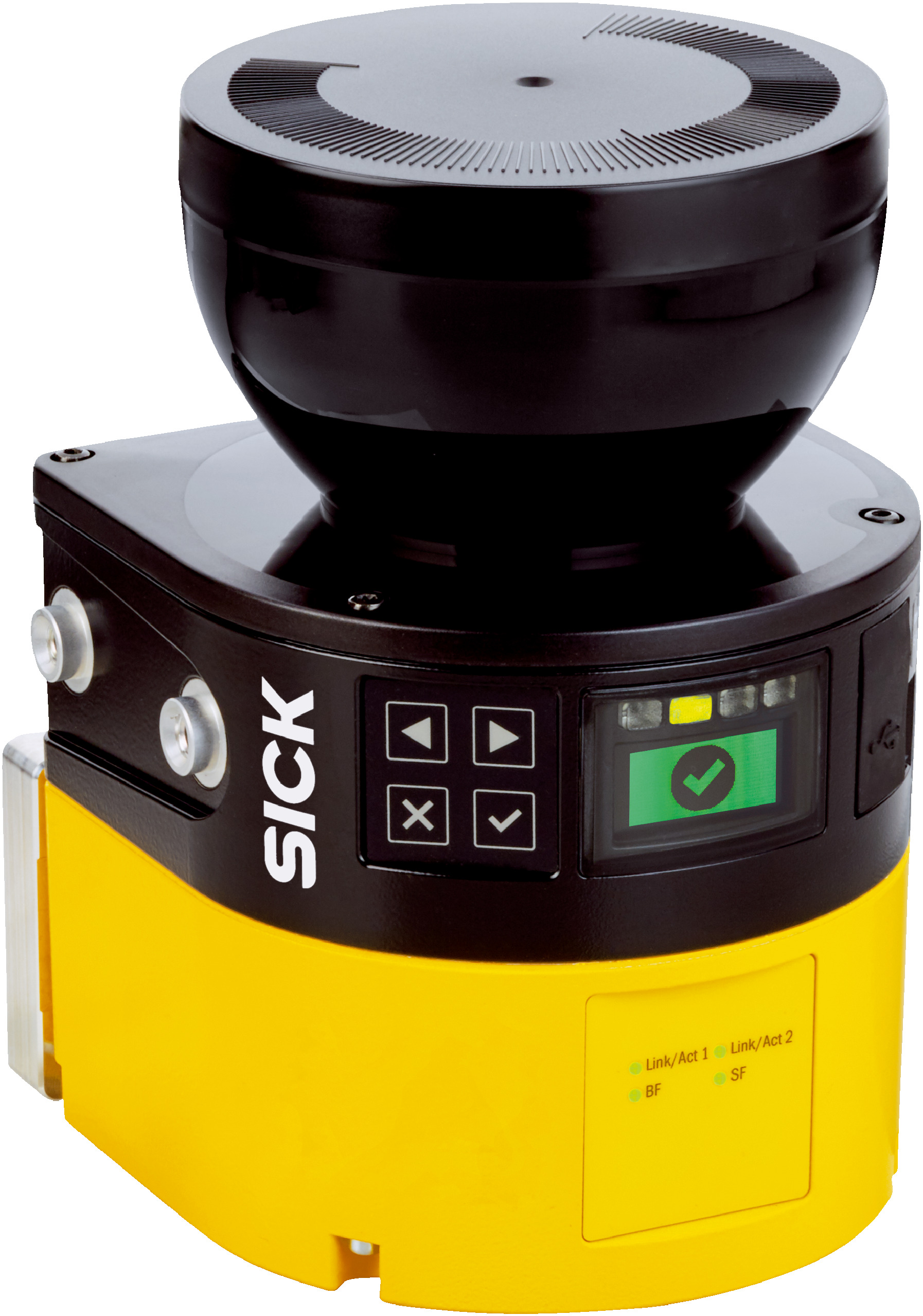

PROFINET Safety Scanner | 5.5m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The PROFINET Safety Scanner is designed for indoor industrial safety monitoring, featuring a protective field range of 5.5 m and a warning field range of 40 m. With the ability to monitor up to 4 fields simultaneously and a 275° scanning angle, it ensures optimal safety for automated production lines. Built for robust performance, this scanner is ideal for machine safeguarding and integrates seamlessly into PROFINET networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Product version: microScan3 Core - PROFINET
- Protective field range: 5.5 m
- Warning field range: 40 m
- Number of simultaneously monitored fields: ≤ 4
- Number of fields: 8
- Number of monitoring cases: 8
- Scanning angle: 275°
- Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm, 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Safe state on fault: Safety outputs via network are logic 0
- Connection type: 1 x male M12 5-pin L-coded, 2 x female RJ45 connectors
- Fieldbus: PROFINET with PROFIsafe protocol
- Configuration: PC with Safety Designer software
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption: 7.2 W typical
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Enclosure rating: IP65
- Operating temperature: -10°C to +50°C
- Storage temperature: -25°C to +70°C
- Vibration and shock resistance: IEC 60068 series compliant
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 5.5 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and measured data output via Ethernet
- Multiple interfaces including USB 2.0, Mini-USB, and Ethernet
- Graphic color display with LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure for dust and water protection
- Vibration and shock resistant compliant with IEC standards
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and PROFINET networks to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring safety laser scanning
- PROFINET network integrated safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable construction reduces waste and replacement frequency
- Supports safe automation reducing risk of accidents and environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Sensor MICS3-ACAZ55PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
