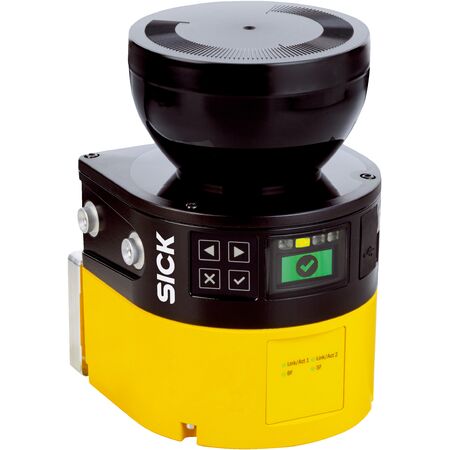

PROFINET Safety Sensor microScan3 Core | 4m Protective Range | 275° Scanning Angle | SIL 2 Safety Level | by SICK
The PROFINET Safety Sensor microScan3 Core is designed for indoor industrial safety monitoring, featuring a protective field range of 4 m and a warning field range of 40 m. With a 275° scanning angle and SIL 2 safety integrity level, it ensures reliable machine safeguarding and automated production line safety. Ideal for manufacturing environments, this sensor supports PROFINET communication and offers multiple safety functions for enhanced operational safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Protective field range: 4 m
- Warning field range: 40 m
- Scanning angle: 275°
- Configurable resolution: 30 mm to 200 mm
- Angular resolution: 0.39°
- Response time: 95 ms
- Safety type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- PFHD: 8.0 x 10^-8
- Mission time: 20 years
- Power supply: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Connection: 1x M12 5-pin male connector, 2x RJ45 female connectors
- Fieldbus: PROFINET with PROFIsafe protocol
- Display: Graphic color display with LEDs
- Housing material: Aluminum
- Optics cover: Polycarbonate with scratch-resistant coating
- Laser class: 1 (IEC 60825-1)
- Dimensions (H x L x W): 163mm x 111mm x 112mm
- Weight: 1.65 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 4 fields with 8 fields and 8 monitoring cases
- 275° scanning angle with configurable resolution from 30 mm to 200 mm
- Safety integrity level SIL 2 and Category 3 with Performance Level PL d
- Response time of 95 ms with safe state output via network logic 0 on fault
- Multiple safety functions including restart interlock, multiple sampling, and safe contour detection
- PROFINET fieldbus with PROFIsafe protocol support and 4 safety outputs via network
- Robust IP65 rated aluminum housing with scratch-resistant polycarbonate optics cover
- Operating temperature range from -10 °C to +50 °C
- Graphic color display and LEDs for status indication
Professional Installation Requirements
- Professional installation by a qualified technician or electrician with experience in industrial safety systems and PROFINET networks is recommended to ensure compliance and optimal performance.
Applications
- Indoor industrial safety monitoring
- Machine safeguarding
- Automated production lines requiring PROFINET communication
- Safety perimeter monitoring in manufacturing environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 7.2 W
- Durable aluminum housing and scratch-resistant optics reduce replacement frequency
- Supports PROFIenergy for energy-saving network communication
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK microScan3 Core PROFINET Safety Sensor MICS3-ACAZ40PZ1P01 is available for immediate purchase, ideal for indoor industrial safety and automation applications.
