SICK PROFINET Safety Sensor | SIL 2 | 275° Scanning Angle | 128 Monitoring Fields | by SICK
The SICK PROFINET Safety Sensor is designed for outdoor safety monitoring, featuring a SIL 2 safety integrity level and a wide 275° scanning angle. With the capability to monitor up to 8 fields simultaneously and a robust aluminum housing, this sensor is perfect for industrial automation applications requiring reliable safety solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: Type 3 (IEC 61496)
- Safety integrity level: SIL 2 (IEC 61508)
- Category: Category 3 (EN ISO 13849)
- Performance level: PL d (EN ISO 13849)
- Response time: 115 ms
- Angular resolution: 0.39°
- Number of fields: 128
- Number of simultaneously monitored fields: ≤ 8
- Scanning angle: 275°
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Power consumption typical: 7.2 W
- Connection type: 1 x male M12 4-pin A-coded for voltage supply, 2 x female M12 4-pin D-coded for PROFINET
- Configuration interface: USB 2.0, Mini-USB, Ethernet
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (IEC 60529)
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -25 °C to +70 °C
- Laser class: 1 (IEC 60825-1)
- Wavelength: 845 nm
- Housing material: Aluminum
- Optics cover material: Polycarbonate with scratch-resistant coating
- Dimensions (H x L x W): 151mm x 115mm x 115mm
- Weight: 1.45 kg
Key Features
- Protective field range of 4 m and warning field range of 40 m
- Simultaneous monitoring of up to 8 fields with 128 monitoring cases
- Wide scanning angle of 275° with configurable resolution of 50 mm or 70 mm
- Safety integrity level SIL 2 and Category 3 safety classification
- Integrated configuration memory and multiple sampling functions
- Connection via PROFINET with 8 safety outputs via network
- Graphic color display and LEDs for status indication
- Robust aluminum housing with polycarbonate optics cover and scratch-resistant coating
- IP65 rated enclosure suitable for harsh outdoor environments
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with PROFINET networks and safety sensor integration to ensure compliance with safety standards.
Applications
- Outdoor safety monitoring
- Industrial automation requiring PROFINET communication
- Safety applications with multiple monitored fields
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Energy-efficient operation with 7.2 W typical power consumption
- Supports PROFIenergy for optimized energy management in industrial networks
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

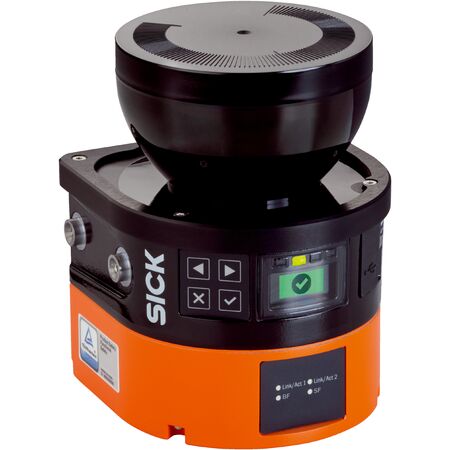

The SICK MICS3-CBUZ40PZ1P01 outdoorScan3 Pro PROFINET Safety Sensor is available for immediate purchase, ideal for outdoor industrial safety monitoring applications.
