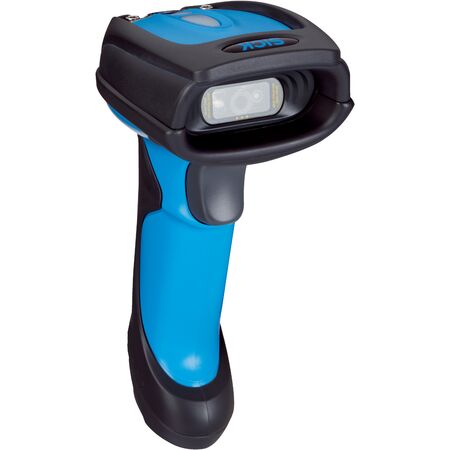

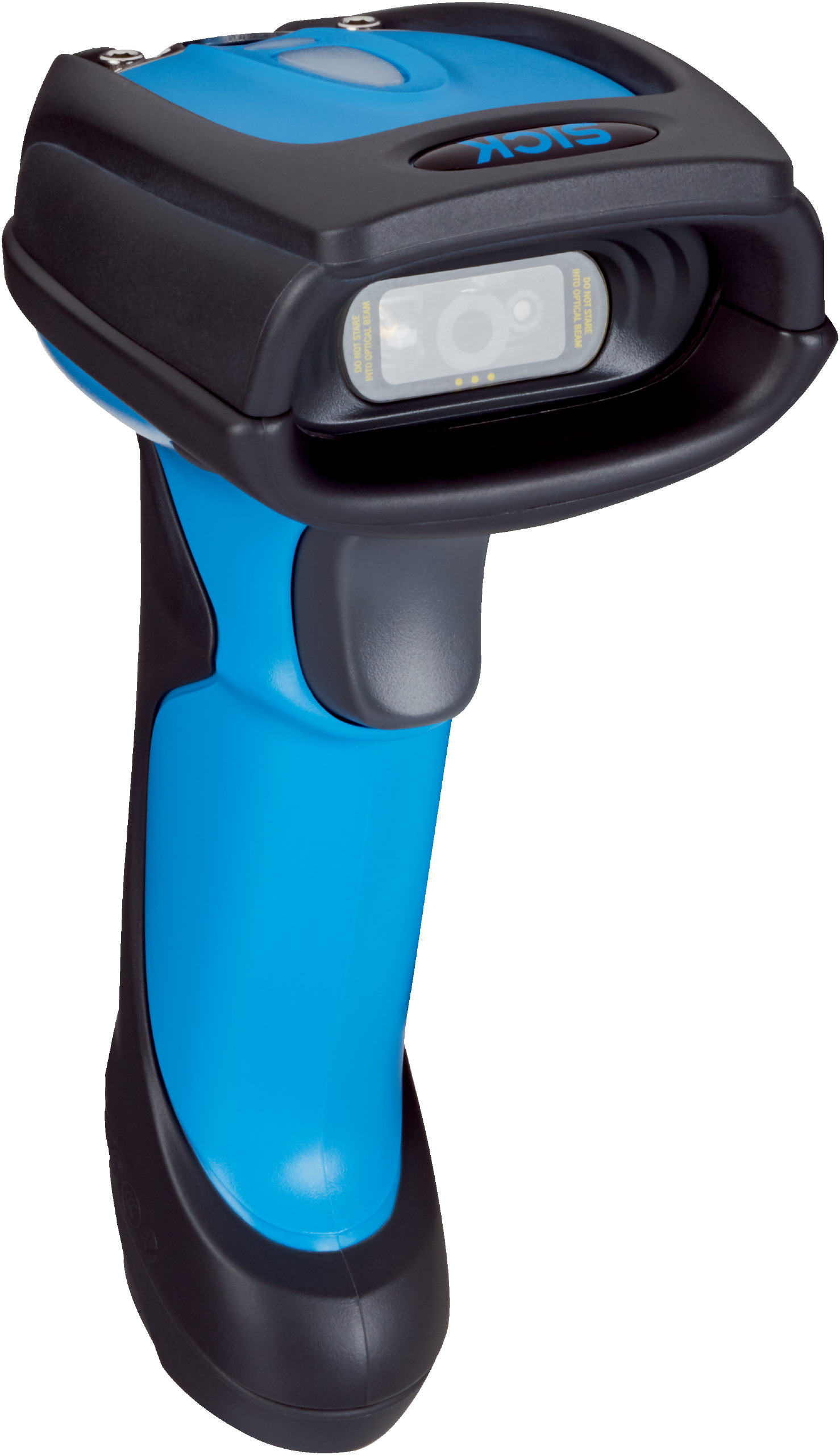

Profinet-TCP/IP Barcode Scanner Set | 1280 px Resolution | IP65 Rated | Wireless Range 100 m | by SICK
The Profinet-TCP/IP Barcode Scanner Set is designed for industrial applications, featuring a high sensor resolution of 1280 px x 800 px and robust IP65 rated housing. Ideal for reliable wireless scanning in manufacturing and logistics, this handheld scanner supports multiple interfaces and offers a wireless range of up to 100 m, ensuring seamless integration with existing Profinet networks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: Red LED 660 nm
- Alignment aid: Red laser 630 nm, Laser class 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 5%
- Current consumption: 750 mA operation, 175 mA standby
- Enclosure rating: IP65
- Weight: 208 g including UltraCap™ rechargeable battery
- MTBF: 100,000 hours
- Wireless range: up to 100 m free view
- Interfaces: Ethernet TCP/IP, PROFINET, EtherCAT, PROFIBUS DP, USB, Bluetooth 4.0
- Code buffer: 5,000 codes in batch mode, 100,000 codes for out of range scanning
- Shock resistance: 50 drops from 2 m height on concrete
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Wireless cable-free handheld scanner with UltraCap™ supercapacitor
- High sensor resolution of 1280 px x 800 px
- Reads 1D, 2D, and stacked barcode types including QR, Data Matrix, PDF417
- IP65 rated robust housing for industrial environments
- Wireless operating range up to 100 m (free view)
- Supports multiple interfaces including Ethernet TCP/IP, PROFINET, EtherCAT, PROFIBUS DP, USB, Bluetooth
- Batch scanning function with code buffer for up to 100,000 codes
- Shock resistant to 50 drops from 2 m height on concrete
- LED and laser alignment aids with laser class 1 safety
Professional Installation Requirements
- Professional installation recommended for network integration and configuration using IDM Setup Tool software.
Applications
- Industrial barcode reading applications requiring reliable wireless scanning
- Integration with existing Profinet TCP/IP networks
- Wireless scanning in manufacturing, logistics, and warehouse environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Wireless operation reduces cable waste and installation complexity
- UltraCap™ supercapacitor technology enables longer device life and reduces battery waste
- Energy-efficient scanning reduces power consumption in industrial settings
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IDM261E-411S Profinet-TCP/IP Set is available for immediate purchase, ideal for industrial barcode scanning and network integration applications.
