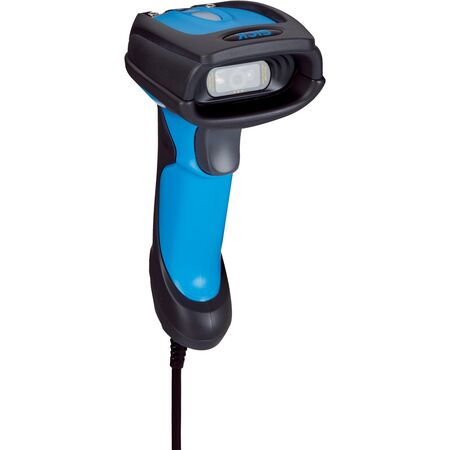

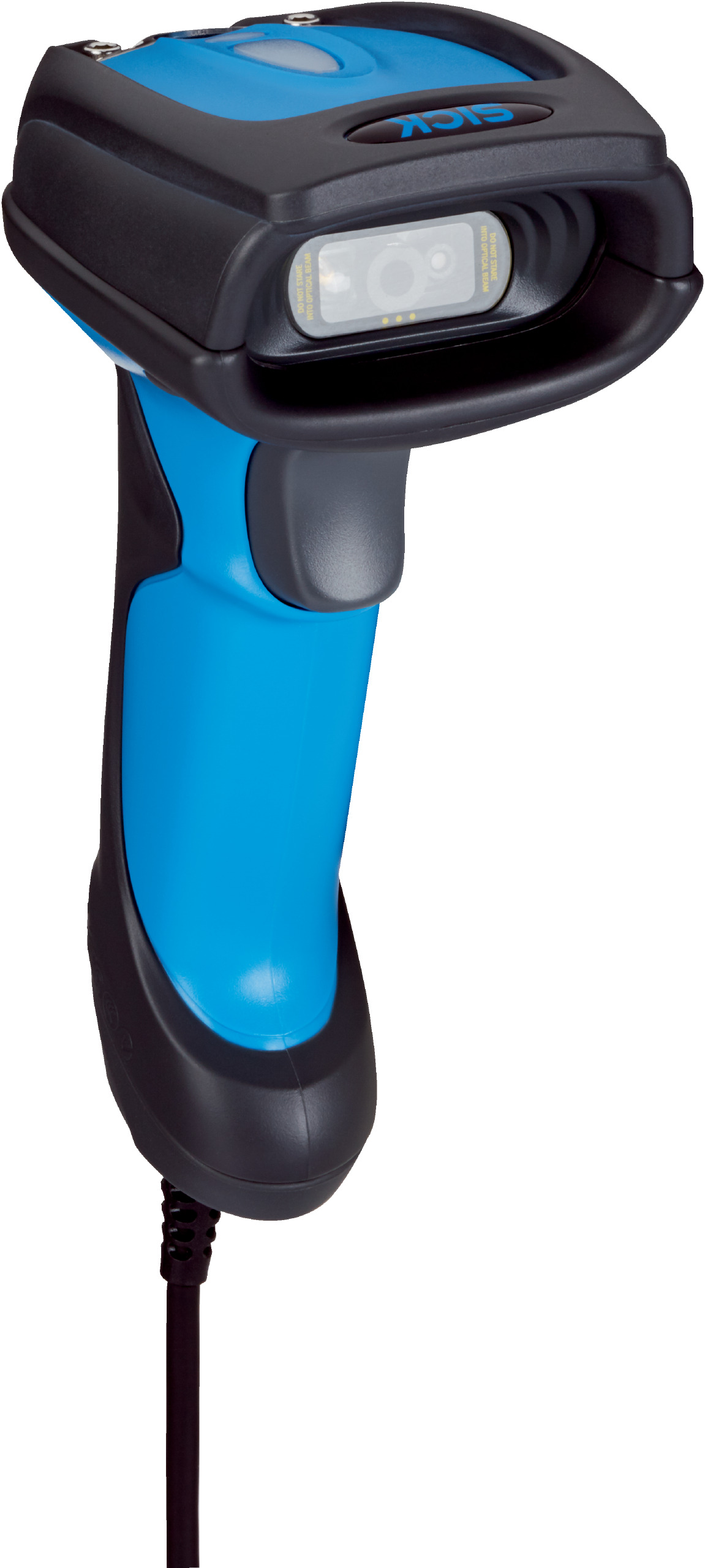

Profinet-TCP/IP Barcode Scanner Set | 1280 px Resolution | IP65 Rated | by SICK
The Profinet-TCP/IP Barcode Scanner Set features a high sensor resolution of 1280 px x 800 px and an IP65 rated enclosure, making it perfect for industrial applications. With a reading distance of 30 mm to 400 mm and support for various barcode types, this scanner is designed for seamless integration into existing Profinet TCP/IP networks, ensuring reliable performance in factory automation and logistics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1280 px x 800 px
- Light source: LED, visible red, 660 nm
- Alignment aid: Laser, red, 630 nm
- Laser class: 1 (EN/IEC 60825-1:2014)
- Reading distance: 30 mm to 400 mm
- Code resolution: ≥ 0.07 mm (1D), ≥ 0.13 mm (2D)
- Supply voltage: 5 V DC ± 10%
- Current consumption: 395 mA (operation without vibration), 420 mA (operation with vibration), 220 mA (standby)
- Enclosure rating: IP65
- Weight: 208 g without cable
- Dimensions: 104 mm x 76.3 mm x 176 mm
- MTBF: 100,000 hours
- Readable code structures: 1D, 2D, stacked codes
- Supported barcode types: Code 39, Code 128, GS1-128, Codabar, UPC/EAN, QR code, Data Matrix, PDF417, and more
- Interfaces: Ethernet TCP/IP, PROFINET, EtherCAT, RS-232, PROFIBUS DP
- Indicators: 2 LEDs, beeper, vibration
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +70°C
- Relative humidity: 95% non-condensing
- Ambient light immunity: 100,000 lx
- Shock resistance: 50 drops from 2 m height on concrete
- Dimensions (H x L x W): 176mm x 104mm x 76mm
- Weight: 0.208 kg
Key Features
- Includes IDM260-411S cable-bound mobile handheld scanner and CDF600 Profinet TCP/IP module
- High sensor resolution of 1280 px x 800 px
- Red LED light source (660 nm) and red laser alignment aid (630 nm)
- Laser class 1 compliant (EN/IEC 60825-1:2014)
- Reading distance from 30 mm to 400 mm
- Supports 1D, 2D, and stacked barcode types
- IP65 rated enclosure for dust and water resistance
- Shock resistant to 50 drops from 2 m height on concrete
- Multiple interface options including Ethernet TCP/IP, PROFINET, EtherCAT, RS-232, and PROFIBUS DP
- Optical, acoustic, and vibration indicators for operational status
- Configuration via IDM Setup Tool software
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration with existing industrial networks and compliance with safety standards.
Applications
- Industrial applications requiring reliable and efficient barcode reading
- Integration into existing Profinet TCP/IP networks
- Factory automation and logistics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP65 rated housing reduces need for frequent replacements
- Energy-efficient operation with low current consumption
- Supports digital workflows reducing paper usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IDM260-411S CDF600 Profinet-TCP/IP Kit is available for immediate purchase, ideal for industrial barcode scanning and network integration applications.
