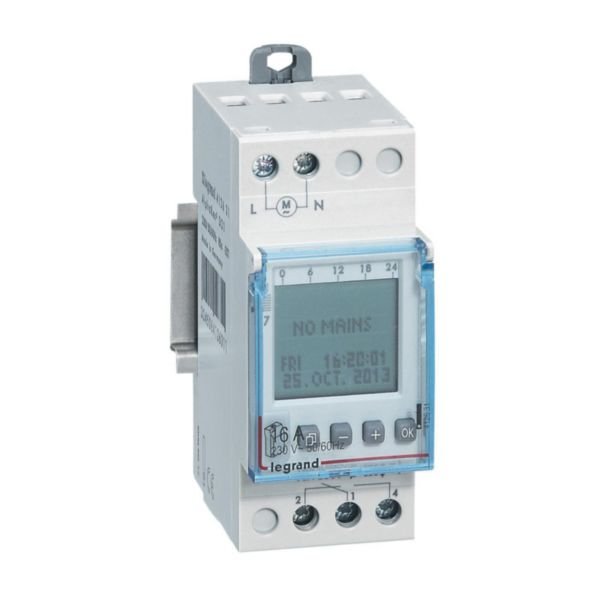

Programmable Digital Time Switch | 230V AC | 56 Programs & 16A Capacity | @Each of 1 | by Legrand
The Programmable Digital Time Switch is designed for efficient control of electrical loads, featuring 56 programmable memory locations and a 16A switching capacity. Ideal for residential and small commercial applications, it automates scheduling for lighting, heating, and ventilation, ensuring energy savings and convenience. With support for 15 languages and a user-friendly keypad, this multifunction timer is perfect for enhancing energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Programmable Digital Time Switch | 230V AC | 56 Programs & 16A Capacity | @Each of 1 | by Legrand
Brand: Legrand
SKU: 412631
Alternatively Known As: Digital Weekly Time Switch, Programmable Timer Switch, Multifunction Time Controller, Legrand Time Switch 230V
Technical Specifications
- Supply Voltage: 230 V AC, 50/60 Hz
- Number of Channels: 1
- Nominal Switching Current: 16 A at 250 V AC
- Memory Locations: 56
- Accuracy: 0.1 seconds per day
- Operating Temperature: -20°C to 55°C
- Degree of Protection: IP20
- Mounting: DIN rail
- Contact Type: Change-over (NO/NC), potential free
- Programming: Direct keypad or program transfer key
- Languages Supported: 15
- Battery: Lithium CR2477 (non-rechargeable) with 6 year reserve
- Functions: Weekly, 24h, holiday, random, cycle programs, hour meter, automatic summer/winter time
- Dimensions (H x L x W): 83mm x 67mm x 36mm
- Weight: 0.1 kg
Key Features
- Digital weekly time switch with 1 channel and 16A switching capacity
- 56 programmable memory locations for flexible scheduling
- Multifunction with temporary or permanent override options
- Supports 15 languages and text guidance on display
- Programs can be set directly via keypad or transferred using a program key
- Includes random cycle function and hour meter
- Automatic summer/winter time switching
- Change-over contact (NO/NC) with potential free switch contact
- Quartz controlled with mains synchronous operation
- Operating temperature range from -20°C to 55°C
- Halogen free and grey RAL 7035 color
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Residential and small commercial electrical panels
- Control of lighting, heating, ventilation, and other electrical loads
- Automated scheduling for energy management and convenience
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables energy savings through precise scheduling of electrical loads
- Reduces unnecessary power consumption by automating device operation
- Supports sustainable energy management in residential and commercial settings
Warranty Information
Standard manufacturer warranty applies; please refer to Legrand for specific warranty terms.
Available Now
The Legrand Programmable Digital Time Switch 230V Multifunction 56 Programs is available for immediate purchase, ideal for residential and small commercial panel control applications.
