Programmable Sensor Interface Module | 4 Core PowerPC CPU | 2 GB RAM | IP20 Rated | by SICK

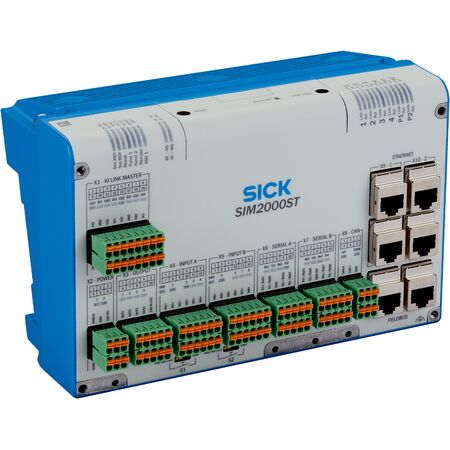

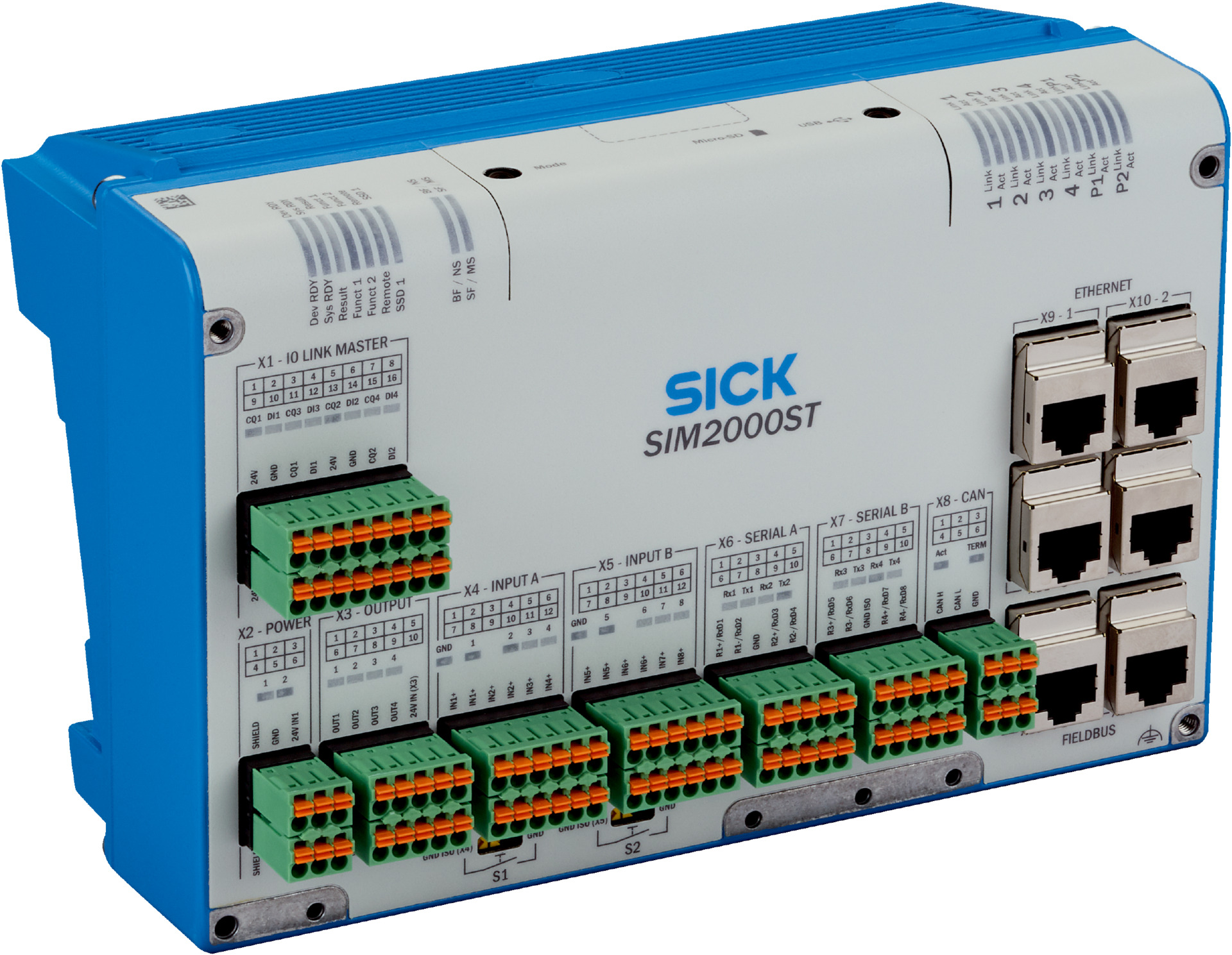

The Programmable Sensor Interface Module SIM2000-0A20A00 features a powerful 4 Core PowerPC CPU and 2 GB RAM, making it ideal for industrial automation and sensor integration applications. With multiple connection options and programmable via SICK AppStudio, it supports efficient sensor integration while ensuring durability with its aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 81mm x 137mm x 196mm
- Weight: 1.532 kg
Key Features
- First generation programmable sensor interface
- 4 Core PowerPC CPU for high processing power
- 2 GB RAM and 512 MB flash memory with 427 MB available for applications
- Programmable via SICK AppStudio within SICK AppSpace environment
- Includes SICK algorithm API toolkit
- FPGA for I/O handling and dedicated fieldbus controller
- Multiple connection options including PowerX1, IO-Link Master, Output, Input A/B, Serial A/B, CAN, Ethernet, Fieldbus, and USB
- Supply voltage 24 V DC ±10%
- Typical power consumption 20 W without connected sensor
- Enclosure rating IP20 and protection class III
- Housing made of aluminum die cast with light blue color (RAL 5012)
- Supports Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, IO-Link, Serial, CAN, and USB interfaces
- Operator interfaces include web server GUI, SICK AppStudio, and SICK AppManager
- Optional industry-grade microSD memory card support up to 32 GB
- Digital inputs/outputs configurable including IO-Link Master
Professional Installation Requirements
- Installation and programming should be performed by qualified professionals familiar with industrial sensor systems and network configurations.
Applications
- Integration with 2D and 3D LiDAR sensors
- Image-based code reading and barcode scanning
- RFID read/write device interfacing
- Displacement measurement sensor applications
- Incremental and absolute encoder interfacing
- Photoelectric sensor integration
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient sensor integration reducing system complexity and energy consumption
- Enables precise measurement and control improving resource management
- Durable aluminum housing enhances product longevity reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK SIM2000-0A20A00 Programmable Sensor Interface Module is available for immediate purchase. Ideal for industrial automation and sensor integration applications.
