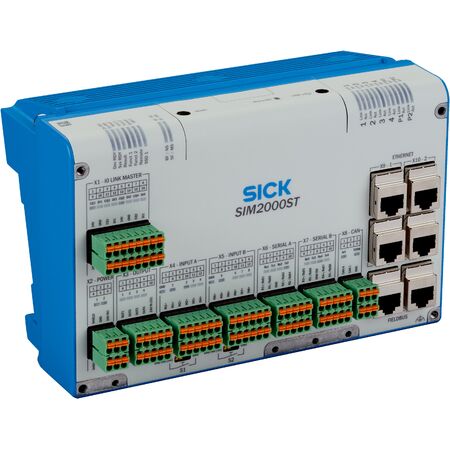

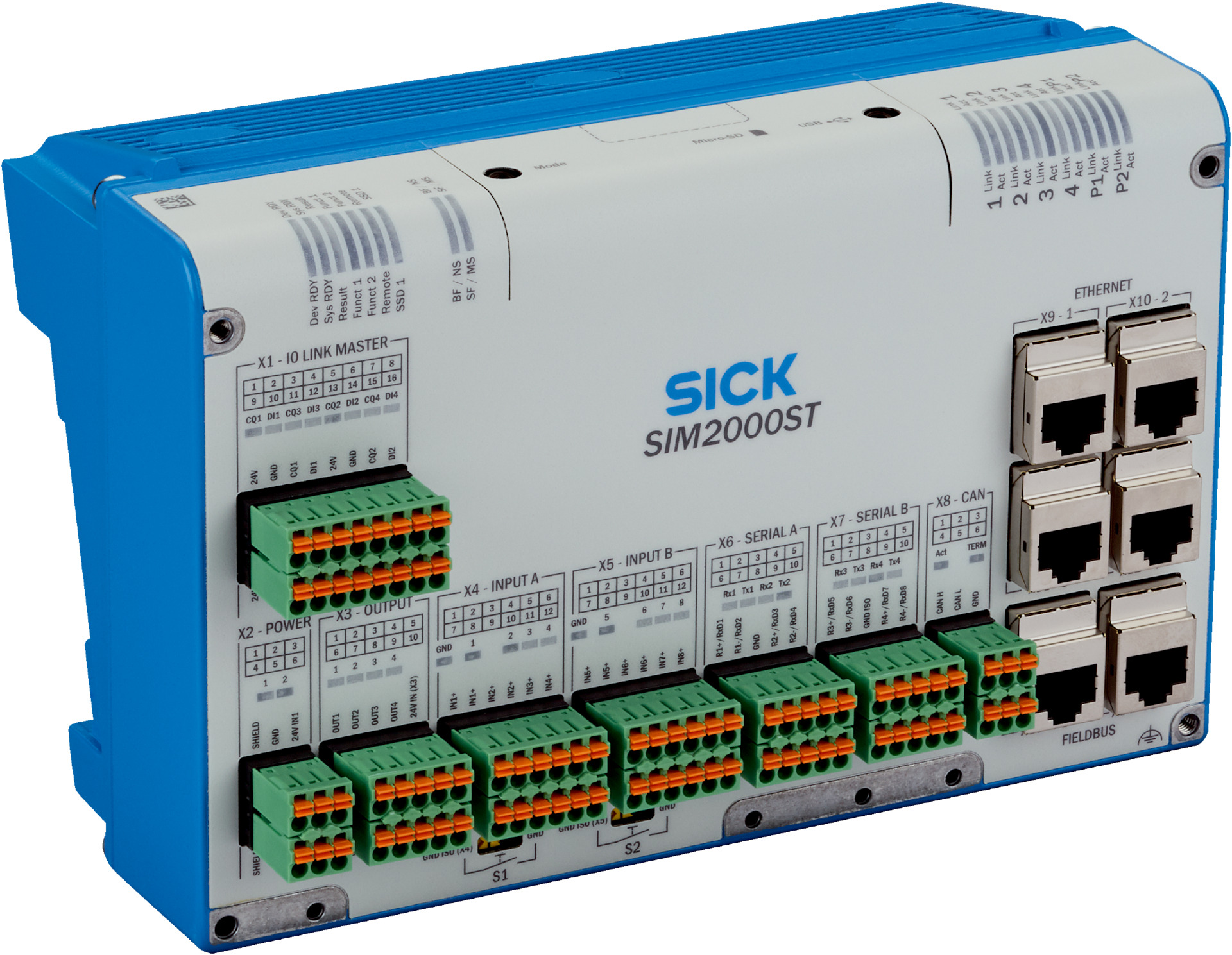

Programmable Sensor Interface SIM2000 | 4 Core PowerPC CPU | 2 GB RAM & 512 MB Flash | IP20 Rated | by SICK
The Programmable Sensor Interface SIM2000 is designed for seamless integration with various sensors, featuring a powerful 4 Core PowerPC CPU, 2 GB RAM, and 512 MB flash memory. Ideal for industrial automation, it supports multiple connection options and is programmable via SICK AppStudio, enhancing operational efficiency and reducing system complexity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 81mm x 137mm x 196mm
- Weight: 1.5 kg
Key Features
- First generation programmable sensor interface
- 4 Core PowerPC CPU for high processing power
- 2 GB RAM and 512 MB flash memory with 427 MB available for applications
- Programmable via SICK AppStudio within SICK AppSpace environment
- Includes SICK algorithm API toolkit
- FPGA for I/O handling and dedicated fieldbus controller
- Multiple connection options including PowerX1, IO-Link Master, Output, Input A/B, Serial A/B, CAN, Ethernet, Fieldbus, and USB
- Supply voltage 24 V DC ±10%
- Typical power consumption 20 W without connected sensor
- Enclosure rating IP20 with aluminum die cast housing
- Supports Ethernet (TCP/IP, FTP, OPC UA, MQTT), PROFINET, EtherNet/IP™, EtherCAT®, IO-Link, Serial, CAN, and USB interfaces
- Digital inputs/outputs configurable including IO-Link Master
- Operator interfaces include web server GUI, SICK AppStudio, and SICK AppManager
- Supports image and data logging via optional microSD card up to 32 GB
Professional Installation Requirements
- Installation and programming should be performed by qualified professionals familiar with industrial sensor systems and network configurations.
Applications
- Integration with 2D and 3D LiDAR sensors
- Image-based code reading and barcode scanning
- RFID read/write device interfacing
- Displacement measurement sensor integration
- Incremental and absolute encoder interfacing
- Photoelectric sensor applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Supports efficient sensor integration reducing system complexity and energy consumption
- Enables precise sensor data processing improving operational efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SIM2000-0A10A00 Programmable Sensor Interface is available for immediate purchase. Ideal for industrial automation and sensor integration applications.
