Linergy, Screw Terminal, Protective Earth, 2 Points, 2,5mm², Green-Yellow

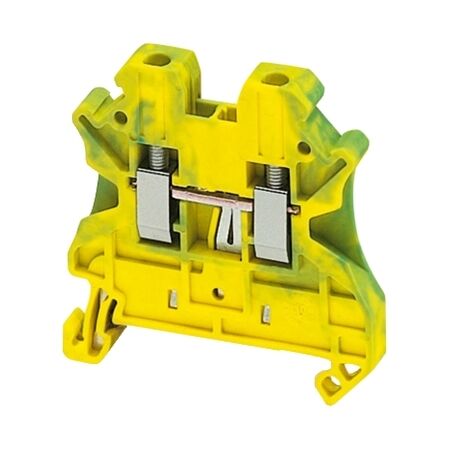

Protective Earth Terminal Block | 2 Points | 2.5mm² | Green-Yellow by Clipsal

BRAND: Clipsal

SKU: NSYTRV22PE

$7.90 List price: $9.80

+ −

30 Days Return Delivery Options

Protective earth terminal block with 2 points and 2.5mm² capacity—ideal for industrial electrical installations. Built for secure connections, with screw terminals and high temperature tolerance.

Description
Attachments

Product Name/Title: Linergy, Screw Terminal, Protective Earth, 2 Points, 2,5mm², Green-Yellow

Brand: Clipsal

SKU: NSYTRV22PE

Alternatively Known As: Protective Earth Terminal Block, Screw Terminal Block, Linergy Terminal Block

Technical Specifications

Product type: Terminal block
Number of terminals: 2
Nominal cross section: 2.5 mm²
Connections: 1 x screw terminal upstream, 1 x screw terminal downstream
Wire stripping length: 9 mm
Tightening torque: 0.5...0.6 N.m
Dielectric strength: 1000 V conforming to IEC 60243-1
Material: Polyamide 6/6 insulating case
Dimensions (H x L x W): 47.5mm x 47.7mm x 5.2mm
Weight: 0.1 kg

Key Features

Designed for protective earth connections with screw terminals.
Compatible with various PrismaSeT and TeSys enclosures.
High operational temperature range from -40 to 130 °C.

Professional Installation Requirements

Professional installation is recommended for optimal safety and compliance.

Applications

Industrial: Electrical installations, control panels, and enclosures

Standards & Compliance

Complies with relevant IEC and VDE standards.

Environmental Benefits

Halogen-free plastic parts contribute to safer disposal.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Linergy Screw Terminal Protective Earth Block is available now for immediate purchase. Ideal for industrial electrical installations.

NSYTRV22PE (NSYTRV22PE, 278 Kb) [Download]
