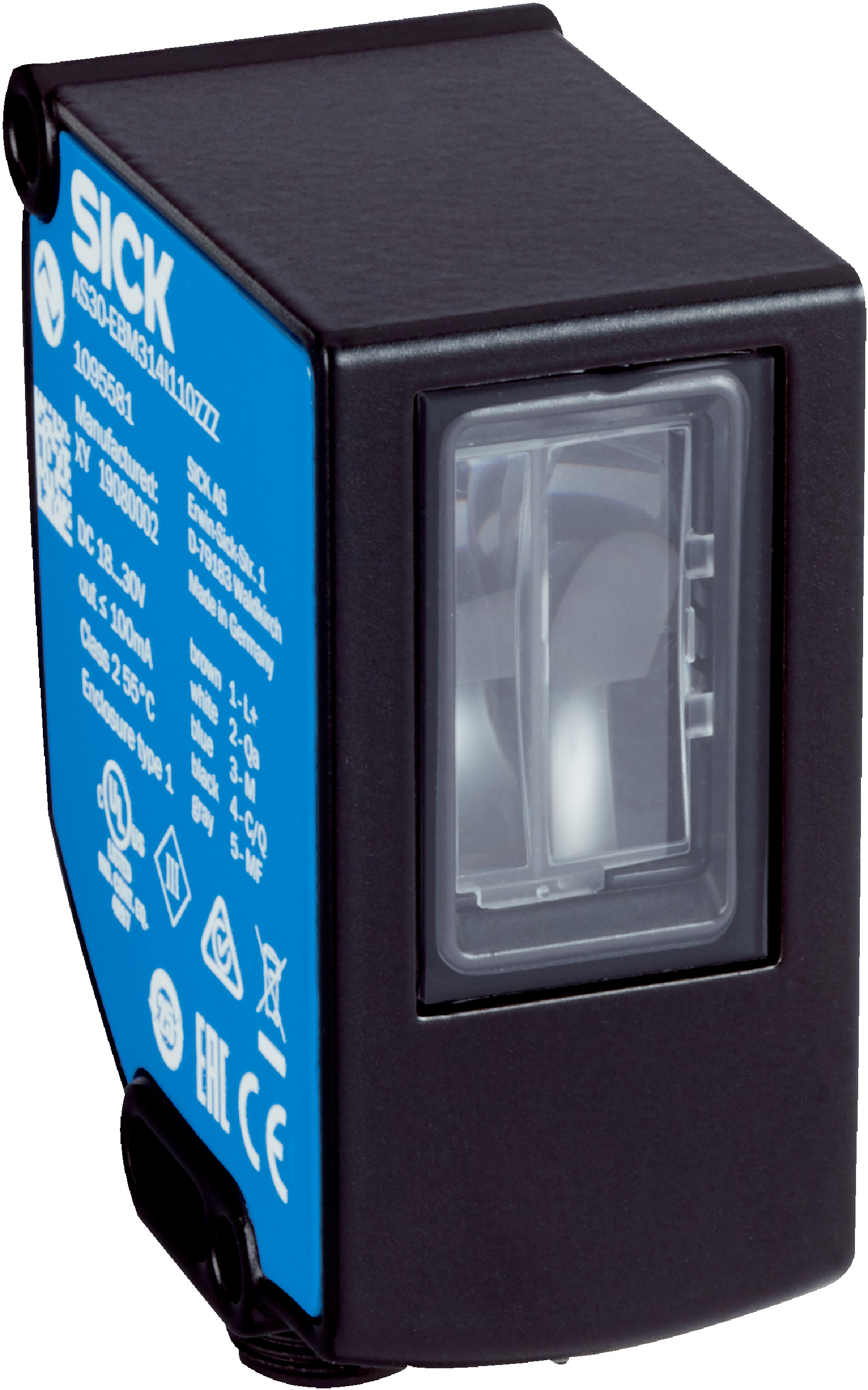

Proximity Sensor AS30-EBM314I220A00 | Reflector Mode | Web Guiding & Positioning | High Resolution | by SICK
The Proximity Sensor AS30-EBM314I220A00 is designed for web guiding and positioning in industrial automation, featuring a sensing distance of up to 25 mm and a high resolution of 1 µm. With its robust zinc diecast housing and IP67 protection rating, this sensor is perfect for precision measurement and object detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Measurement range: 30 mm
- Minimum detectable object: 0.2 mm
- Light source: LED, White (400 nm to 700 nm)
- Light spot size: 38.9 mm x 11.1 mm
- Repeatability: 0.03 mm
- Linearity: ± 2 %
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding and positioning functional principle
- Sensing distance up to 25 mm with working range 20 mm to 30 mm
- High resolution of 1 µm and repeatability of 0.03 mm
- LED white light source with wavelength 400 nm to 700 nm
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration and adjustment
- Robust zinc diecast housing with IP67 protection rating
- Operating temperature range from -10 °C to +55 °C
- Short initialization time of 0.48 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and object detection in manufacturing processes
- Use in environments requiring robust and reliable proximity sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-EBM314I220A00 proximity sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
