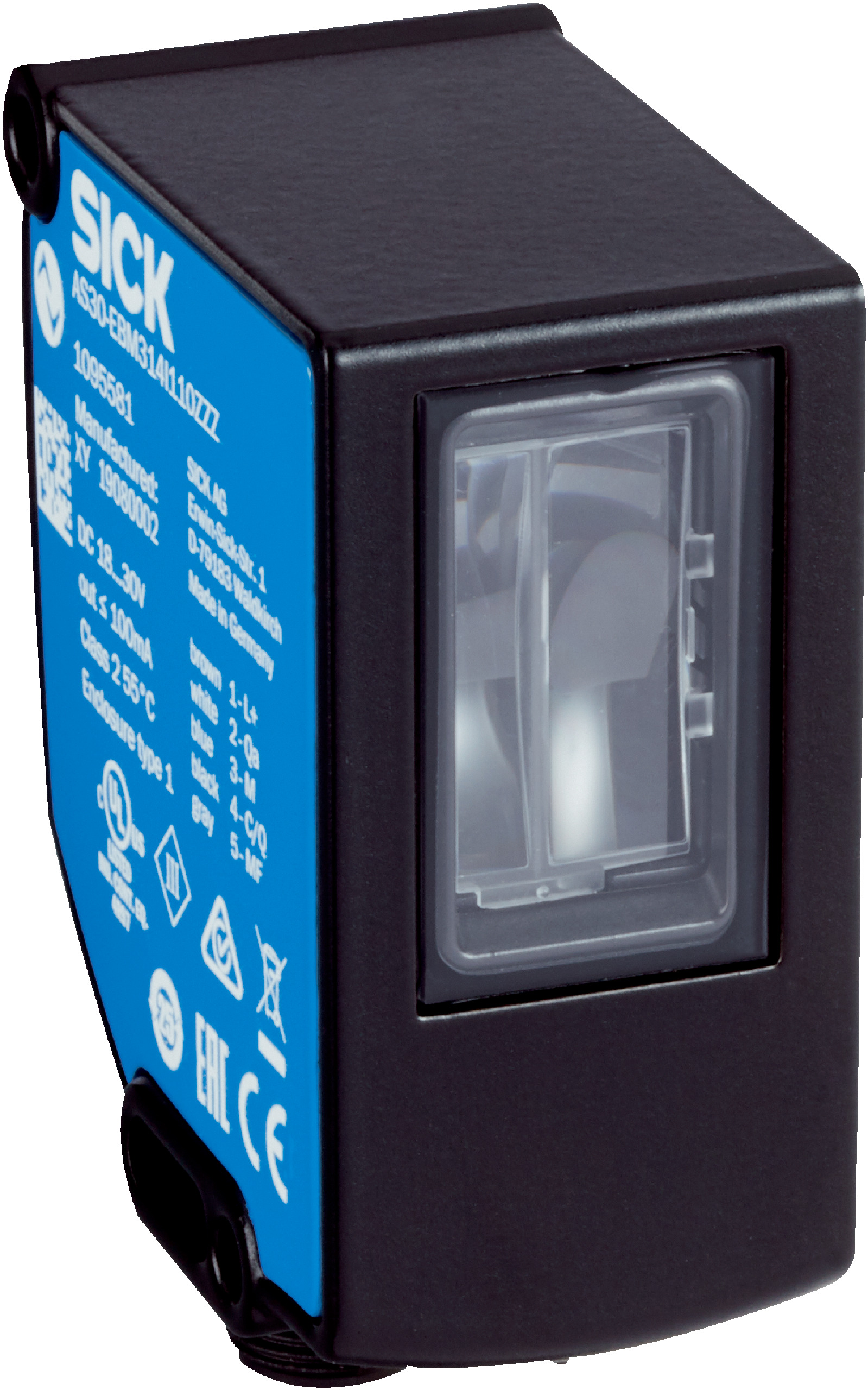

Proximity Sensor AS30-EBM314I220C00 | Reflector Mode | IP67 Rated | High Resolution 1 µm | by SICK
The AS30-EBM314I220C00 proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 25 mm and a high resolution of 1 µm. With its robust IP67-rated housing and LED light source, this sensor is perfect for industrial automation environments, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Minimum detectable object: 0.2 mm
- Light source: White LED, wavelength 400 nm to 700 nm
- Light spot size: 38.9 mm x 11.1 mm
- Repeatability: 0.03 mm
- Linearity: ± 2 %
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection: Male M12, 5-pin connector
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast with anti-reflex coating optics
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding and positioning functional principle
- Sensing distance up to 25 mm with 20 mm working range
- High resolution of 1 µm and repeatability of 0.03 mm
- LED white light source with wavelength 400 nm to 700 nm
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration
- Robust zinc diecast housing with IP67 protection
- Operating temperature range from -10 °C to +55 °C
- Short-circuit and reverse polarity protected circuitry
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor alignment and secure electrical connections.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and detection in manufacturing processes
- Use in environments requiring robust IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-EBM314I220C00 proximity sensor is available for immediate purchase, ideal for industrial automation and precision positioning applications.
