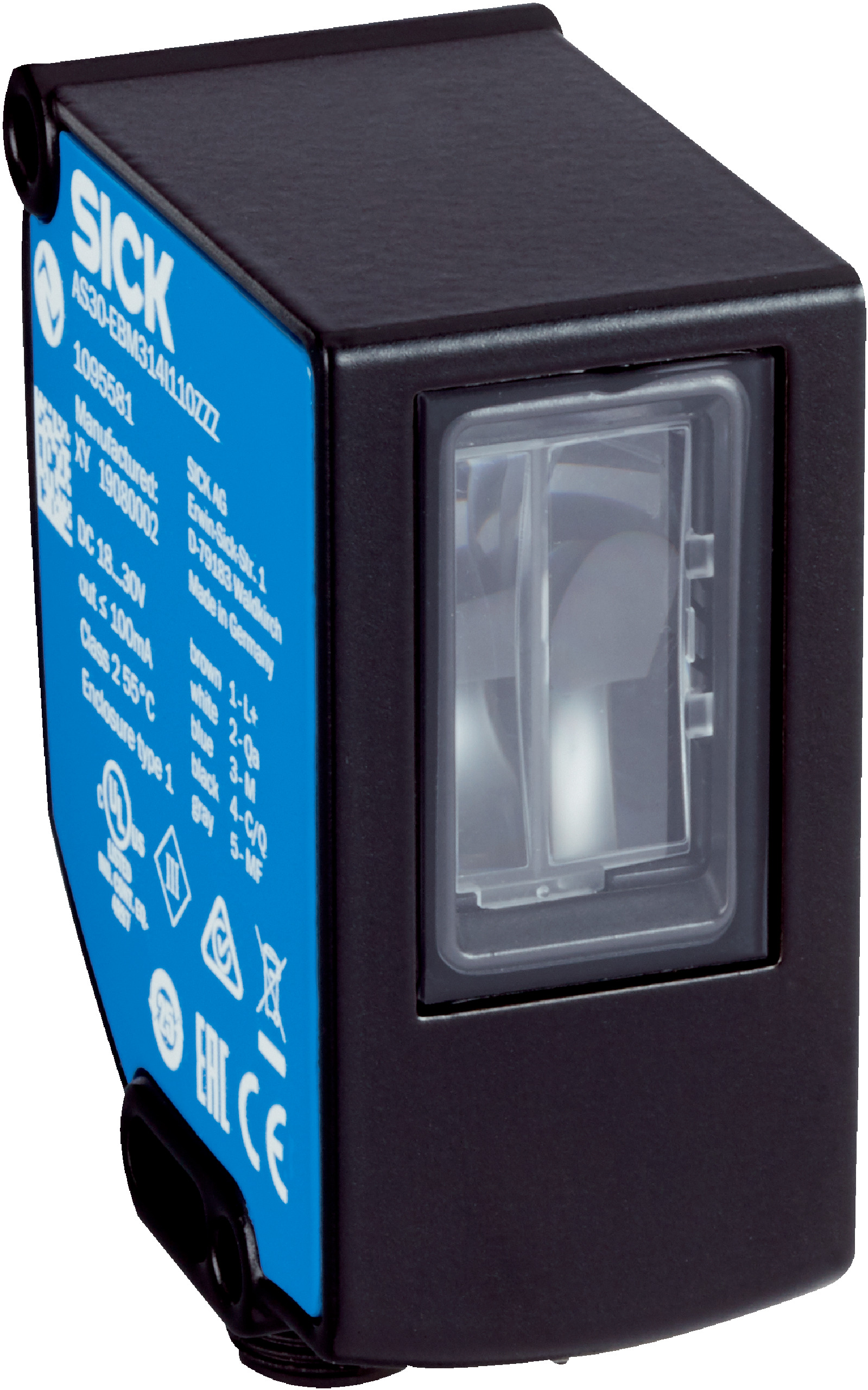

Proximity Sensor AS30-EBM314I220C00 | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-EBM314I220C00 proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 25 mm and a high resolution of 1 µm. With its robust IP67-rated housing and LED white light source, this sensor is perfect for industrial automation environments, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Minimum detectable object: 0.2 mm
- Light source: LED, White (400 nm to 700 nm)
- Light spot size: 38.9 mm x 11.1 mm
- Repeatability: 0.03 mm
- Linearity: ± 2%
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Ambient operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding and positioning functional principle
- Sensing distance up to 25 mm with a working range of 20 mm to 30 mm
- High resolution of 1 µm and repeatability of 0.03 mm
- LED white light source with wavelength 400 nm to 700 nm
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration and adjustment
- Robust zinc diecast housing with IP67 enclosure rating
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and detection in manufacturing processes
- Use in environments requiring robust sensor performance with IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing extends product life, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-EBM314I220C00 proximity sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
