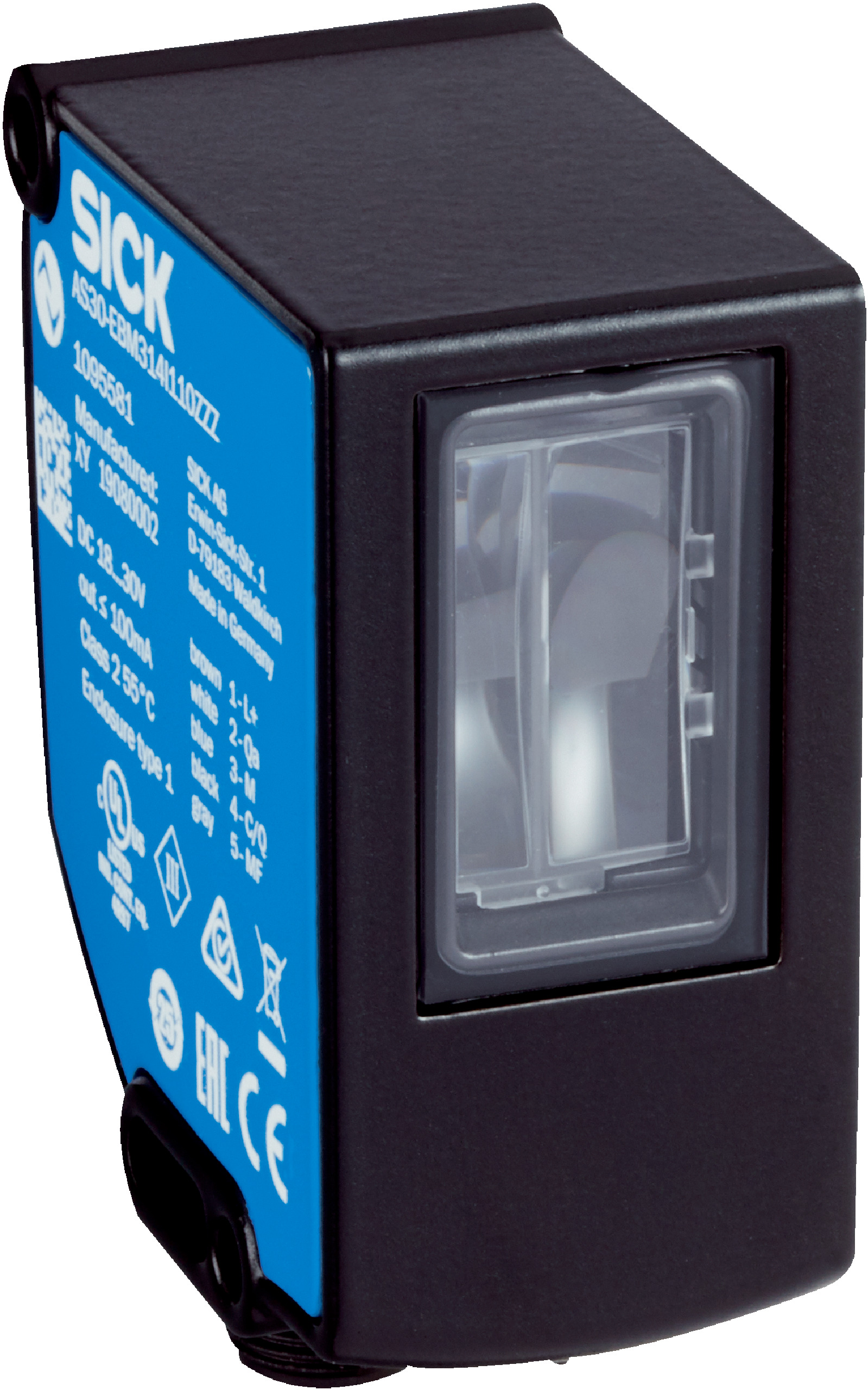

Proximity Sensor AS30-EBM434I110ZZZ | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-EBM434I110ZZZ proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 100 mm and a robust IP67 enclosure. Designed for industrial automation, it offers high repeatability and resolution, making it ideal for precise manufacturing processes. With an energy-efficient white LED light source and IO-Link communication, this sensor ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 45 mm
- Minimum detectable object: 1.2 mm
- Light source: White LED
- Wavelength: 400 nm to 700 nm
- Light spot size: 62.4 mm x 12.8 mm
- Repeatability: 0.2 mm
- Linearity: ± 2 %
- Resolution: 0.1 mm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA
- Resolution of analog output: 12 bit
- Output rate of analog output: 1 ms
- Output current max: < 100 mA
- Initialization time: 0.48 s
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Glass
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52.2mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system sensor principle
- Web guiding and positioning functional principle
- Sensing distance up to 100 mm
- Working range between 90 mm and 110 mm
- Measurement range of 45 mm
- Minimum detectable object size of 1.2 mm
- White LED light source with wavelength 400 nm to 700 nm
- High repeatability of 0.2 mm and resolution of 0.1 mm
- IO-Link communication interface with teach-in mode for edge and area detection
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- Robust zinc diecast housing with IP67 enclosure rating
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication protocols.
Applications
- Web guiding and positioning in industrial automation
- Proximity sensing for manufacturing processes
- Edge and area detection in material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-EBM434I110ZZZ proximity sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
