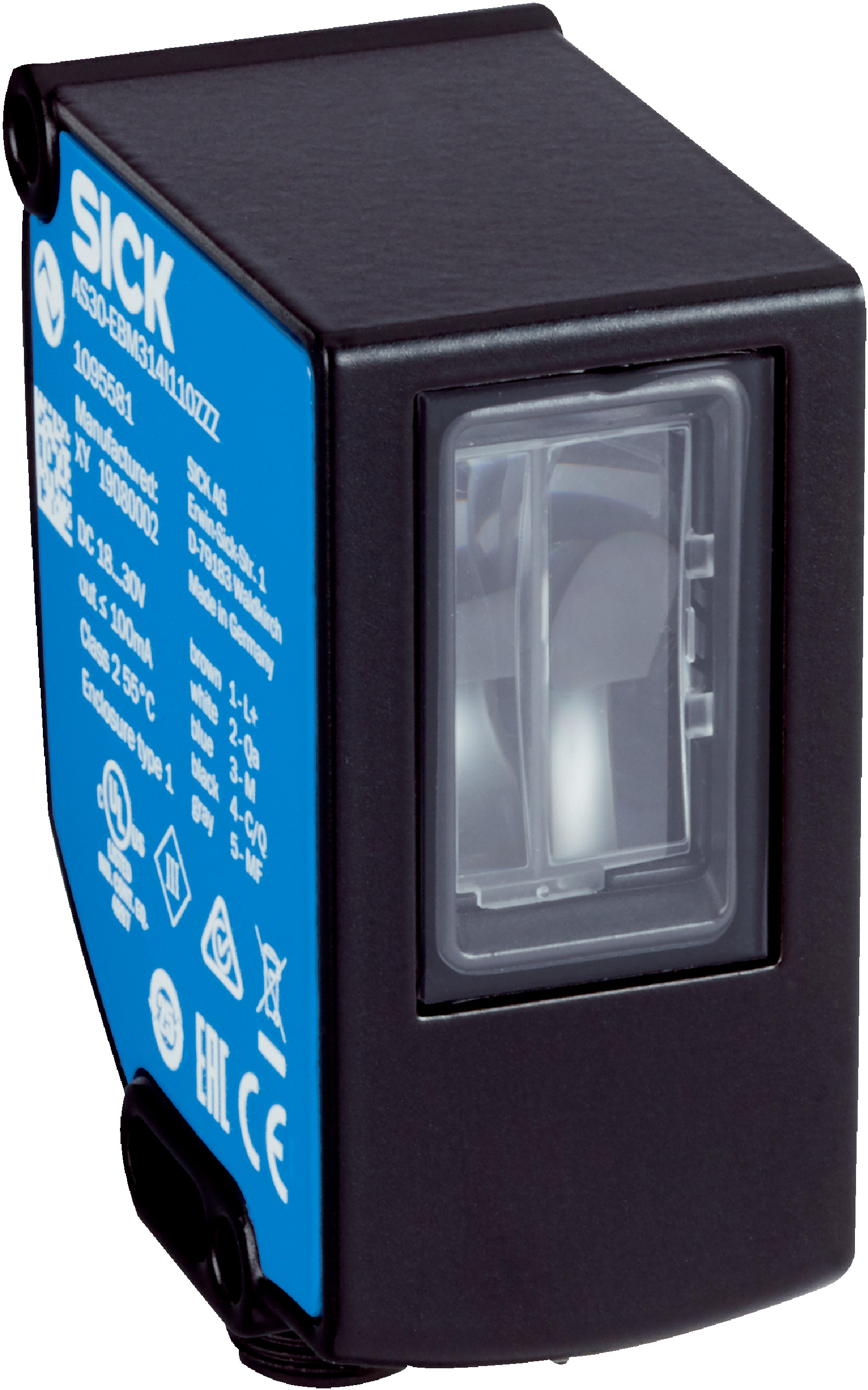

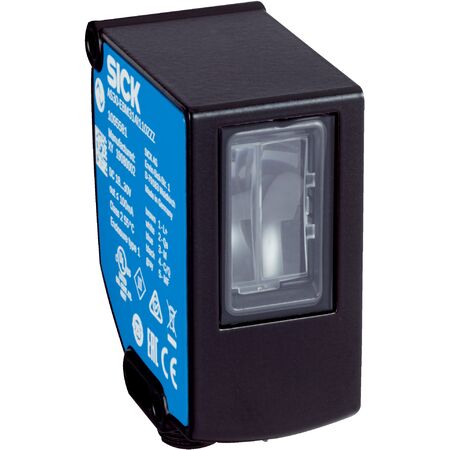

Proximity Sensor AS30-EBM444I110ZZZ | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-EBM444I110ZZZ proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 250 mm and high resolution of 0.1 mm. Designed for industrial automation, this robust sensor with IP67 protection ensures reliable performance in material handling and quality control systems, making it an essential tool for professionals seeking precision and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 250 mm
- Working range: 240 mm to 260 mm
- Measurement range: 45 mm
- Minimum detectable object: 1.2 mm
- Light source: White LED
- Wavelength: 400 nm to 700 nm
- Light spot size: 150 mm x 24 mm
- Repeatability: 0.2 mm
- Linearity: ± 2%
- Resolution: 0.1 mm
- Adjustment: IO-Link with teach-in mode (Edge detection, Area detection)
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 100 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 5 ms
- Output current max: < 100 mA
- Initialization time: 0.48 s
- Connection: Male M12, 5-pin connector
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: IEC 60068 compliant
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity sensor with web guiding and positioning functionality
- Sensing distance up to 250 mm with a working range of 240 mm to 260 mm
- High resolution of 0.1 mm and repeatability of 0.2 mm
- White LED light source with wavelength range 400 nm to 700 nm
- IO-Link communication interface for easy integration and adjustment
- Robust zinc diecast housing with IP67 protection rating
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- Short-circuit protected outputs and reverse polarity protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Web guiding and positioning in industrial automation
- Material handling and processing lines
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing extends product life, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK AS30-EBM444I110ZZZ proximity sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
