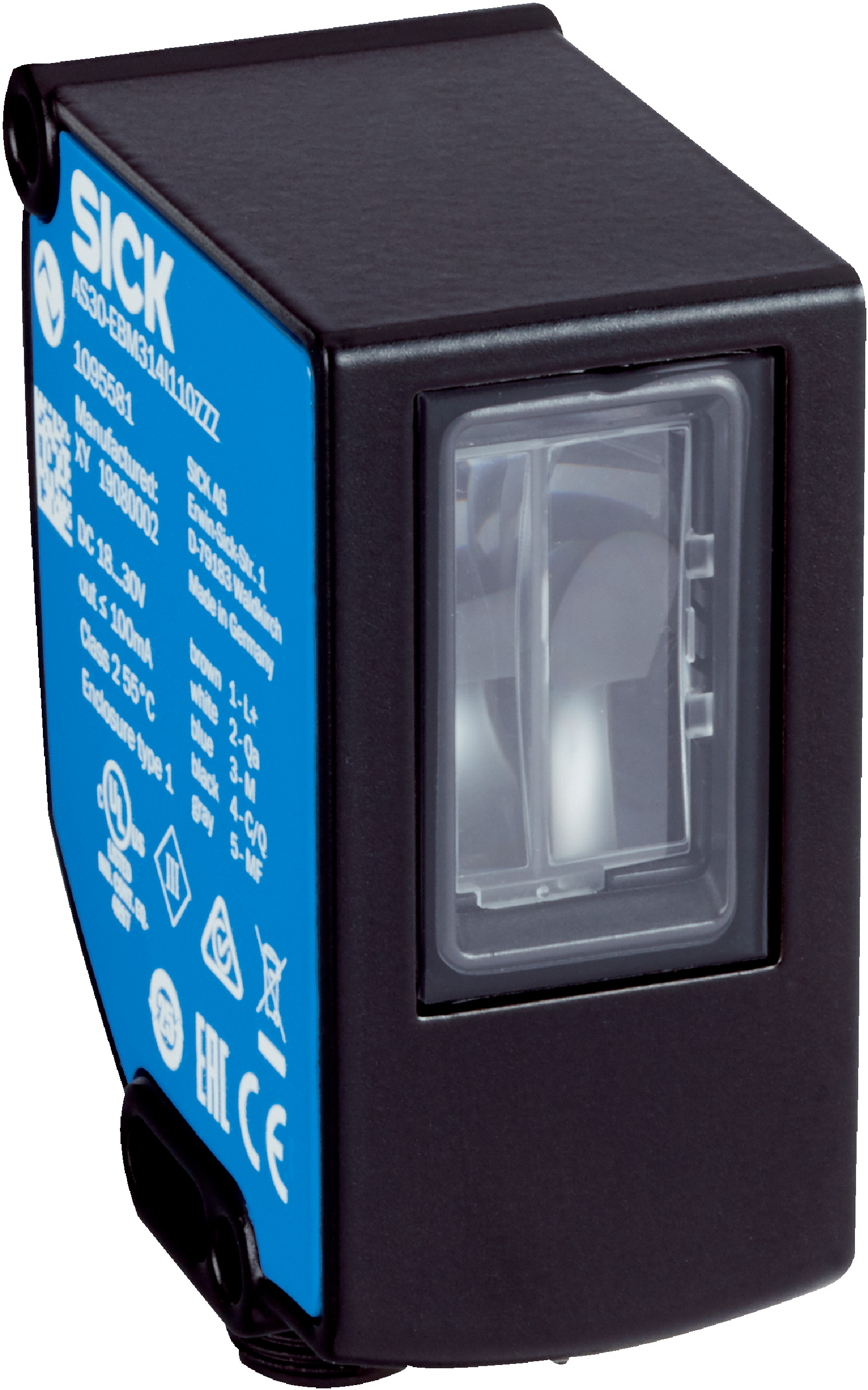

Proximity Sensor AS30-EBM534I220A00 | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-EBM534I220A00 proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 100 mm and high repeatability of 0.05 mm. With an IP67 rated enclosure and robust zinc diecast housing, it’s designed for durability in industrial automation environments, ensuring precise measurement and object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 50 mm
- Minimum detectable object: 0.5 mm
- Light source: LED, White (400 nm to 700 nm)
- Light spot size: 62.5 mm x 13.2 mm
- Repeatability: 0.05 mm
- Linearity: ± 2%
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12-bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding and positioning functional principle
- Sensing distance up to 100 mm
- High repeatability of 0.05 mm
- Resolution of 1 µm
- LED white light source with wavelength 400 nm to 700 nm
- IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output
- Analog output 4 mA to 20 mA with 12-bit resolution
- IO-Link communication interface
- Housing made of zinc diecast with anti-reflex coating optics
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc diecast housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-EBM534I220A00 proximity sensor is available for immediate purchase, ideal for industrial automation and precision web guiding applications.
