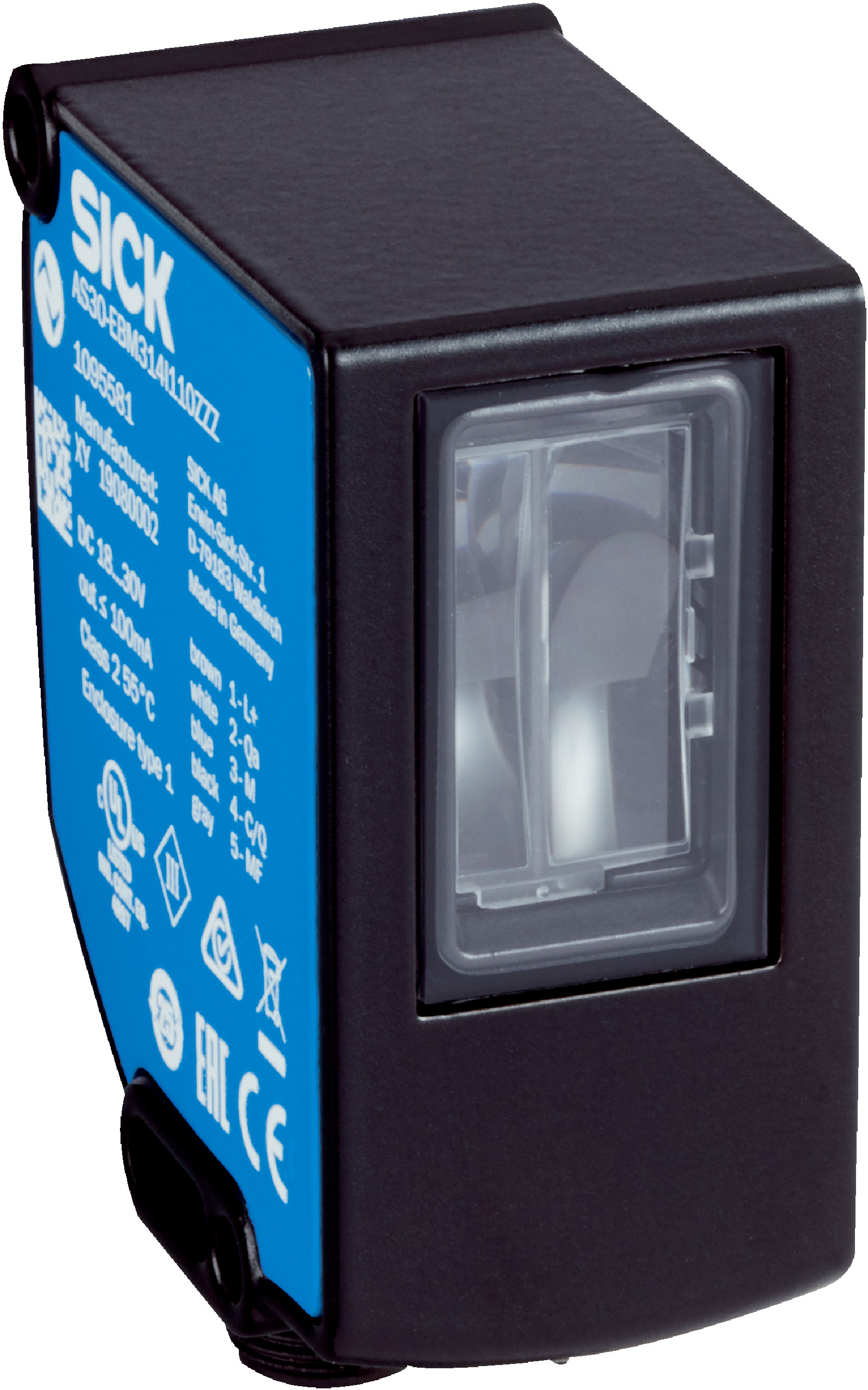

Proximity Sensor AS30-EBM534I220C00 | Reflector Mode | IP67 Rated | High Repeatability | by SICK
The Proximity Sensor AS30-EBM534I220C00 is designed for web guiding and positioning in industrial automation, featuring a sensing distance of up to 100 mm and high repeatability of 0.05 mm. With an IP67 rated enclosure and robust zinc diecast housing, this sensor ensures reliable performance in demanding environments, making it ideal for precision measurement and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 30 mm
- Minimum detectable object: 0.5 mm
- Light source: White LED (400 nm to 700 nm)
- Light spot size: 62.5 mm x 13.2 mm
- Repeatability: 0.05 mm
- Linearity: ± 2%
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection: Male M12, 5-pin connector
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding and positioning functional principle
- Sensing distance up to 100 mm
- Rectangular zinc diecast housing with anti-reflex coating optics
- High repeatability of 0.05 mm and resolution of 1 µm
- IO-Link communication interface for easy integration and adjustment
- IP67 rated enclosure for protection against dust and water
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- Operating temperature range from -10 °C to +55 °C
- Short initialization time of 0.48 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Precision measurement and object detection in manufacturing processes
- Use in environments requiring robust and reliable proximity sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-EBM534I220C00 proximity sensor is available for immediate purchase, ideal for industrial automation and web guiding applications.
