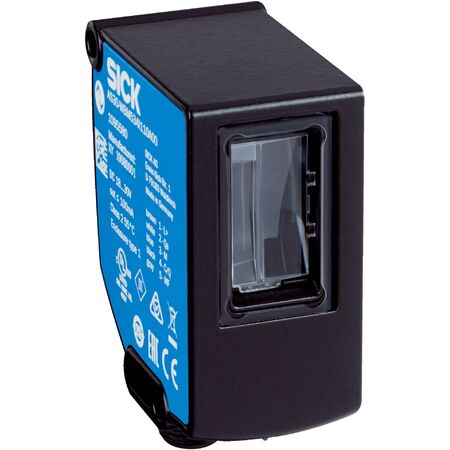

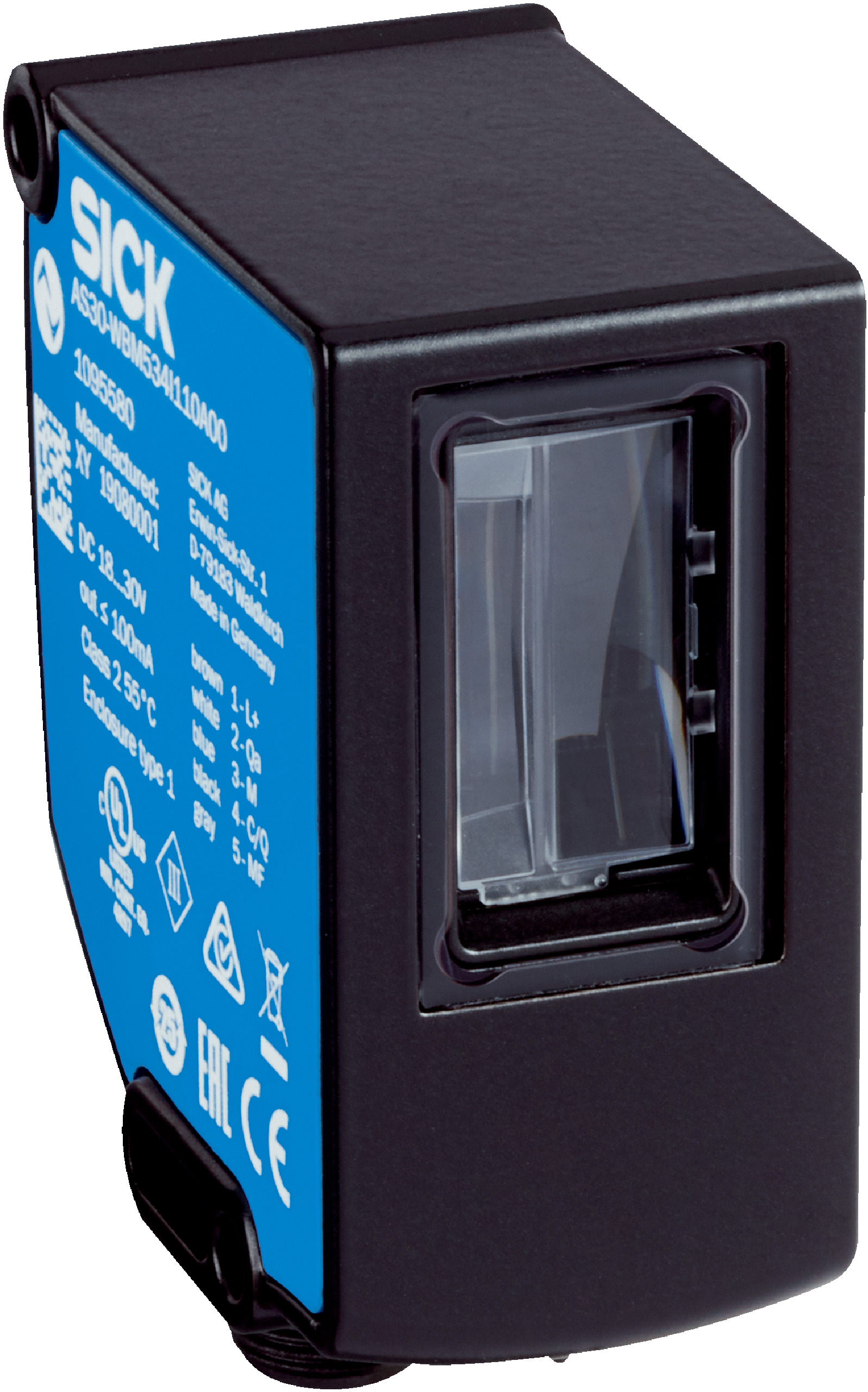

Proximity Sensor AS30-MBM834I320A00 | Multi-Edge Detection | IP67 Rated | by SICK
The AS30-MBM834I320A00 proximity sensor is designed for industrial automation, featuring multi-edge detection and a sensing distance of up to 100 mm. With a robust IP67 rated enclosure and high repeatability of 0.15 mm, it’s perfect for web guiding and positioning systems, ensuring precise width and center point measurement in manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Proximity Sensor AS30-MBM834I320A00 | Multi-Edge Detection | IP67 Rated | by SICK
Brand: SICK
SKU: 1118222
Alternatively Known As: Proximity Sensor, Multi-edge Sensor, IO-Link Sensor, Web Guiding Sensor, Positioning Sensor
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Multi-edge, Web guiding, positioning, Width and center point measurement
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 165 mm
- Minimum detectable object: 2 mm
- Light source: White LED (400 nm to 700 nm)
- Light spot size: 210 mm x 13.2 mm
- Repeatability: 0.15 mm
- Linearity: ±1%
- Resolution: 0.1 mm
- Adjustment: IO-Link with teach-in mode for edge and area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12-bit resolution
- Output rate: 2 ms
- Max output current: < 100 mA
- Connection: Male M12, 5-pin connector
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +75°C
- Dimensions (H x L x W): 62mm x 52.2mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Multi-edge detection and evaluation of up to 8 edges
- Rectangular zinc diecast housing with anti-reflex coated optics
- Sensing distance up to 100 mm with working range 90 mm to 110 mm
- High repeatability of 0.15 mm and resolution of 0.1 mm
- IO-Link communication interface for easy integration
- Push-pull PNP/NPN switching outputs and 4-20 mA analog output
- IP67 rated enclosure for robust protection
- Operating temperature range from -10°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration, especially for IO-Link integration.
Applications
- Industrial automation for multi-edge detection
- Web guiding and positioning systems
- Width and center point measurement in manufacturing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-MBM834I320A00 proximity sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
