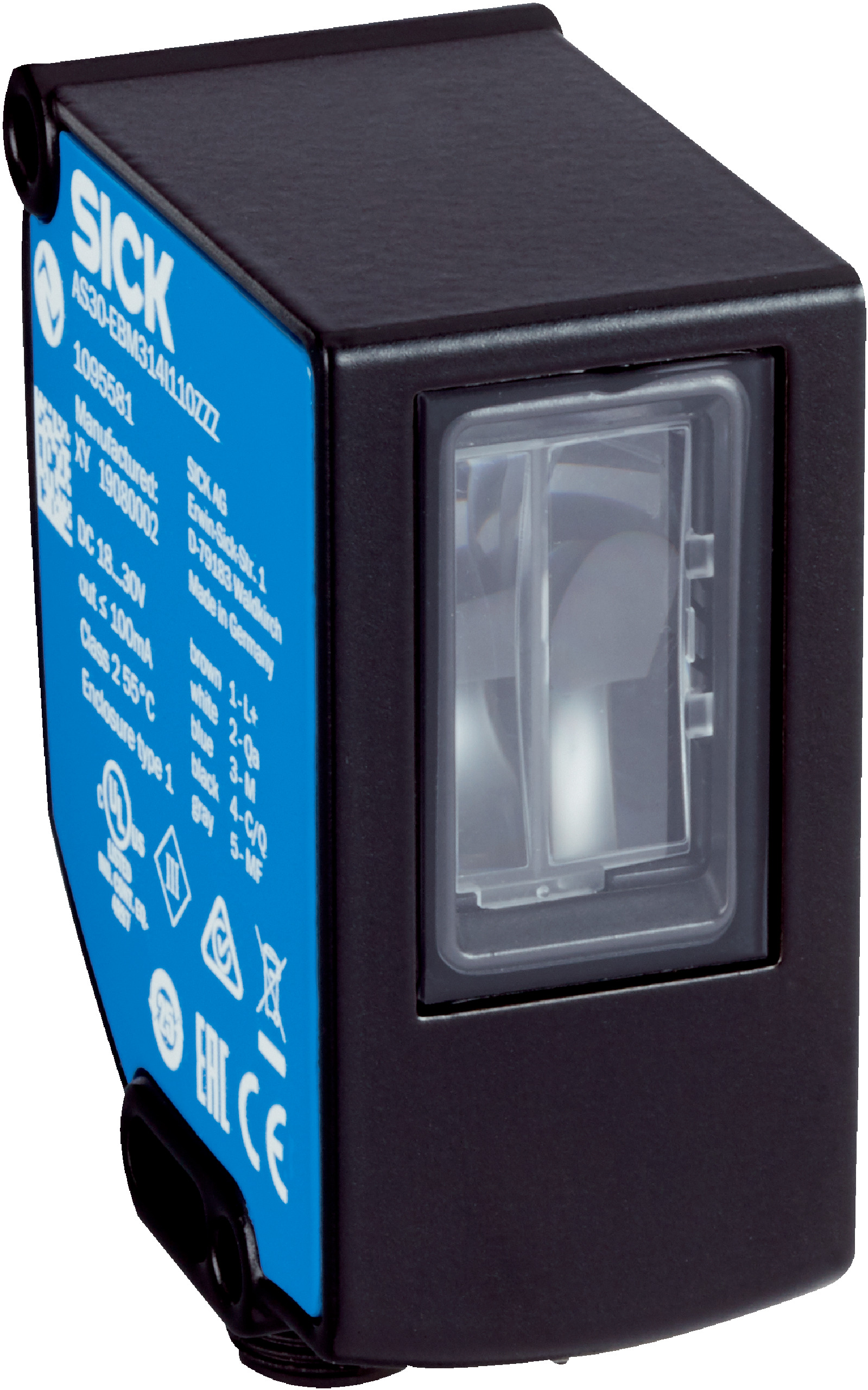

Proximity Sensor AS30-PBM314I110ZZZ | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-PBM314I110ZZZ proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 25 mm and high repeatability of 0.2 mm. Designed for industrial automation, this sensor offers robust IP67 protection and an easy-to-integrate IO-Link communication interface, making it perfect for precision object detection in manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Measurement range: 30 mm
- Minimum detectable object: 0.2 mm
- Light source: LED, White
- Wavelength: 400 nm to 700 nm
- Light spot size: 39 mm x 12.2 mm
- Repeatability: 0.2 mm
- Linearity: ± 2%
- Resolution: 0.1 mm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Initialization time: 0.48 s
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Glass
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system sensor principle
- Positioning functional principle with web guiding
- Sensing distance up to 25 mm
- Rectangular zinc diecast housing with glass optics
- High repeatability of 0.2 mm and resolution of 0.1 mm
- LED white light source with wavelength 400 nm to 700 nm
- IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration
- Short initialization time of 0.48 seconds
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Precision object detection and measurement
- Use in manufacturing lines requiring accurate positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc diecast housing extends product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-PBM314I110ZZZ proximity sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
