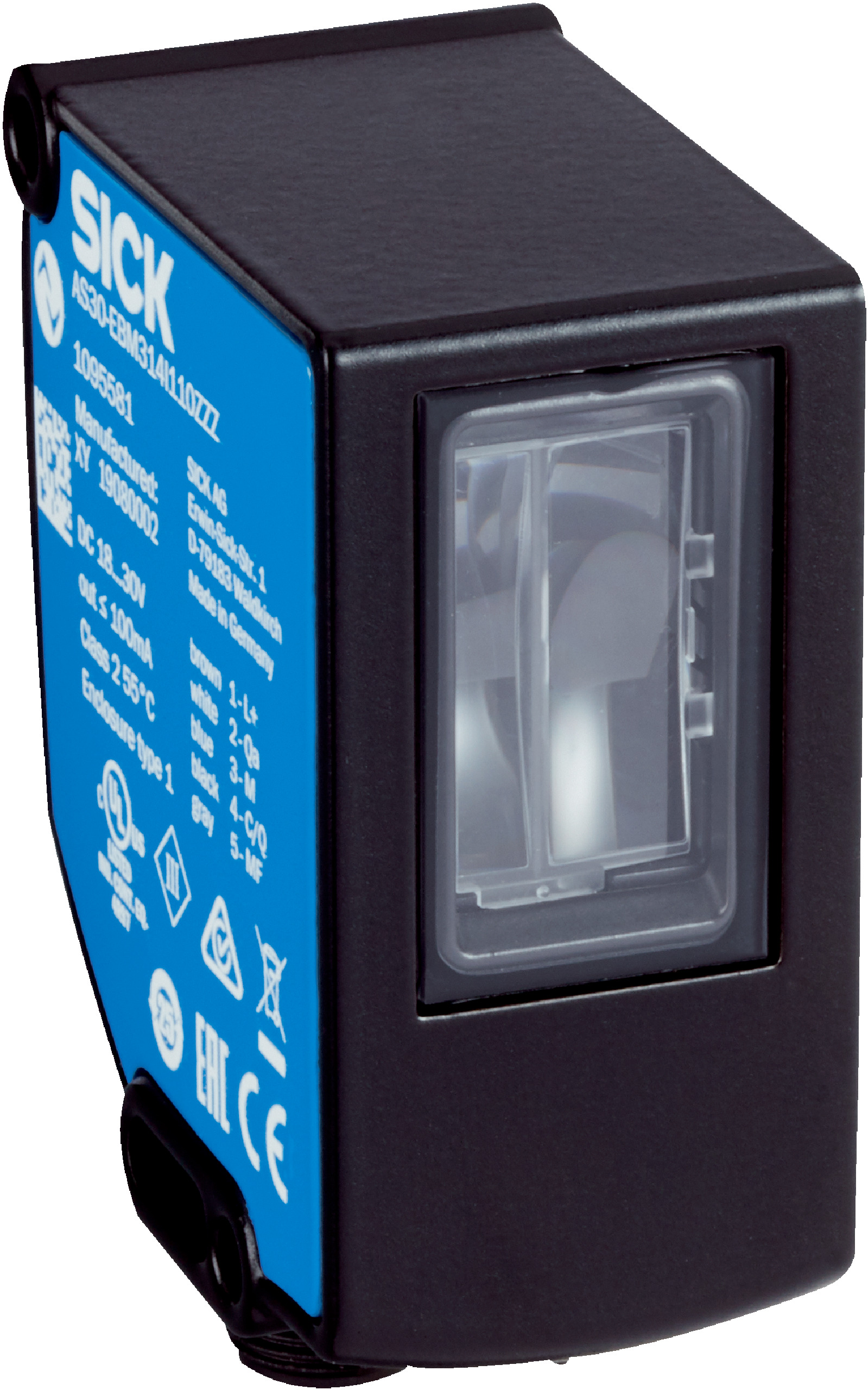

Proximity Sensor AS30-PBM434I110ZZZ | Web Guiding & Positioning | IP67 Rated | by SICK
The AS30-PBM434I110ZZZ proximity sensor excels in web guiding and positioning applications, featuring a sensing distance of up to 100 mm and a robust IP67-rated housing. Ideal for industrial automation, this sensor offers high repeatability and resolution, ensuring precise object detection and measurement in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system
- Functional principle: Web guiding, positioning
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 45 mm
- Minimum detectable object: 1.2 mm
- Light source: White LED
- Wavelength: 400 nm to 700 nm
- Light spot size: 62.4 mm x 12.8 mm
- Repeatability: 0.2 mm
- Linearity: ± 2%
- Resolution: 0.1 mm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA
- Resolution of analog output: 12 bit
- Output rate of analog output: 1 ms
- Output current max: < 100 mA
- Initialization time: 0.48 s
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Glass
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system sensor principle
- Positioning functional principle with web guiding capability
- Sensing distance up to 100 mm
- Working range between 90 mm and 110 mm
- Measurement range of 45 mm
- Minimum detectable object size of 1.2 mm
- White LED light source with wavelength 400 nm to 700 nm
- High repeatability of 0.2 mm and resolution of 0.1 mm
- IO-Link communication interface with teach-in mode for edge and area detection
- Robust zinc diecast housing with IP67 enclosure rating
- Push-pull PNP/NPN switching output and 4-20 mA analog output
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Precision object detection and measurement
- Use in manufacturing and processing lines requiring accurate positioning
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK AS30-PBM434I110ZZZ proximity sensor is available for immediate purchase, ideal for industrial automation and precise positioning applications.
