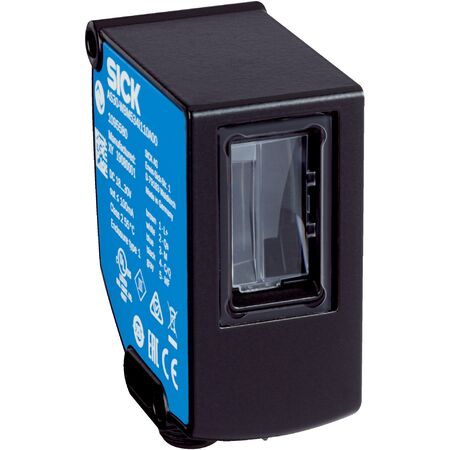

Proximity Sensor AS30-WBM314I220C00 | Web Guiding & Positioning | IP67 Rated | by SICK
The Proximity Sensor AS30-WBM314I220C00 is designed for web guiding and positioning in industrial automation, featuring a sensing distance of up to 25 mm and a high resolution of 1 µm. With its robust IP67-rated zinc diecast housing and LED light source, this sensor ensures reliable performance in demanding environments, making it ideal for precision measurement applications in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning, width and center point measurement
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Minimum detectable object: 0.2 mm
- Light source: White LED, wavelength 400 nm to 700 nm
- Light spot size: 38.9 mm x 11.1 mm
- Repeatability: 0.03 mm
- Linearity: ± 2 %
- Resolution: 1 µm
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast with anti-reflex coating optics
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding, positioning, width and center point measurement
- Sensing distance up to 25 mm with 20 mm working range
- High resolution of 1 µm and repeatability of 0.03 mm
- LED white light source with wavelength 400 nm to 700 nm
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration
- Robust zinc diecast housing with IP67 protection rating
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Width and center point measurement in manufacturing processes
- Precision detection of small objects in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-WBM314I220C00 sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
