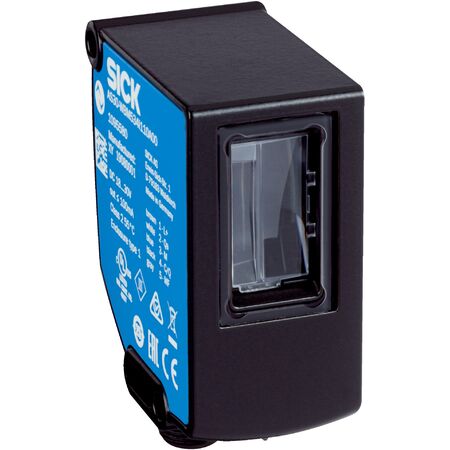

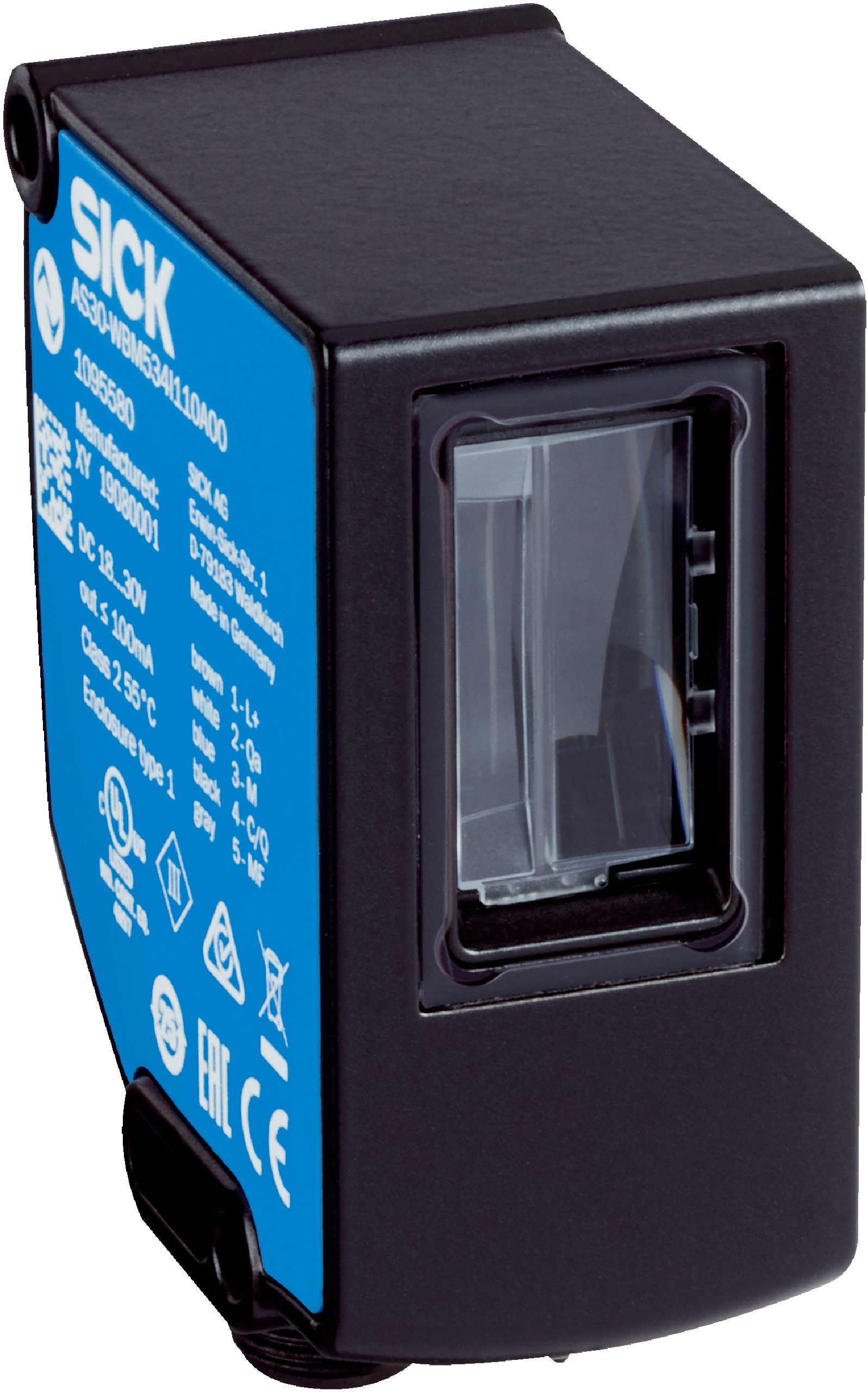

Proximity Sensor AS30-WBM314I220C00 | Web Guiding & Width Measurement | IP67 Rated | by SICK
The AS30-WBM314I220C00 proximity sensor excels in web guiding and width measurement, making it ideal for industrial automation applications. With a high resolution of 1 µm and repeatability of 0.03 mm, it ensures precision in material handling and quality control. Its robust IP67-rated zinc diecast housing and LED light source enhance durability and efficiency, making it a reliable choice for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning, width and center point measurement
- Sensing distance: ≤ 25 mm
- Working range: 20 mm to 30 mm
- Measurement range: 30 mm
- Minimum detectable object: 0.2 mm
- Light source: LED, White (400 nm to 700 nm)
- Light spot size: 38.9 mm x 11.1 mm
- Repeatability: 0.03 mm
- Linearity: ± 2 %
- Resolution: 1 µm
- Adjustment: IO-Link, Display
- Teach-in mode: Edge detection, Area detection
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Output current max: < 100 mA
- Connection type: Male connector M12, 5-pin
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding, positioning, width and center point measurement capabilities
- High resolution of 1 µm with repeatability of 0.03 mm
- LED white light source with wavelength 400 nm to 700 nm
- IO-Link communication interface for easy integration and adjustment
- Robust zinc diecast housing with IP67 protection rating
- Push-pull PNP/NPN switching outputs and 4 mA to 20 mA analog output
- Operating temperature range from -10 °C to +55 °C
- Short initialization time of 0.48 seconds
