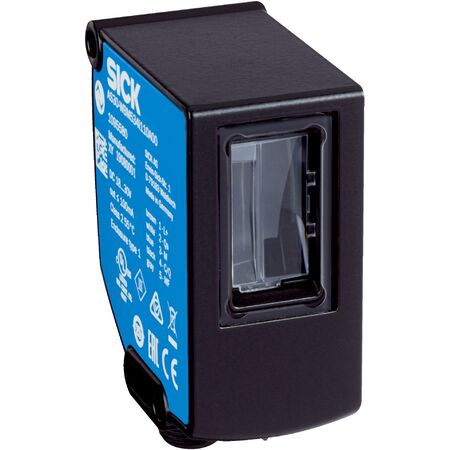

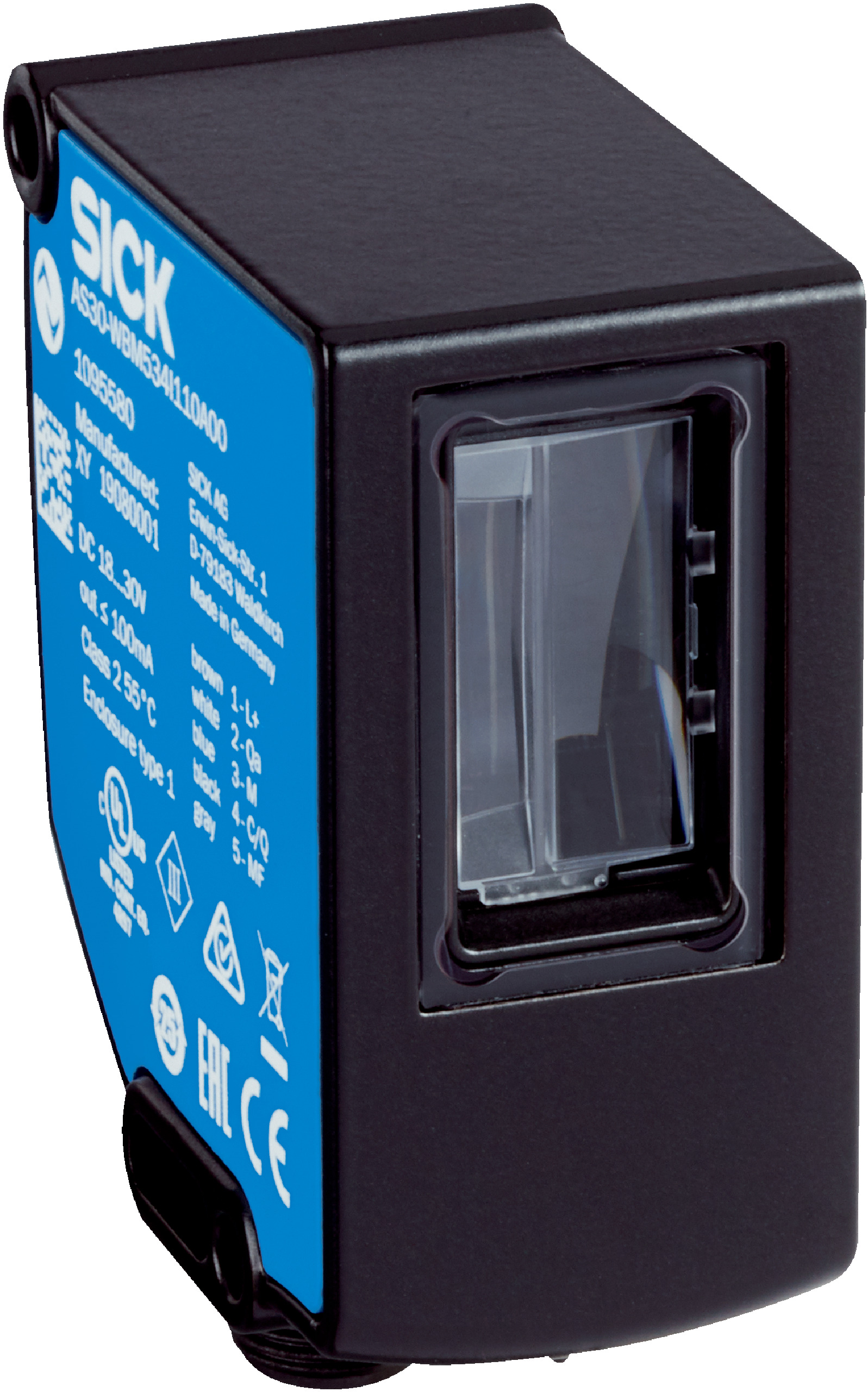

Proximity Sensor AS30-WBM534I220A00 | Web Guiding & Width Measurement | IP67 Rated | by SICK
The AS30-WBM534I220A00 Proximity Sensor excels in web guiding and width measurement, making it ideal for industrial automation applications. With a high resolution of 1 µm and a repeatability of 0.05 mm, this sensor ensures precision in material handling and quality control. Its robust IP67-rated zinc diecast housing and LED light source enhance durability and performance, making it a reliable choice for manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning, width and center point measurement
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 50 mm
- Minimum detectable object: 0.5 mm
- Light source: White LED, wavelength 400 nm to 700 nm
- Light spot size: 62.5 mm x 13.2 mm
- Repeatability: 0.05 mm
- Linearity: ± 2%
- Resolution: 1 µm
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate of analog output: 1 ms
- Output current max: < 100 mA
- Connection type: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Optics material: Anti-reflex coating
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: According to IEC 60068
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding, positioning, width and center point measurement capabilities
- High resolution of 1 µm and repeatability of 0.05 mm
- LED white light source with wavelength 400 nm to 700 nm
- Robust zinc diecast housing with IP67 protection rating
- IO-Link communication interface for easy integration and adjustment
- Push-pull switching output (PNP/NPN) and 4 mA to 20 mA analog output
- Short initialization time of 0.48 seconds
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connection and sensor alignment.
Applications
- Web guiding and positioning in industrial automation
- Width and center point measurement in manufacturing processes
- Precision detection in material handling and quality control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable zinc diecast housing extends product lifespan, reducing waste
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-WBM534I220A00 sensor is available for immediate purchase, ideal for industrial automation and precision measurement applications.
