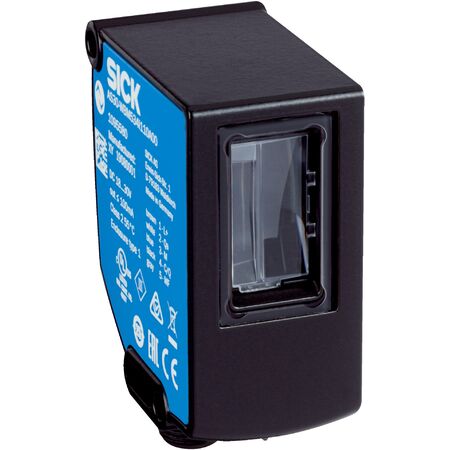

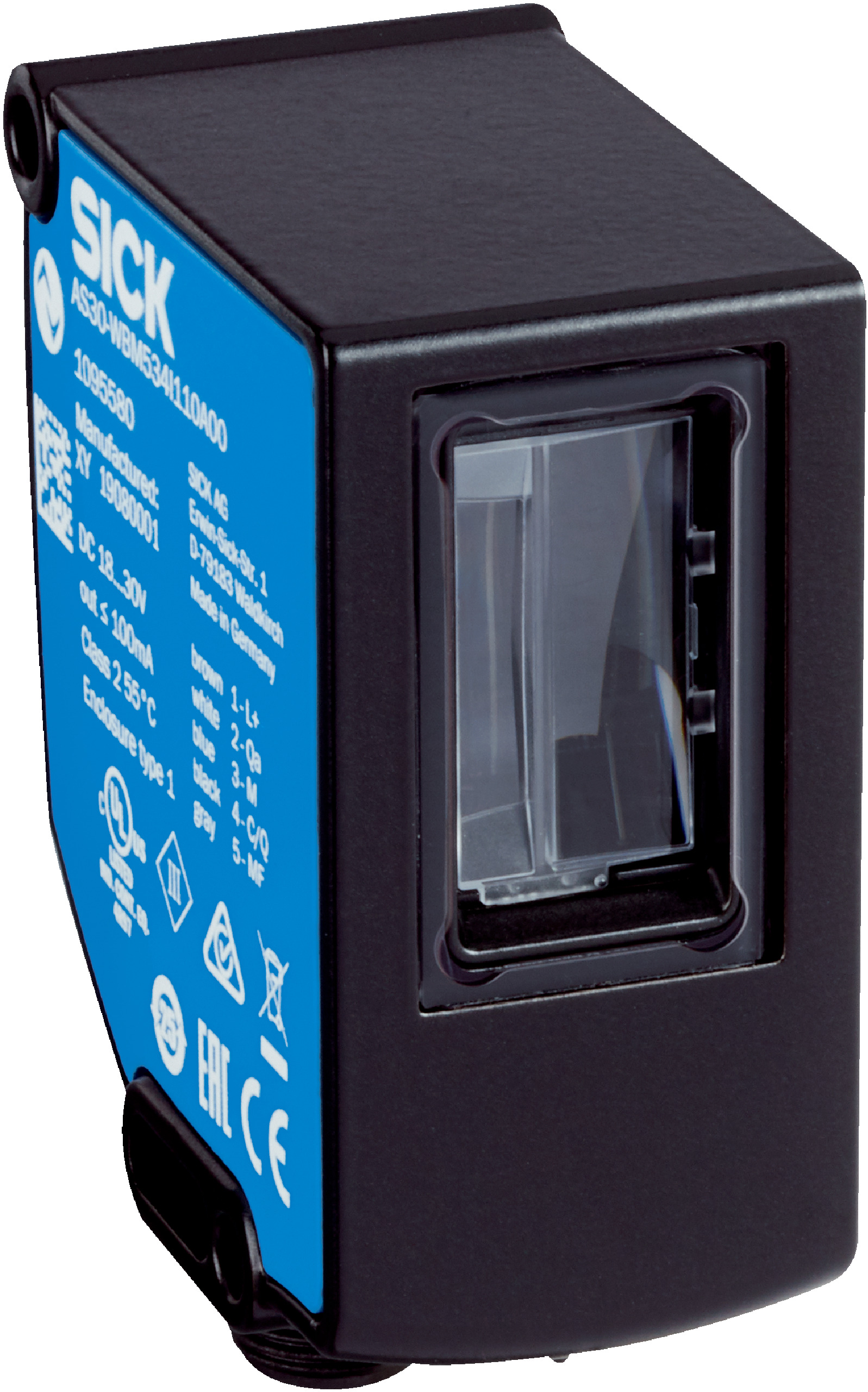

Proximity Sensor AS30-WBM534I220C00 | Reflector Mode | IP67 Rated | High Resolution 1 µm | by SICK
The Proximity Sensor AS30-WBM534I220C00 is designed for web guiding and positioning in industrial automation, featuring a reflector mode for accurate width and center point measurement. With a sensing distance of up to 100 mm and a high resolution of 1 µm, this sensor is perfect for manufacturing processes requiring precise object detection and measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Proximity system, Reflector mode
- Functional principle: Web guiding, positioning, width and center point measurement
- Sensing distance: ≤ 100 mm
- Working range: 90 mm to 110 mm
- Measurement range: 30 mm
- Minimum detectable object: 0.5 mm
- Light source: LED, White (400 nm to 700 nm)
- Light spot size: 62.5 mm x 13.2 mm
- Repeatability: 0.05 mm
- Linearity: ± 2 %
- Resolution: 1 µm
- Supply voltage: 18 V to 30 V
- Current consumption: < 3.1 W
- Switching frequency: 500 Hz
- Switching output: Push-pull PNP/NPN
- Analog output: 4 mA to 20 mA, 12 bit resolution
- Output rate: 1 ms
- Connection: Male M12, 5-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Zinc diecast
- Operating temperature: -10 °C to +55 °C
- Dimensions (H x L x W): 62mm x 52mm x 31mm
- Weight: 0.25 kg
Key Features
- Proximity system with reflector mode
- Web guiding, positioning, width and center point measurement
- Sensing distance up to 100 mm with 30 mm measurement range
- High resolution of 1 µm and repeatability of 0.05 mm
- LED white light source with wavelength 400 nm to 700 nm
- IP67 rated zinc diecast housing with anti-reflex coated optics
- Push-pull PNP/NPN switching output and 4 mA to 20 mA analog output
- IO-Link communication interface for easy integration
- Operating temperature range from -10 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Web guiding and positioning in industrial automation
- Width and center point measurement in manufacturing processes
- Reflector mode proximity sensing for object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable zinc diecast housing ensures long product life reducing waste
- Energy-efficient LED light source minimizes power consumption
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK AS30-WBM534I220C00 sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
