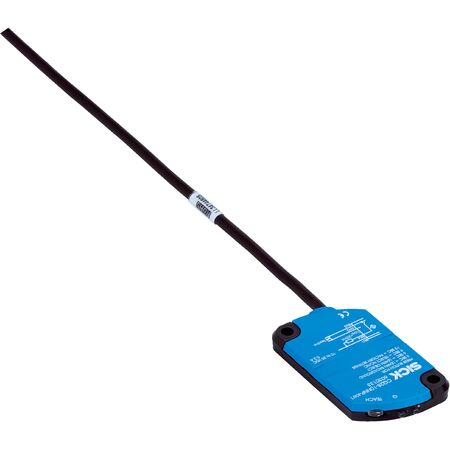

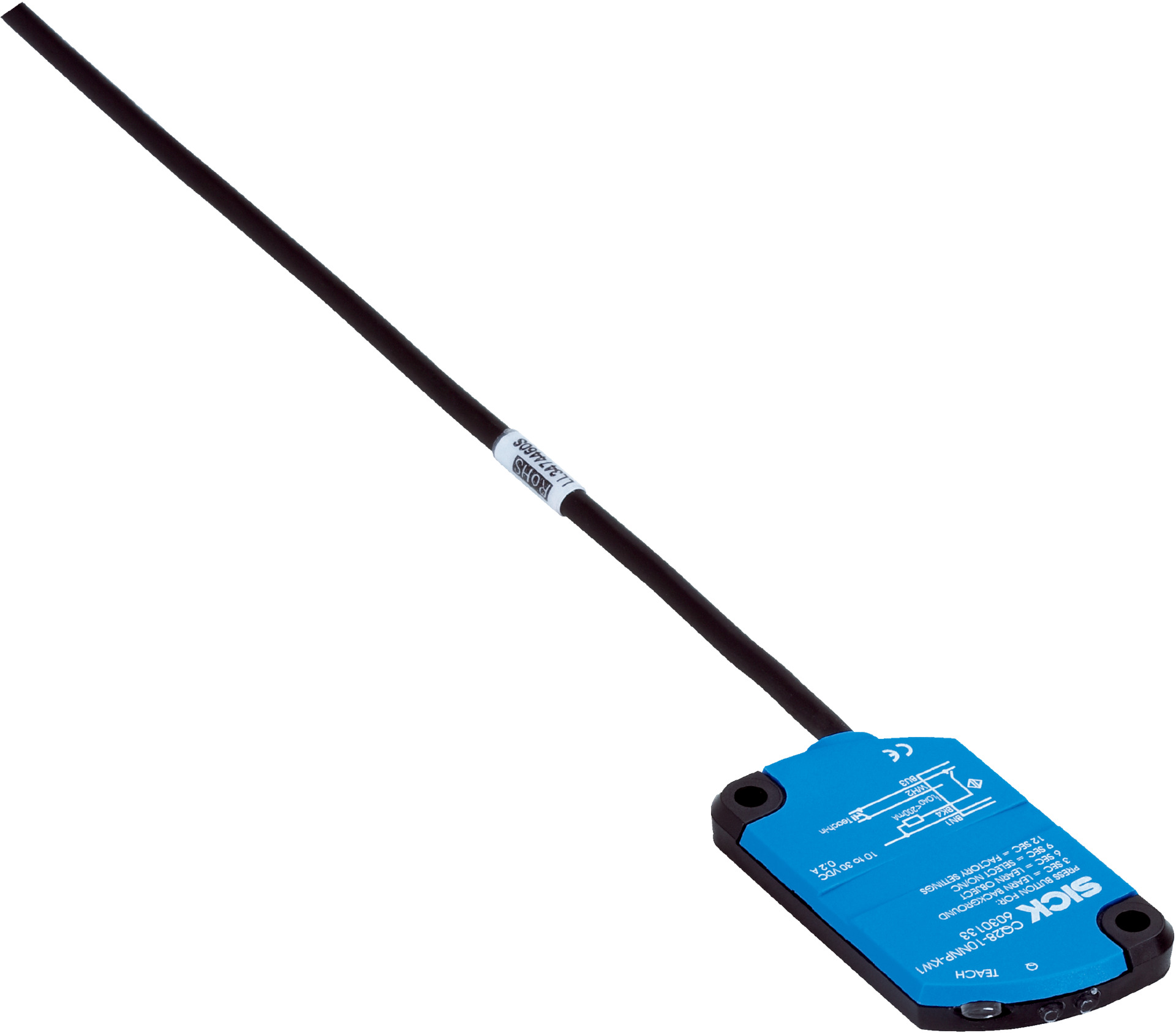

Proximity Sensor CQ28-10NNP-KW1 | IP68 Enclosure | 1mm to 10mm Sensing Range | NPN Output | by SICK
The CQ28-10NNP-KW1 proximity sensor is designed for industrial automation, featuring a robust IP68 enclosure and a sensing range from 1mm to 10mm. With a high switching frequency of 10Hz and selectable NPN output, it's perfect for object detection and safety monitoring in harsh environments. Built for reliability, this sensor ensures optimal performance in manufacturing process control and non-contact sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 10 Hz
- Sensing range Sn: 1 mm to 10 mm
- Safe sensing range Sa: 7.2 mm
- Output function: Normally Closed (NC) or Normally Open (NO)
- Electrical wiring: DC 4-wire
- Connection type: Cable, 4-wire, 2 m
- Enclosure rating: IP68
- Housing material: Plastic, PBT
- Operating temperature: -20°C to +85°C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Short-circuit protection: Yes
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- NPN switching output with selectable NC or NO output function
- 4-wire DC electrical wiring with 2 m cable
- High switching frequency of 10 Hz
- Short-circuit protection and shock/vibration resistance
- Wide ambient operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and mounting for optimal sensor performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient DC 4-wire design
- Robust design supports long operational life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ28-10NNP-KW1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
