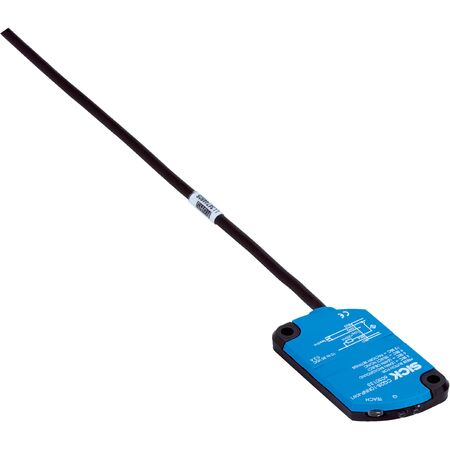

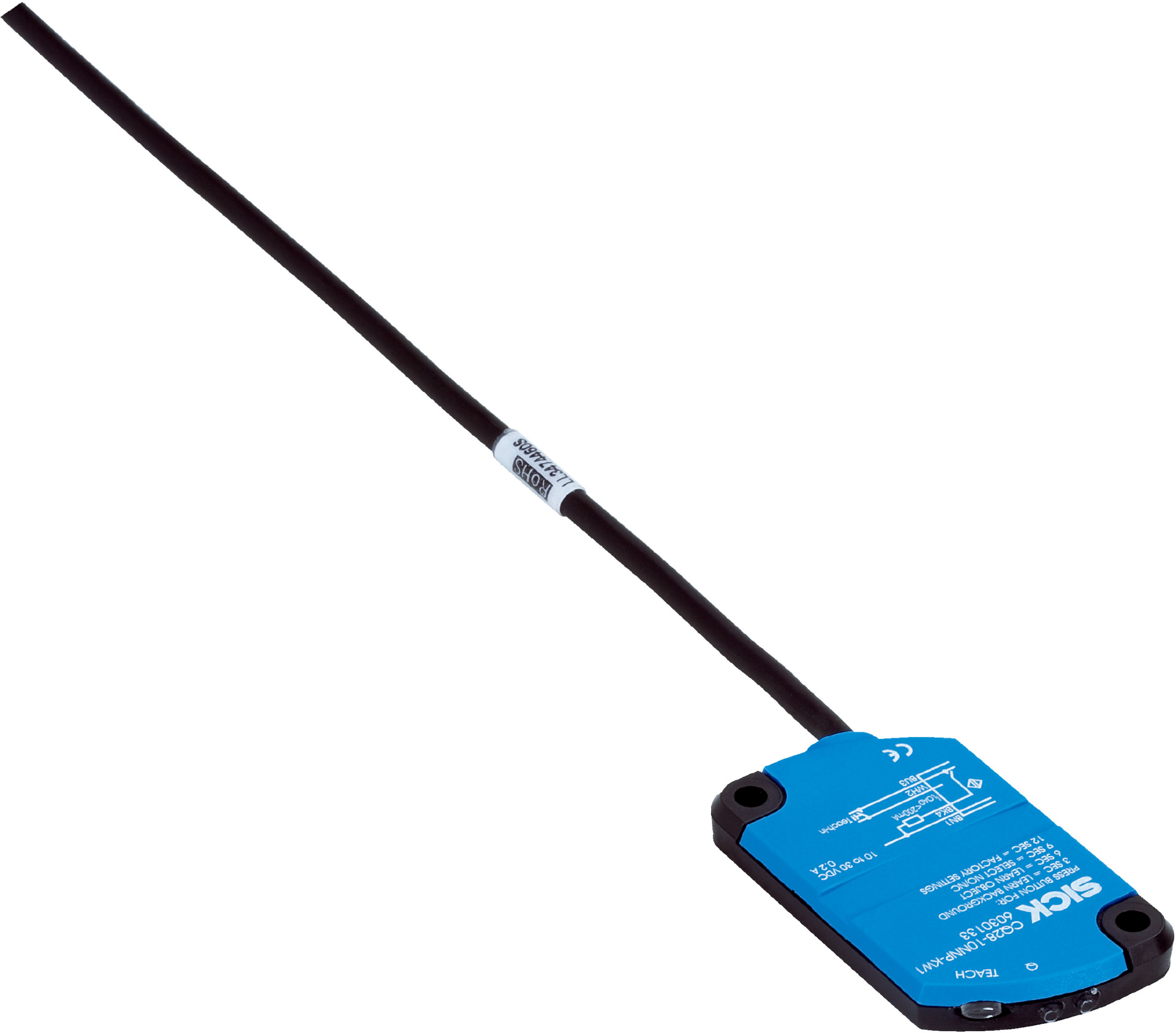

Proximity Sensor CQ28-10NNP-KW1S01 | IP68 Enclosure | NPN Output | 10 Hz Switching Frequency | by SICK
The CQ28-10NNP-KW1S01 proximity sensor is designed for industrial automation, featuring an IP68 enclosure for robust protection and a sensing range of 1 mm to 10 mm. With a high switching frequency of 10 Hz and selectable NPN output, it's perfect for object detection and safety monitoring in various applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Switching frequency: 10 Hz
- Voltage drop: ≤ 2.5 V DC
- Switching output: NPN, selectable NC or NO
- Connection type: Cable with M12, 3-pin connector, 2 m length
- Enclosure rating: IP68
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Ambient operating temperature: -20°C to +85°C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- Short-circuit protection: Yes
- Ripple: ≤ 10%
- Time delay before availability: ≤ 300 ms
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- NPN switching output with selectable NC or NO output function
- Cable with M12 3-pin connector, 2 meters length
- High switching frequency of 10 Hz
- Short-circuit protection and shock/vibration resistance
- Wide ambient operating temperature range from -20°C to +85°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-flush mounting sensing applications
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low current consumption of 12 mA supports energy-efficient operation
- Robust design minimizes electronic waste through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CQ28-10NNP-KW1S01 proximity sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
