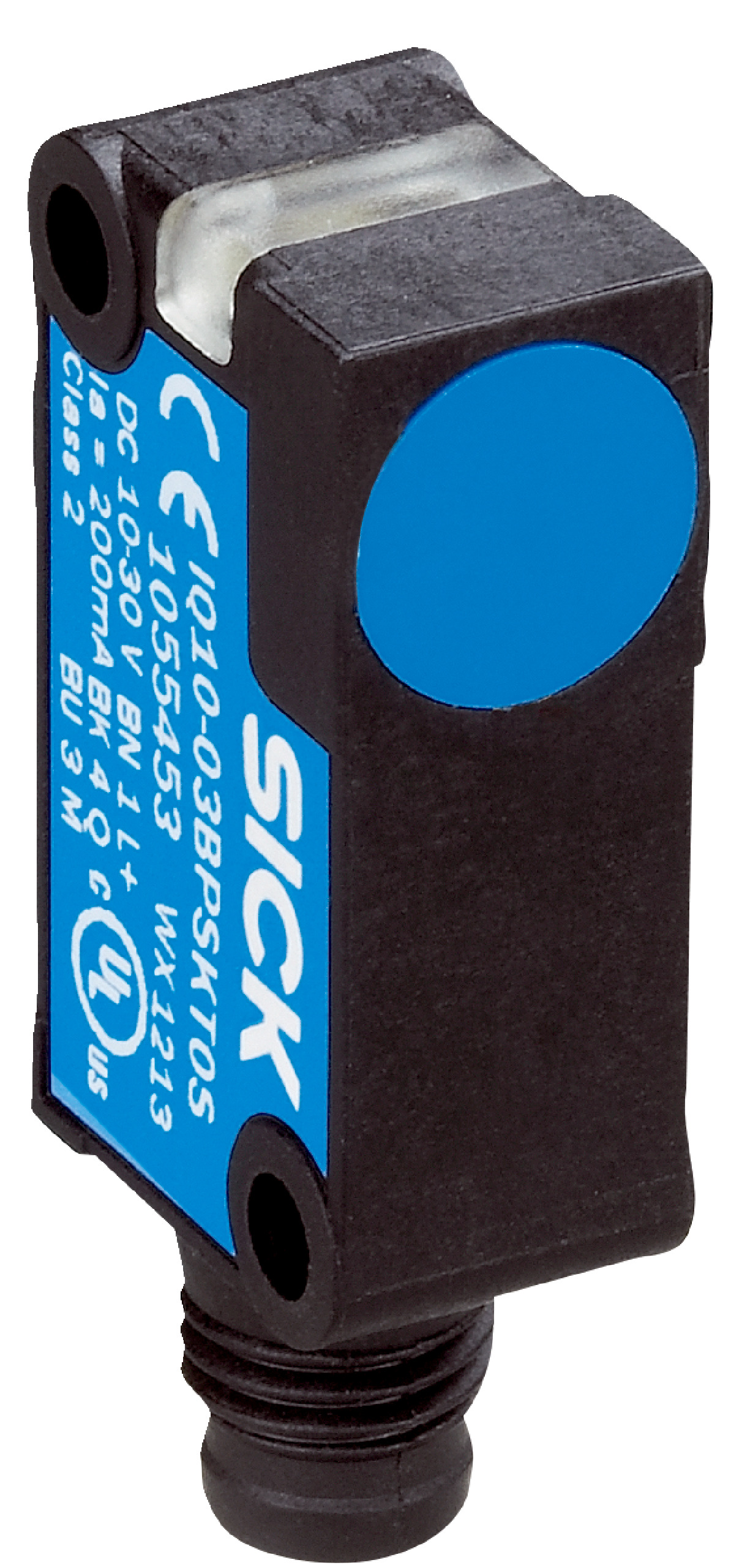

Proximity Sensor | Rectangular IP68 Enclosure | 6mm Sensing Range | 2000Hz Switching Frequency | by SICK
The Proximity Sensor with a rectangular IP68 enclosure is designed for reliable object detection in industrial automation. With a sensing range of 6 mm and a high switching frequency of 2,000 Hz, it ensures fast and accurate performance. Ideal for harsh environments, this sensor is perfect for non-contact switching in machinery and position sensing on manufacturing lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Rectangular plastic VISTAL®
- Sensing range Sn: 6 mm
- Safe sensing range Sa: 4.86 mm
- Installation type: Non-flush
- Switching frequency: 2,000 Hz
- Connection type: Cable, 3-wire, 6 m PVC cable
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 3 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: 10 mA
- Cable diameter: Ø 3.7 mm
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: ≤ 1 Nm
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 rated enclosure for dust and water protection
- Non-flush installation type with 6 mm sensing range
- High switching frequency of 2,000 Hz for fast response
- PNP normally open switching output with 3-wire DC electrical wiring
- Shock and vibration resistant up to 30 g and 10-55 Hz
- Cable connection with 6 m PVC cable and 0.25 mm² conductor size
- Short-circuit and power-up pulse protection included
- Wide operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor mounting to ensure proper operation and safety.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Harsh environment sensing with IP68 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 housing reduces need for frequent replacements, minimizing waste
- Low power consumption with efficient DC 3-wire design
- Robust design reduces downtime and resource use in industrial applications
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

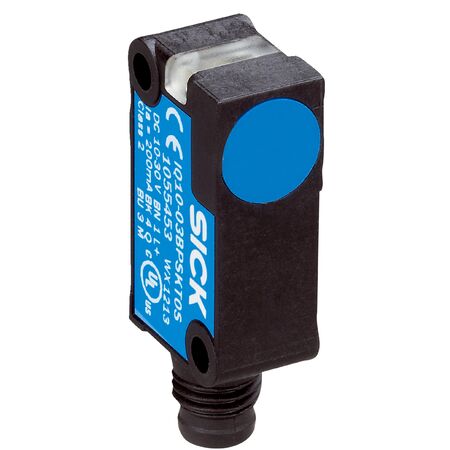

The SICK IQ10-06NPSKWDSS07 proximity sensor is available for immediate purchase, ideal for industrial automation and machinery sensing applications.
