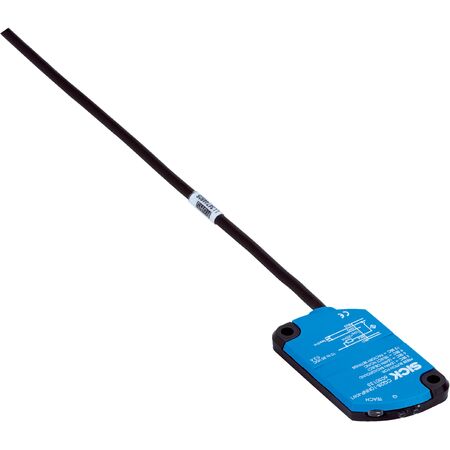

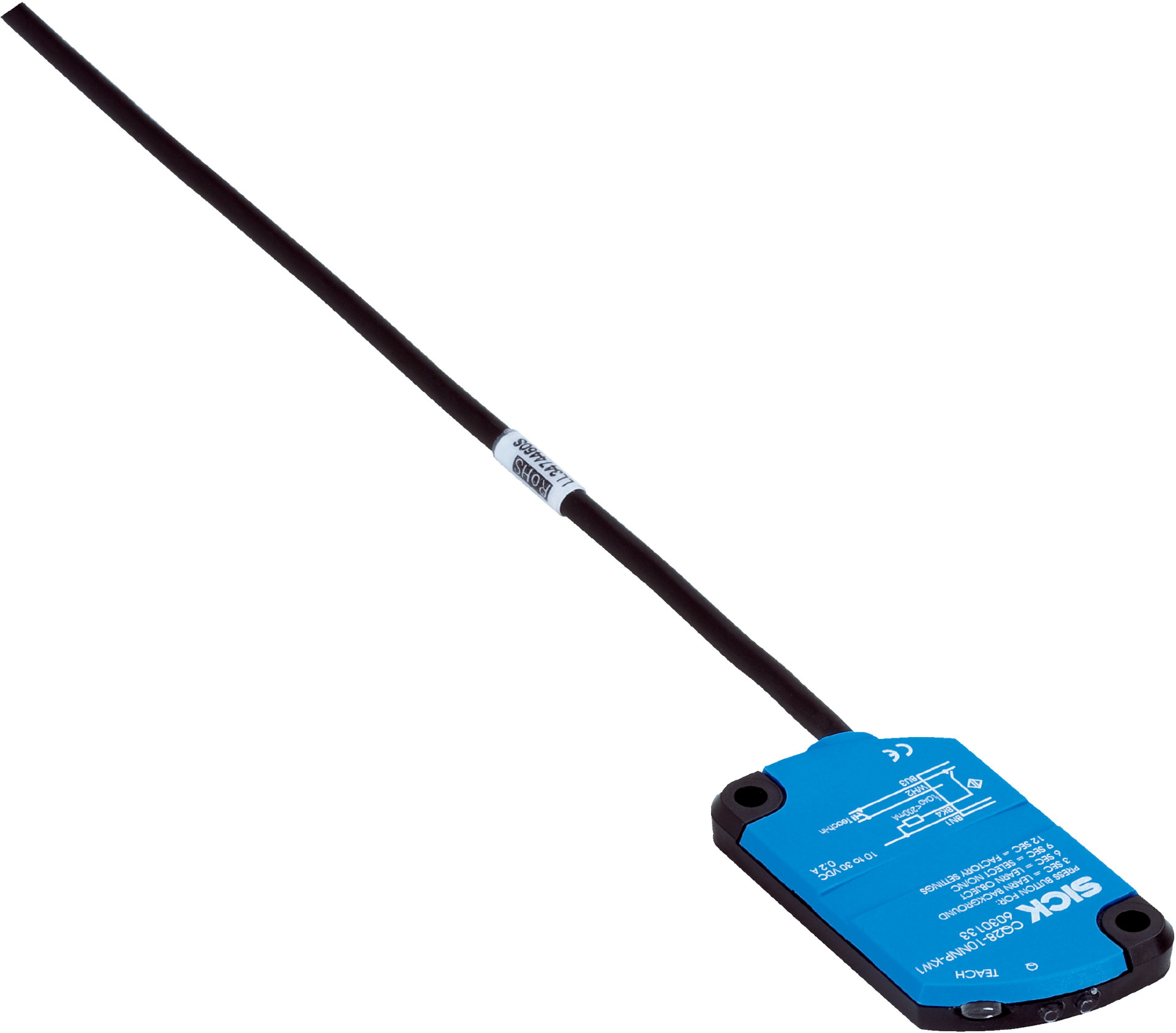

Proximity Sensor CQ28-10NNP-KW1S03 | IP68 Enclosure | NPN Output | 1mm to 10mm Sensing Range | by SICK
The CQ28-10NNP-KW1S03 proximity sensor is designed for industrial automation, featuring a robust IP68 enclosure and a sensing range of 1 mm to 10 mm. With NPN output and a high switching frequency of 10 Hz, it's perfect for object detection and safety monitoring in harsh environments. Built for reliability, this sensor ensures minimal downtime and energy efficiency, making it an ideal choice for manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 10 Hz
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Connection type: Cable with M8 male connector, 4-pin, 0.2 m
- Sensing range (Sn): 1 mm to 10 mm
- Safe sensing range (Sa): 7.2 mm
- Enclosure rating: IP68
- Housing material: Plastic, PBT
- Operating temperature: -20 °C to +85 °C
- Storage temperature: -40 °C to +85 °C
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Adjustment: Sensitivity via teach-in button
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- NPN switching output with normally open (NO) function
- Cable with M8 male connector, 4-pin, 0.2 m length
- High switching frequency of 10 Hz
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor calibration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Non-contact sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements, minimizing waste
- Low current consumption (12 mA) contributes to energy efficiency
- Robust design reduces downtime and resource use in maintenance
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK CQ28-10NNP-KW1S03 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
