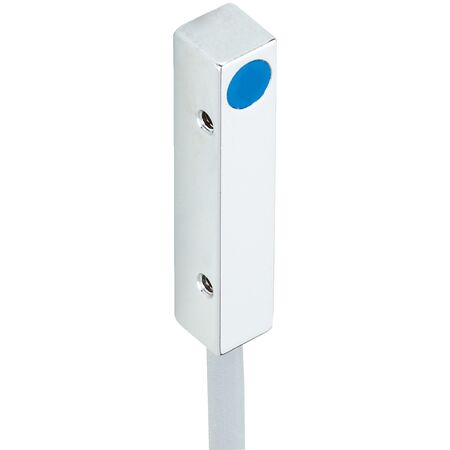

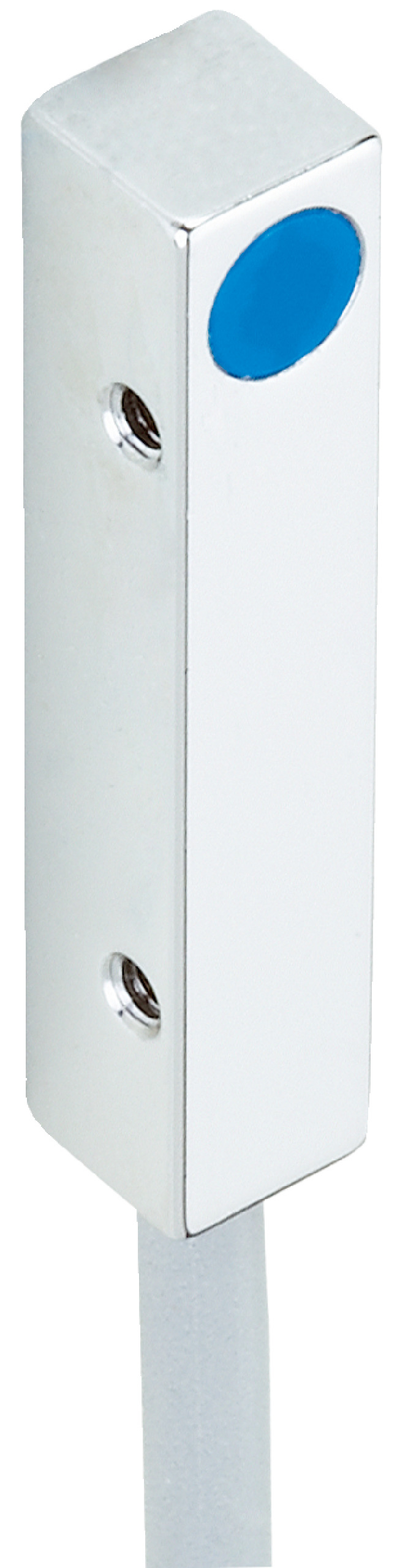

Proximity Sensor IQ05-0B8PS-ZUP | IP67 Rated | PNP Output | 5,000 Hz Switching Frequency | by SICK
The Proximity Sensor IQ05-0B8PS-ZUP is designed for industrial automation, featuring a robust IP67 rated enclosure and a high switching frequency of 5,000 Hz. With a sensing range of 0.8 mm and a durable brass housing, this sensor is perfect for precise object detection in manufacturing lines and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- Cable with M8 connector, 3-pin, 0.2 m length
- Electrical wiring: DC 3-wire
- Switching output: PNP, normally open
- Enclosure rating: IP67
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- MTTFD: 186 years
- Mission time: 20 years
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass housing with chromium plating
- Flush installation type
- Sensing range of 0.8 mm with safe sensing range of 0.648 mm
- High switching frequency of 5,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor installation standards to ensure proper flush mounting and electrical connections.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IQ05-0B8PS-ZUP proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise and reliable object detection.
