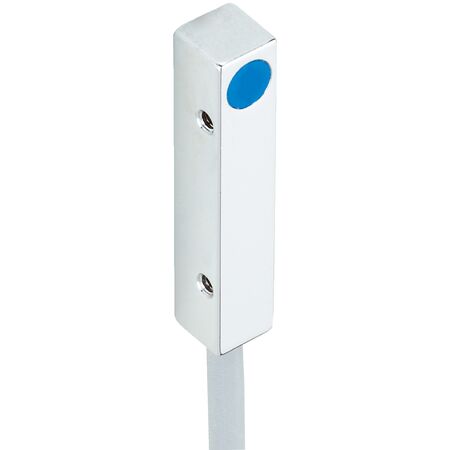

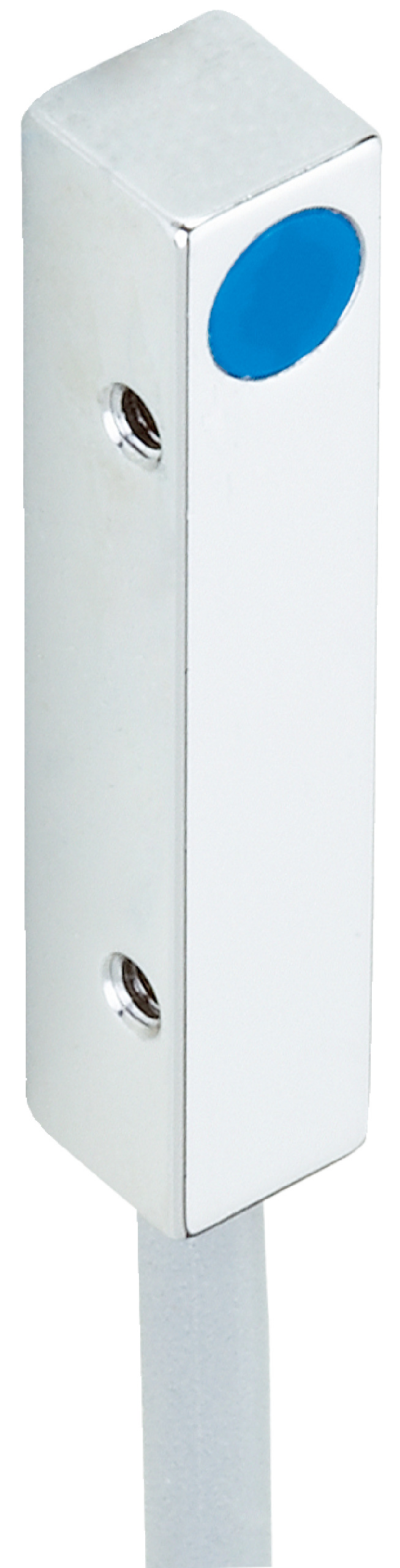

Proximity Sensor IQ05-1B5NS-ZU1 | NPN Normally Open | IP67 Rated | 3,000 Hz Switching Frequency | by SICK
The IQ05-1B5NS-ZU1 proximity sensor is designed for industrial automation, featuring a robust brass housing and a plastic POM sensing face. With an IP67 rating for dust and water protection, it operates effectively in harsh environments. Ideal for machine safety and control systems, this sensor offers a high switching frequency of 3,000 Hz, ensuring precise object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: NPN normally open (NO)
- Switching frequency: 3,000 Hz
- Voltage drop: ≤ 2 V
- Ripple: ≤ 20%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1.5%
- Continuous current Ia: ≤ 200 mA
- Cable length: 2 m, 3-wire PUR cable
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 to 55 Hz, 1 mm amplitude
- Operating temperature: -25 °C to +70 °C
- Housing material: Brass, chromium-plated
- Sensing face material: Plastic, POM
- Enclosure rating: IP67
- Dimensions (H x L x W): 25mm x 5mm x 5mm
- Weight: 0.1 kg
Key Features
- Rectangular brass chromium-plated housing with plastic POM sensing face
- Flush installation type with IP67 enclosure rating for dust and water protection
- Sensing range of 1.5 mm with safe sensing range of 1.215 mm
- High switching frequency of 3,000 Hz with NPN normally open output
- Cable connection type: 3-wire, 2 m PUR cable
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -25 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper flush mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Machine safety and control systems
- Position sensing in manufacturing lines
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ05-1B5NS-ZU1 proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
