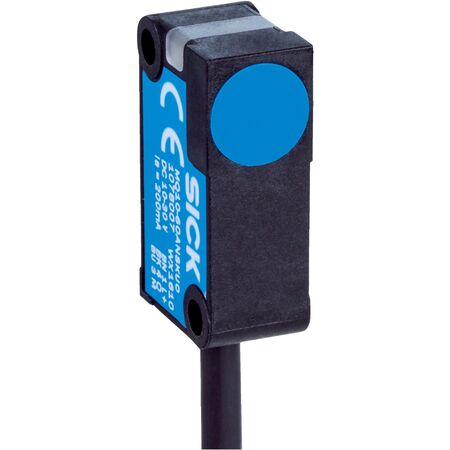

Proximity Sensor MQ10-60 | Rectangular Inductive Design | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Proximity Sensor MQ10-60 is designed for industrial automation, featuring a compact rectangular housing and a sensing range of up to 60 mm. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for manufacturing process control and robotics, this sensor offers durability and low power consumption for energy-efficient operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 5 mA
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Voltage drop: ≤ 1.5 V
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ±10%
- Connection type: Cable with M12 3-pin connector, 0.4 m length
- Cable material: PUR
- Enclosure rating: IP67
- Housing material: Plastic VISTAL®
- Operating temperature: -30 °C to +75 °C
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 28mm x 16mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with compact dimensions
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz for fast response
- PNP normally open switching output
- IP67 rated enclosure for dust and water protection
- Stainless steel connector for enhanced durability
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MQ10-60APSKQDS03 proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
