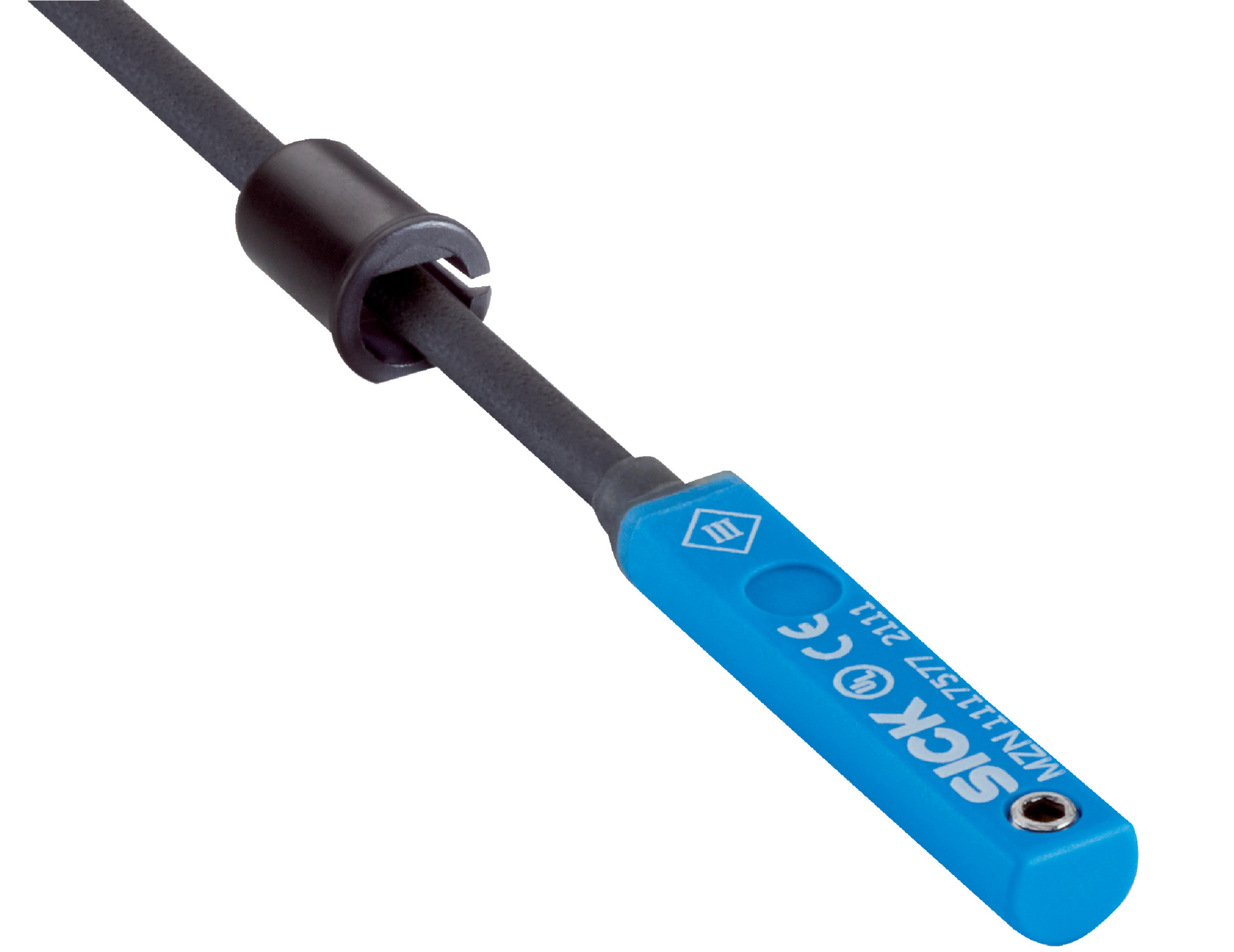

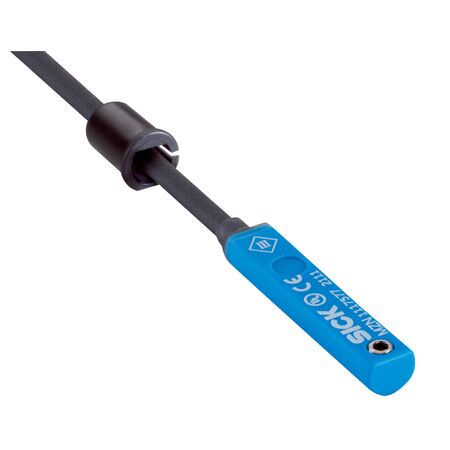

Proximity Sensor MZN-03VPS-KWB | PNP Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The MZN-03VPS-KWB proximity sensor is designed for precise position sensing in industrial automation and pneumatic systems. With a PNP output and an impressive 1000 Hz switching frequency, it ensures reliable performance. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments. This sensor operates within a wide temperature range of -40°C to +80°C, ensuring versatility and durability in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection type: 3-wire cable with wire end ferrule, 5 m length
- Cable diameter: 2.9 mm
- Housing material: Plastic
- Cable material: PVC
- Enclosure rating: IP67
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Electrical wiring: DC 3-wire
- Status indicator: LED
- Reverse polarity and short-circuit protection included
- Operating temperature range: -40°C to +80°C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Dimensions (H x L x W): 15mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- PNP switching output with NO function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -40°C to +80°C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 10 mA reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZN-03VPS-KWB proximity sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
