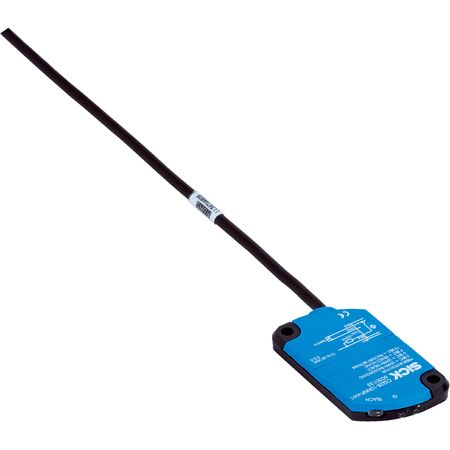

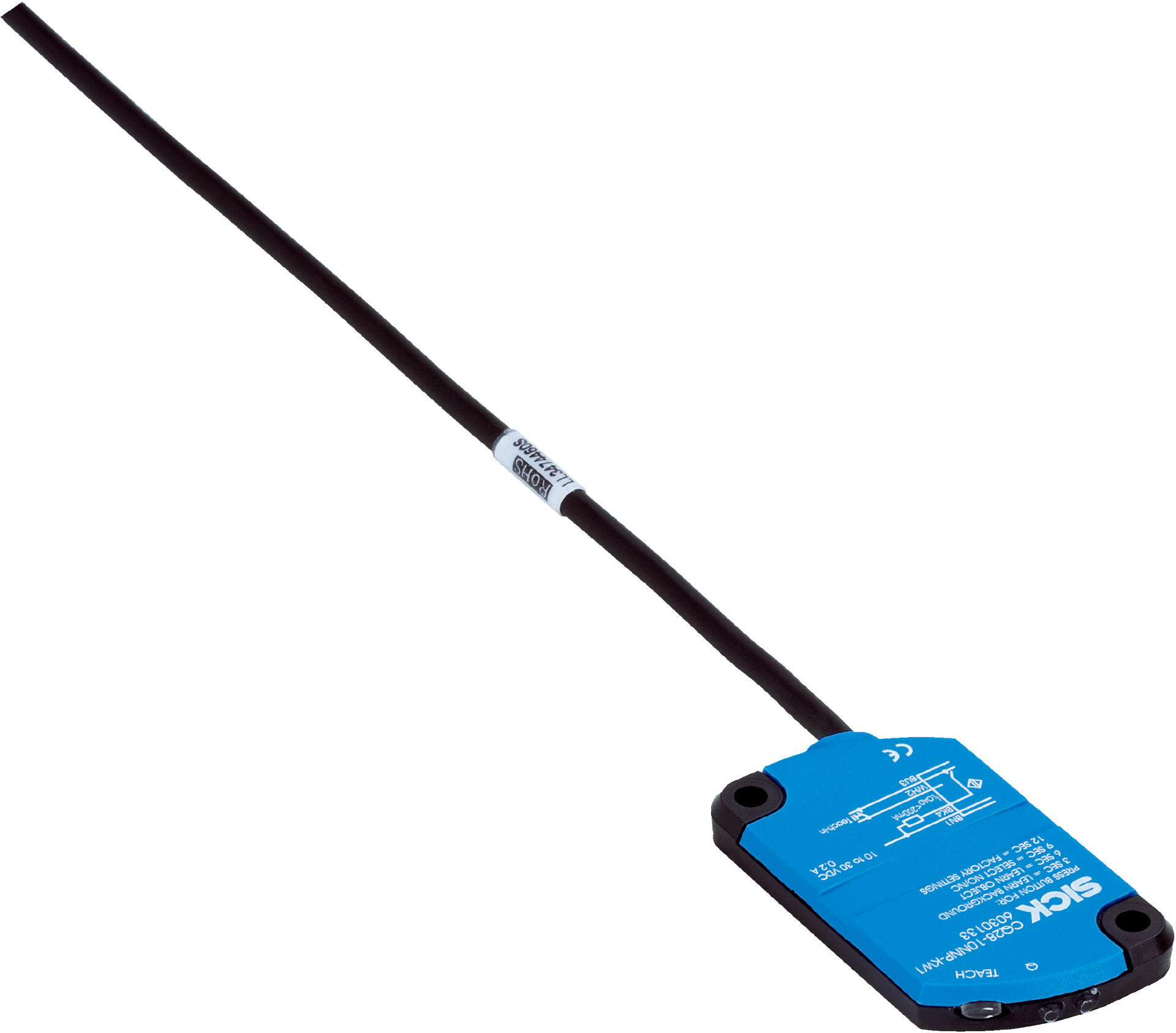

Proximity Sensor PNP CQ28 | IP68 Enclosure | Non-Flush Installation | 10 Hz Switching Frequency | by SICK
The Proximity Sensor PNP CQ28 is designed for industrial automation, featuring an IP68 enclosure for robust protection and a sensing range of 1 mm to 10 mm. With a high switching frequency of 10 Hz and non-flush installation, it's perfect for reliable object detection in manufacturing lines and automation systems. Built for durability and efficiency, this sensor ensures optimal performance in various mounting conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 12 mA
- Voltage drop: ≤ 2.5 V DC
- Switching frequency: 10 Hz
- Switching output: PNP, NC or NO
- Connection type: Cable with M8 male connector, 4-pin, 0.7 m
- Enclosure rating: IP68
- Housing material: Plastic, PBT
- Sensing face material: Plastic
- Short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -20 °C to +85 °C
- Ambient storage temperature: -40 °C to +85 °C
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Dimensions (H x L x W): 46mm x 5.5mm x 28mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with IP68 enclosure rating for robust protection
- Sensing range from 1 mm to 10 mm with safe sensing range of 7.2 mm
- Non-flush installation type suitable for various mounting conditions
- PNP switching output with NC or NO output function
- Cable connection with M8 male connector, 4-pin, 0.7 m length
- High switching frequency of 10 Hz
- Short-circuit protection included
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing lines
- Non-contact switching in machinery
- Automation systems requiring reliable proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements, minimizing waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design reduces environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK CQ28-10NPP-KPDS12 proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications requiring precise and reliable object detection.
