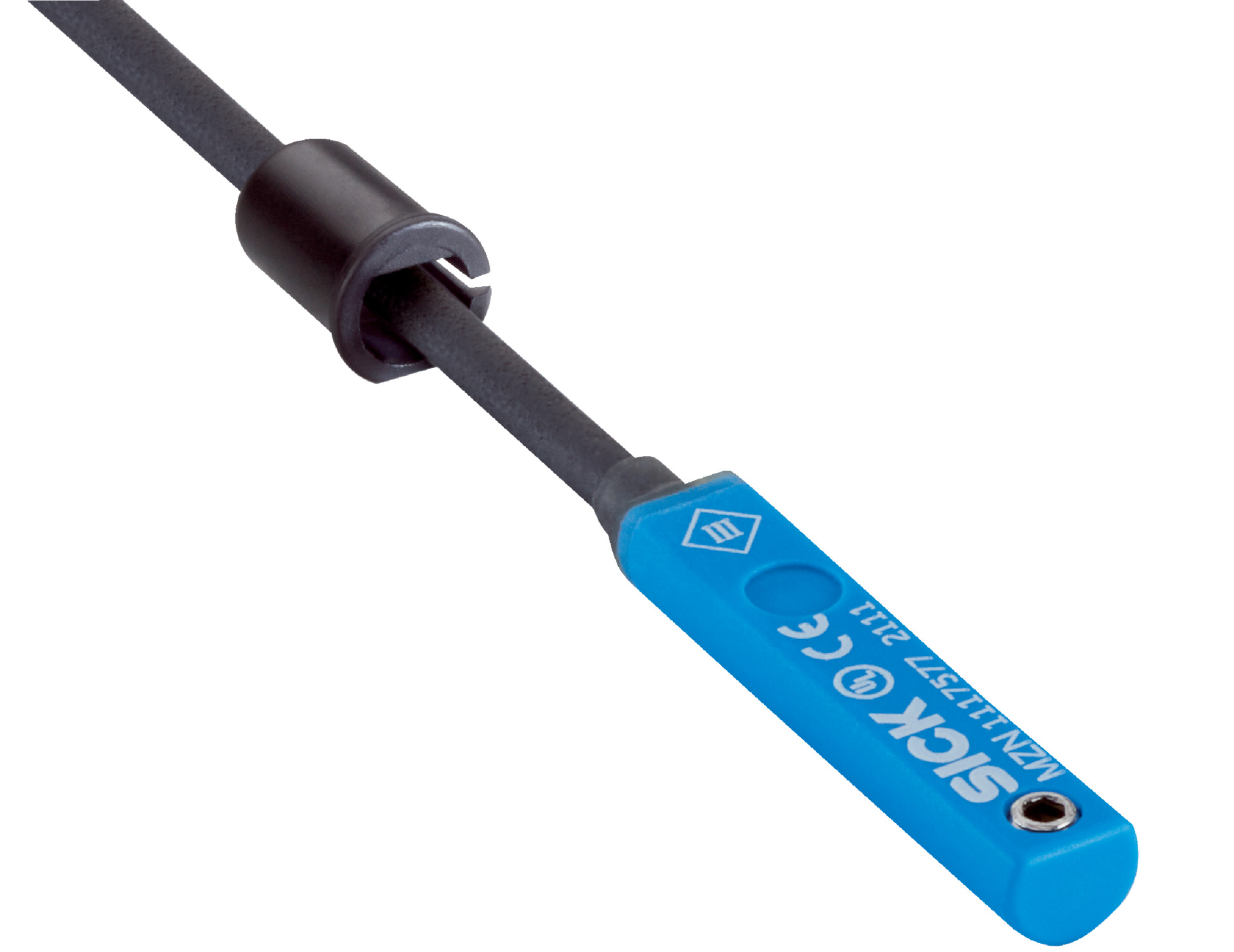

Proximity Sensor PNP | IMI Norgren Compatibility | IP67 Rated | High Switching Frequency | by SICK
The Proximity Sensor PNP is designed for precise cylinder position detection in industrial automation. With an IP67 rated enclosure for dust and water protection, it features a high switching frequency of 1,000 Hz and a wide operating temperature range from -40°C to +80°C. Ideal for pneumatic systems and machine safety applications, this sensor ensures reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 10 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 2.8 mT typical
- Overrun distance: 9 mm typical
- Hysteresis: 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Connection: 3-wire cable, 10 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm amplitude
- EMC compliance: EN 60947-5-2
- Status indicator: LED
- Dimensions (H x L x W): 15mm x 30mm x 15mm
- Weight: 0.1 kg
Key Features
- IMI Norgren slot cylinder type compatibility
- PNP switching output with normally open function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -40°C to +80°C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and compliance with safety standards.
Applications
- Industrial automation for position sensing
- Cylinder position detection in pneumatic systems
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 10 mA reduces energy usage
- Durable plastic housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

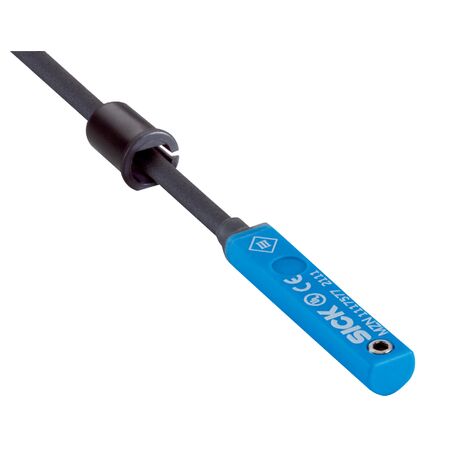

The SICK MZN-03VPS-KWD proximity sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
