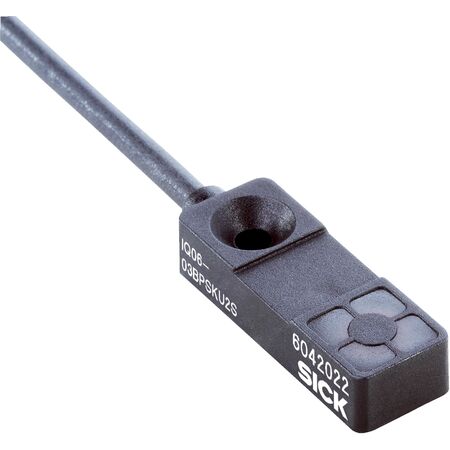

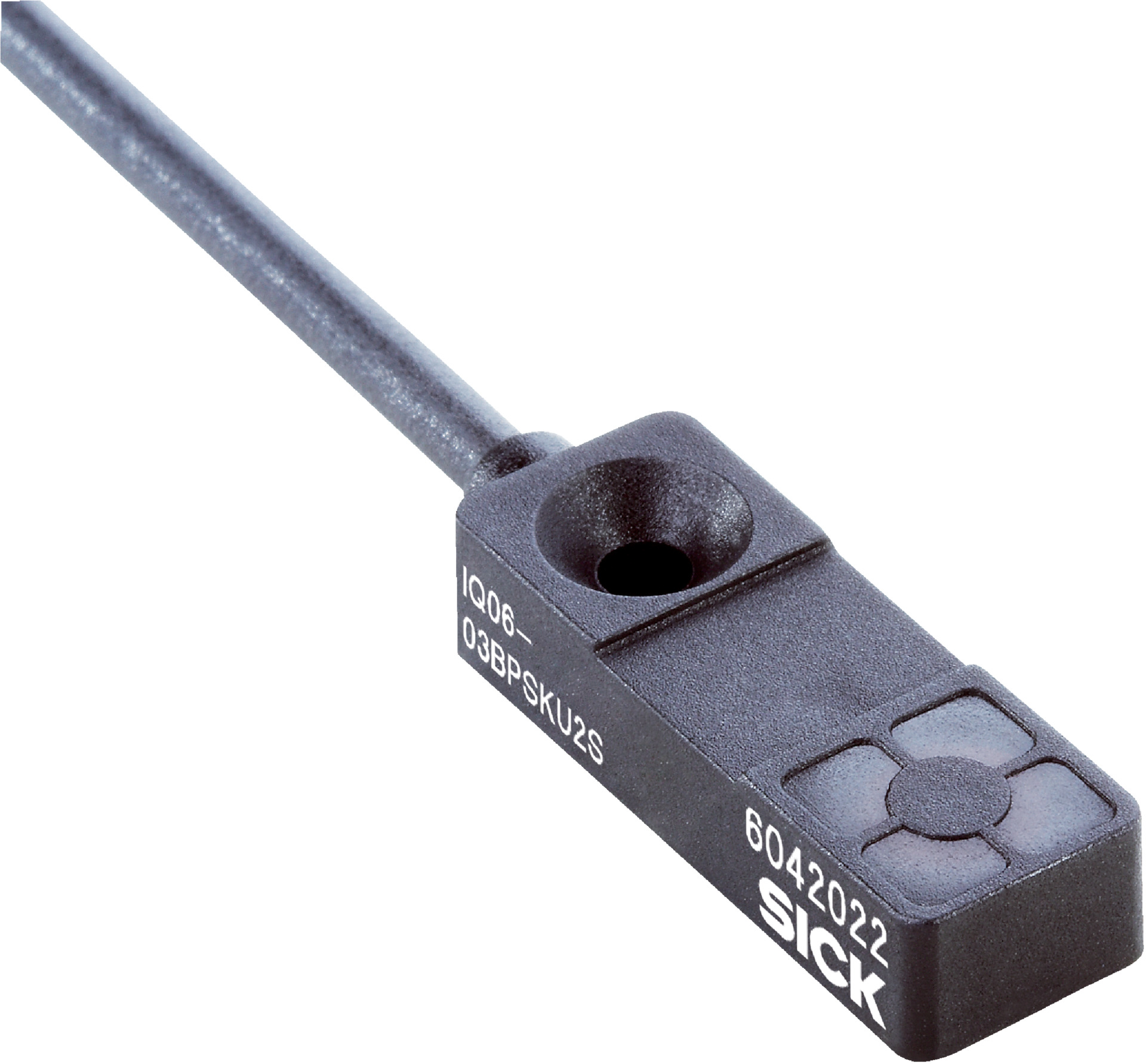

Proximity Sensor | PNP Normally Open | 3mm Sensing Range | IP67 Rated | by SICK
The Proximity Sensor is designed for industrial automation, featuring a PNP normally open output and a sensing range of 3 mm. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Switching output: PNP, normally open
- Switching frequency: 1,000 Hz
- Sensing range (Sn): 3 mm
- Safe sensing range (Sa): 2.43 mm
- Voltage drop: < 1.5 V
- Ripple: ≤ 10%
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 15%
- Reproducibility: ± 1%
- Ambient operating temperature: -25 °C to +70 °C
- Cable: 3-wire, 2 m PUR, 0.14 mm² conductor size, 3 mm diameter
- Enclosure rating: IP67
- Housing material: Plastic PA6
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Short-circuit protection: Yes
- Tightening torque max: 0.6 Nm
- Dimensions (H x L x W): 30mm x 6mm x 10mm
- Weight: 0.1 kg
Key Features
- Rectangular housing with flush installation
- Sensing range of 3 mm with safe sensing range of 2.43 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Short-circuit protection included
- Cable connection: 3-wire, 2 m PUR cable
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 rated housing reduces replacement frequency and waste
- Low power consumption with DC 3-wire electrical wiring
- Robust design minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IQ06-03BPSKU2S proximity sensor is available for immediate purchase, ideal for industrial automation and safety applications.
